FCH 355

Standards

EN 14700 T Z Fe2
TS EN 14700 T Z Fe2
DIN 8555 MF 1-GF-55-P

Properties and Applications

Gas shielded, high alloyed, flux cored wire designed for hardfacing deposit with high hardness. Particularly suited for wearing parts subjected to metal to metal wear (adhesion) and high impact. Weld metal is tough, free of cracks and therefore resistant to shock and impacts. Weld metal deposit is only machinable by grinding or carbide tipped tools. If the base metal has high carbon and low weldability, a tough buffer layer with FCW 30 is recommended before hardfacing. Heat treatment after hardfacing will decrease as-welded hardness.

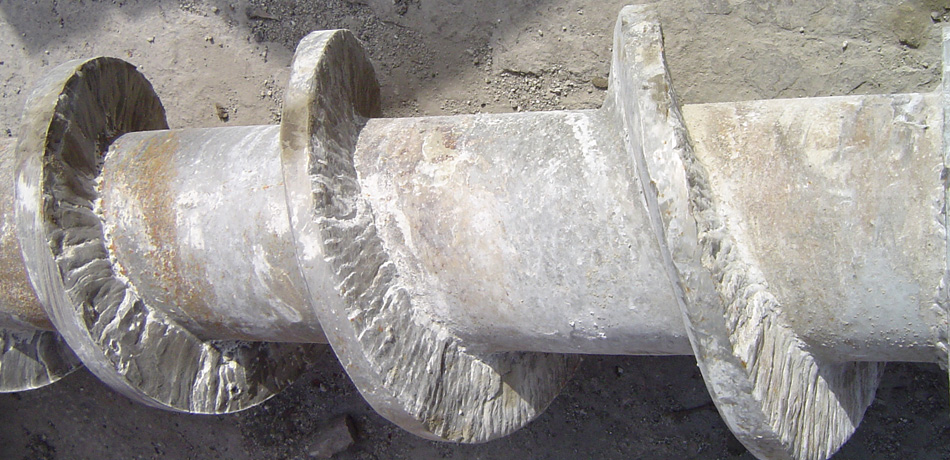

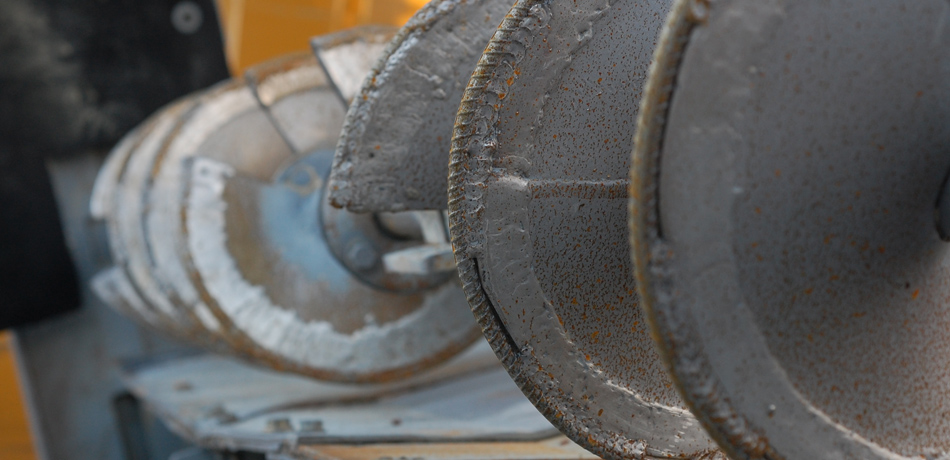

Typical Applications : Hardfacing of feeding screws, conveyors and machine parts in brick and mining industries.
Fch 355 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

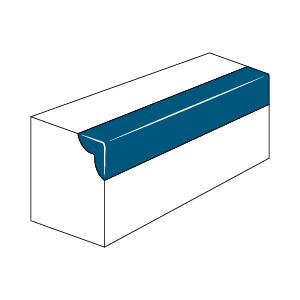

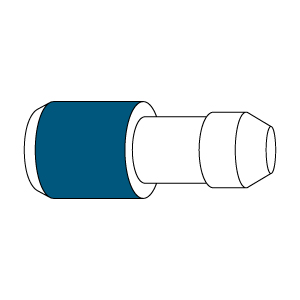

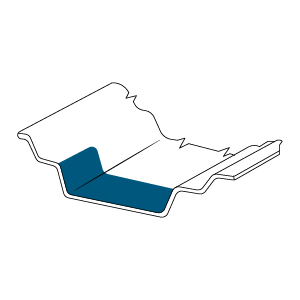

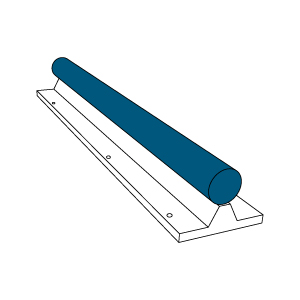

Typical Applications

Fch 355 Model Tipik Uygulamalar Fch 355 Model Tipik Uygulamalar Fch 355 Model Tipik Uygulamalar Fch 355 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrFe
Weld Deposit0.400.750.404.4094.05

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasHardness (HRc)
As weldedC155

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - C1 (%100 CO2) .

Application Information

Welding Positions :
Fch 355 Kaynak Pozisyonu Fch 355 Kaynak Pozisyonu

Polarity:

Fch 355 Kutuplama

Protection Gas:

M21 C1

Welding Parameters & Efficiency :

Diameter (mm)Yığma Oranı(kg/saat)Verimlilik(%)
1.20176.0093
1.60279.0094
2.40499.009257

Packaging Information

Product CodeDiameter (mm)Quantity per BoxKutu Brüt Ağırlığı (kg)Boxes per Outer BoxKoli Ağırlığı (kg)Packaging Type
38002EJAM21.2015 kg15.70115.70Wire Basket Spool (K300MS)
38002GJAM21.6015 kg15.70115.70Wire Basket Spool (K300MS)
38002I2GM22.40250 kg365.001365.00Fiber Drum
38002IXAM22.4025 kg25.80125.80Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
