FCH 356

Standards

EN 14700 T Z Fe8
TS EN 14700 T Z Fe8
DIN 8555 MF 6-GF-55-PT

Properties and Applications

Gas shielded hardfacing flux cored wire, which is developed for hardfacing of parts, subjected to impact, high compressive stresses and metal-to-metal wear. Provides martensitic weld metal with high hardness. Weld metal can be machined by grinding or by diamond cutting bits. It is recommended to apply a buffer layer with FCW 30 on base metals with high carbon and low weldability, before hardfacing. The deposit is heat treatable and forgeable.

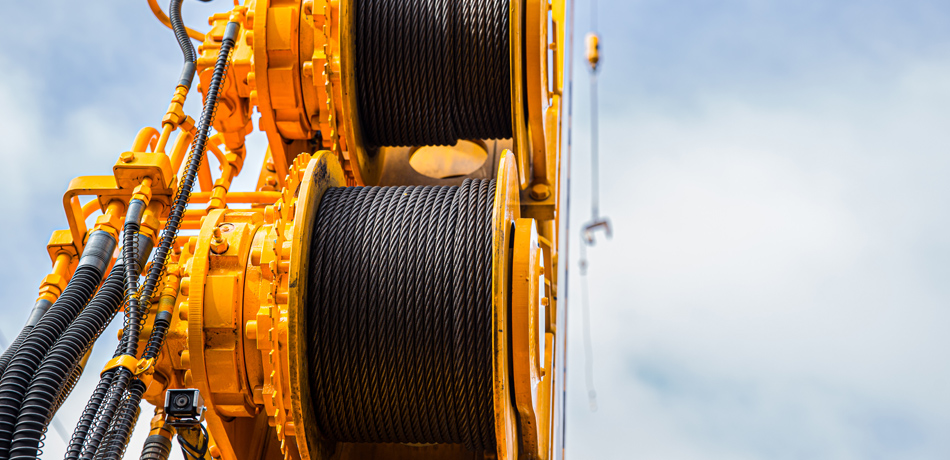

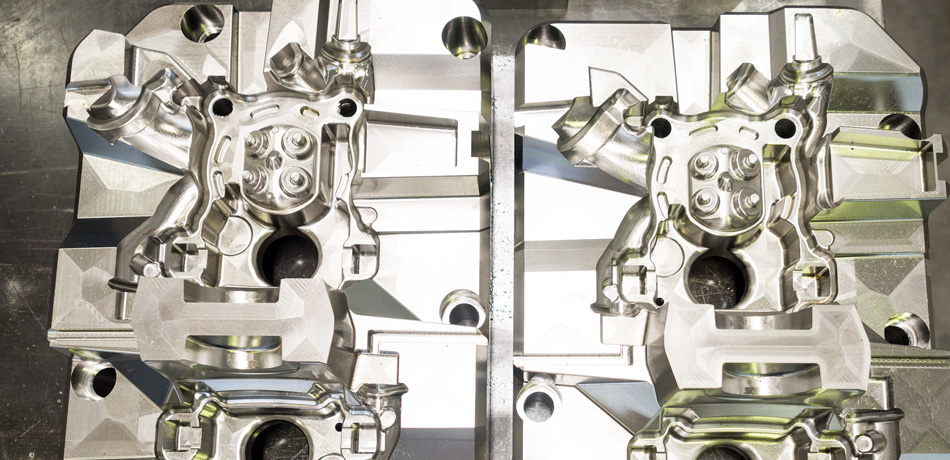

Typical Applications : Suitable for hardfacing of rope and cable sheaves, bed knives, steel mill rollers, crane wheels, forging dies.
Fch 356 Sert Dolgu

Wear Resistance Types


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

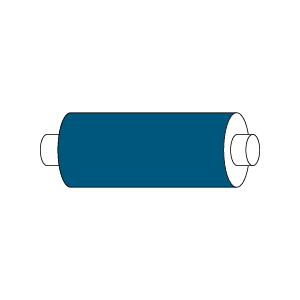

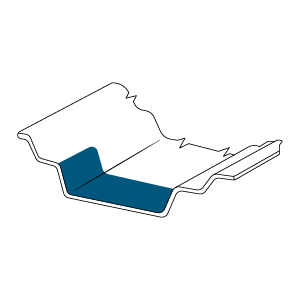

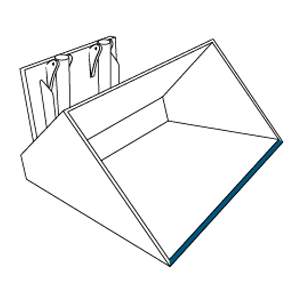

Typical Applications

Fch 356 Model Tipik Uygulamalar Fch 356 Model Tipik Uygulamalar Fch 356 Model Tipik Uygulamalar Fch 356 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMoWFe
Weld Deposit0.400.601.105.701.401.3088.95

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasHardness (HRc)
As weldedC155

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - C1 (%100 CO2) .

Application Information

Welding Positions :
Fch 356 Kaynak Pozisyonu Fch 356 Kaynak Pozisyonu

Polarity:

Fch 356 Kutuplama DC(+)

Protection Gas:

M13 M21 C1

Welding Parameters & Efficiency :

Diameter (mm)Deposition Rate(kg/h)Efficiency(%)
1.204.2497
1.602.2793

Packaging Information

Product CodeDiameter (mm)Weight Of The Box (kg)Boxes Per PackageWeight Of The PackagePackaging Type
38004EJAM21.2015.0115.7Wire Basket Spool (K300MS)
38004GJAM21.6015.0115.7Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
