FCH 360

Standards

EN 14700 T Fe8
TS EN 14700 T Fe8
DIN 8555 MF 6-GF-60-GPT

Properties and Applications

Gas shielded, high alloyed, flux cored wire designed for hardfacing deposit with high hardness. Especially developed for hardfacing of parts subjected to high metal-to-metal wear and moderate impact. Weld metal can retain its hardness at high temperatures, till 600°C. Weld metal can be grinded and machined by diamond tools. Weld metal is resistant to cracking and shall not be welded more then 3 pass. A tough buffer layer with FCW 30 is recommended before hardfacing, if base metal has high carbon and low weldability. Heat treatment after hardfacing will decrease as-welded hardness.

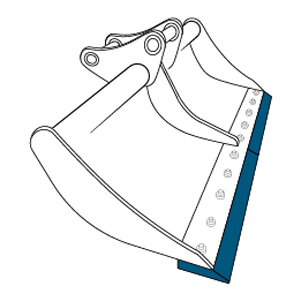

Typical Applications: Hardfacing hot cut offs, shear blades, dies for pressure casting, scraper blades, conveyors, rollers, crusher rolls and worn parts in agricultural equipments.
Fch 360 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

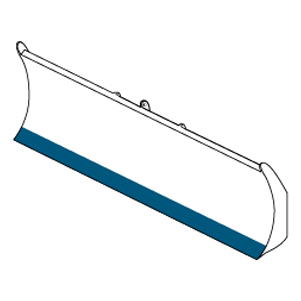

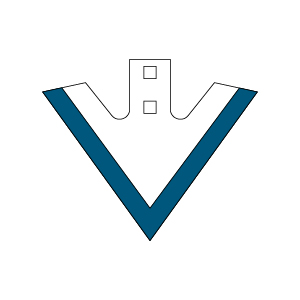

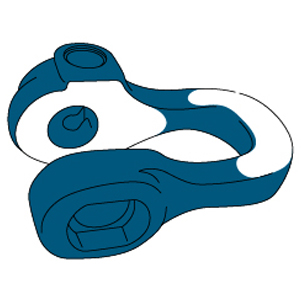

Typical Applications

Fch 360 Model Tipik Uygulamalar Fch 360 Model Tipik Uygulamalar Fch 360 Model Tipik Uygulamalar Fch 360 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMoVFe
Weld Deposit0.600,500.205.600.250.2092.65

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasHardness (HRc)Wear Index
As weldedC15970.2

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - C1 (%100 CO2) .

Application Information

Welding Positions :
Fch 360 Kaynak Pozisyonu Fch 360 Kaynak Pozisyonu

Polarity:

Fch 360 Kutuplama

Protection Gas:

M21 C1

Welding Parameters & Efficiency :

Diameter (mm)Yığma Oranı(kg/saat)Verimlilik(%)
1.20423.00946
1.6053.009203
2.40499.009257

Packaging Information

Product CodeDiameter (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
38003EHAM21.2015 kg15.80115.80Plastic Spool (D300)
38003EJAM21.2015 kg15.70115.70Wire Basket Spool (K300MS)
38003GJAM21.6015 kg15.70115.70Wire Basket Spool (K300MS)
38003IXAM22.4025 kg25.80125.80Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
