FCH 360R

Standards

EN 14700 T Fe8
TS EN 14700 T Fe8
DIN 8555 MF 6-GF-60-GP

Properties and Applications

High alloy and high hardness flux cored wire, especially used for hardfacing welds of parts subject to high metal-to-metal frictional wear and medium impact. The weld metal has high toughness and crack resistance and is resistant to shocks and impacts. The weld metal maintains its hardness at working temperatures up to 600°C. The weld metal can be machined with stone or carbide inserts. For high carbon and low weldability materials, a buffer layer with FCW 30 is recommended before hardfacing. Heat treatment reduces the hardness after welding.

Typical Applications: Hardfacing of hot cutting and stripping blades, die casting molds, separator and shredder blades, conveyors, rollers, crusher rolls, parts of earth-moving machines, bucket lugs and wear parts of agricultural tools.
Fch 360R Sert Dolgu

Wear Resistance Types


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

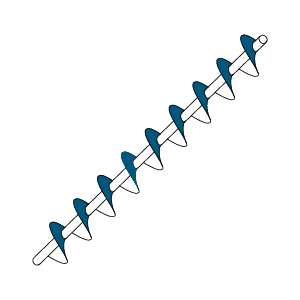

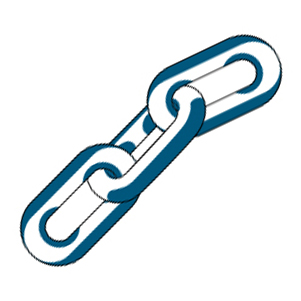

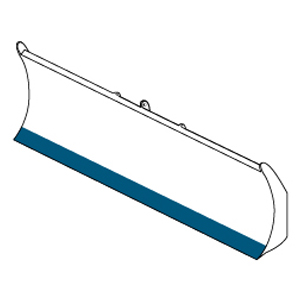

Typical Applications

Fch 360R Model Tipik Uygulamalar Fch 360R Model Tipik Uygulamalar Fch 360R Model Tipik Uygulamalar Fch 360R Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMo
Weld Deposit0,500.601.107.200.85

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasHardness (HRc)
As weldedC157

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - C1 (%100 CO2) .

Application Information

Welding Positions :
Fch 360R Kaynak Pozisyonu Fch 360R Kaynak Pozisyonu

Polarity:

Fch 360R Kutuplama DC(+)

Protection Gas:

C1

Welding Parameters & Efficiency :

Diameter (mm)Deposition Rate(kg/h)Efficiency(%)
1.203.2782
1.603.9380

Packaging Information

Product CodeDiameter (mm)Weight Of The Box (kg)Boxes Per PackageWeight Of The PackagePackaging Type
38009EJAM21.2015.0115.7Wire Basket Spool (K300MS)
38009GJAM21.6015.0115.7Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
