FCH 361

Standards

EN 14700 T Fe8
TS EN 14700 T Fe8
DIN 8555 MF 6-GF-60-GP

Properties and Applications

Gas shielded, hardfacing flux cored wire especially developed for hardfacing of parts subjected to high metal-to-metal friction, mineral abrasion and moderate impact. Weld metal can retain it's hardness at high temperatures, till 600°C. Weld metal can be grinded and machined by diamond tools. A tough buffer layer with FCW 30 is recommended before hardfacing, if base metal has high carbon and low weldability. Heat treatment after hardfacing will decrease as-welded hardness.

Typical Applications : Hardfacing of ceramic moulds, mixer blades, crushers, earth moving equipments, hot cut-offs, shear blades, dies for pressure casting, scraper blades, conveyors, rollers.
Fch 361 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

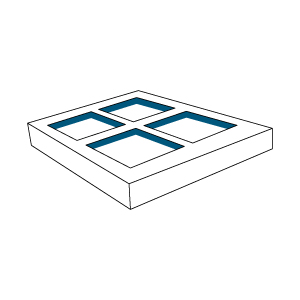

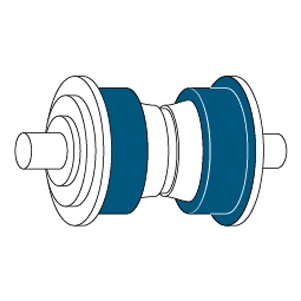

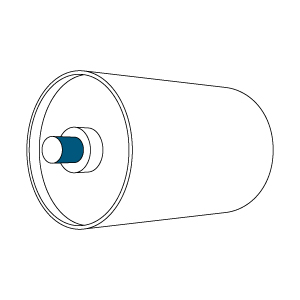

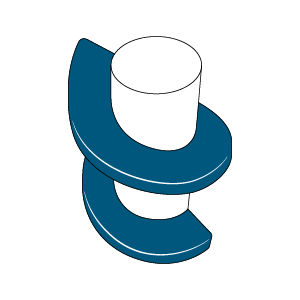

Typical Applications

Fch 361 Model Tipik Uygulamalar Fch 361 Model Tipik Uygulamalar Fch 361 Model Tipik Uygulamalar Fch 361 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrFe
Weld Deposit0.453.000.709.0086.85

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasHardness (HRc)
As weldedC1,M2159

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - C1 (%100 CO2) .

Application Information

Welding Positions :
Fch 361 Kaynak Pozisyonu Fch 361 Kaynak Pozisyonu

Polarity:

Fch 361 Kutuplama

Protection Gas:

M21 C1

Welding Parameters & Efficiency :

Diameter (mm)Yığma Oranı(kg/saat)Verimlilik(%)
1.20172.0093
1.6053.009203

Packaging Information

Product CodeDiameter (mm)Quantity per BoxKutu Brüt Ağırlığı (kg)Boxes per Outer BoxKoli Ağırlığı (kg)Packaging Type
38008EJAM21.2015 kg15.70115.70Wire Basket Spool (K300MS)
38008GJAM21.6015 kg15.70115.70Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
