FCH 386

Standards

DIN 8555 MF 6-GF-50-CT

Properties and Applications

It is used in repair and maintenance welding of parts exposed to high temperature, corrosion, metal-to-metal friction and impact.  The weld metal has a high content of Co, Cr, Mo alloys and is used for the wear repair of steels operating at temperatures up to 650°C. It has a stable arc and a smooth weld seam.

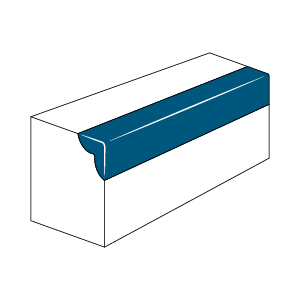

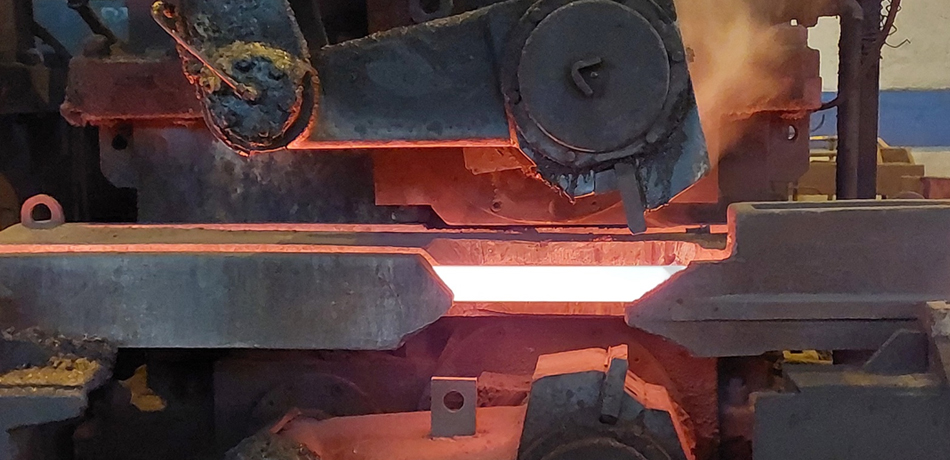

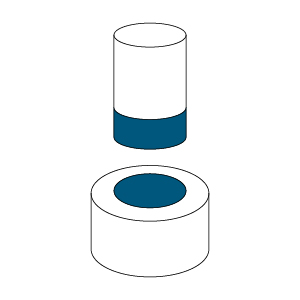

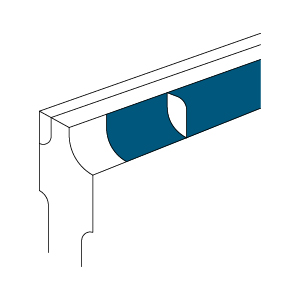

Typical Applications: Continuous casting rolls, rolls, forging dies, forming and punching tools, pumping equipment, punching tools
Fch 386 Sert Dolgu

Wear Resistance Types


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

Typical Applications

Fch 386 Model Tipik Uygulamalar Fch 386 Model Tipik Uygulamalar Fch 386 Model Tipik Uygulamalar Fch 386 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMoCo
Weld Deposit0.10.10.456.503.5013.5

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)
As welded50

Application Information

Welding Positions :
Fch 386 Kaynak Pozisyonu Fch 386 Kaynak Pozisyonu

Polarity:

Fch 386 Kutuplama DC(+)

Protection Gas:

M13 M21

Welding Parameters & Efficiency :

Diameter (mm)Deposition Rate(kg/h)Efficiency(%)
1.603.590

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
