FCH 415

Standards

EN 14700 T Fe7
TS EN 14700 T Fe7
DIN 8555 MF 5-GF-45-C

Properties and Applications

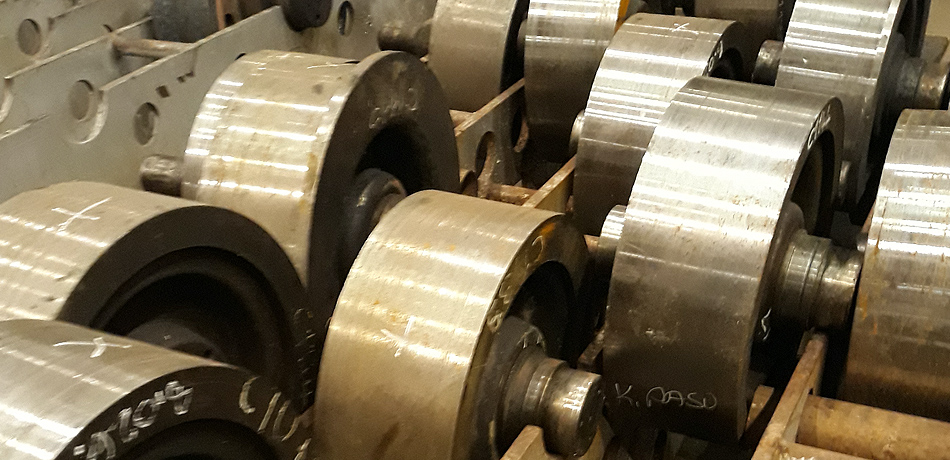

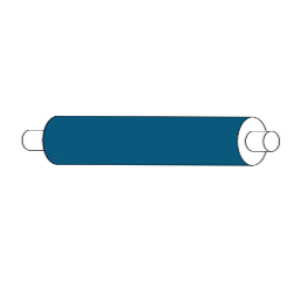

Gas shielded flux cored wire for hardfacing of parts, subjected to metal-to-metal wear (adhesion), moderate impact, creep, thermal fatigue and corrosion at high temperatures. Especially designed for hardfacing and renovation of continuous casting rollers. Ferritic-martensitic weld metal contains Cr, Ni, Mo, V and Nb alloys. Has a very silent arc and provides smooth and easily machinable surface with no spatter. Typical applications: Hardfacing of continuous casting rollers and similar rollers operating at high service temperatures.
Fch 415 Sert Dolgu

Wear Resistance Types


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

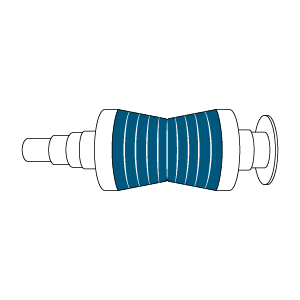

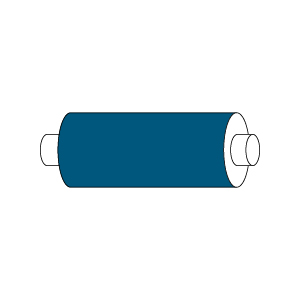

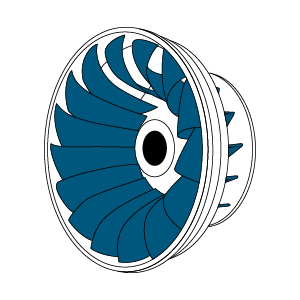

Typical Applications

Fch 415 Model Tipik Uygulamalar Fch 415 Model Tipik Uygulamalar Fch 415 Model Tipik Uygulamalar Fch 415 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNiMoVNbFe
Weld Deposit0.090.400.7013.004.600.700.200.1580.16

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasHardness (HRc)
As weldedC145

* Chemical compositon and mechanical properties are valid when using shielding gas .

Application Information

Welding Positions :
Fch 415 Kaynak Pozisyonu Fch 415 Kaynak Pozisyonu

Polarity:

Fch 415 Kutuplama DC(+)

Protection Gas:

M21 C1

Welding Parameters & Efficiency :

Diameter (mm)Deposition Rate(kg/h)Efficiency(%)
1.602.8296
2.404.2187

Packaging Information

Product CodeDiameter (mm)Weight Of The Box (kg)Number Of Boxes Per PackageWeight Of The PackagePackaging Type
38020GJAM21.6015.0115.7Wire Basket Spool (K300MS)
38020IXAM22.4025.0125.8Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
