FCH 806

Standards

AWS/ASME SFA - 5.21 ERCCoCr-A
EN 14700 T Co2
TS EN 14700 T Co2
DIN 8555 MF 20-GF-40-CTZ

Properties and Applications

Gas shielded, flux cored hardfacing wire which deposits Co-Cr-W alloy weld metal. Suitable to use in hardfacing of parts subjected to either the single or combined effect of: heavy metal-to-metal wear or abrasion, high temperatures (ranging from 500°C to 900°C) and corrosive environments. Due to its very higher toughness and shock resistance extends its use for service conditions involving mechanical impacts and thermal shocks. Pure argon (I1) shall be used as shielding gas.

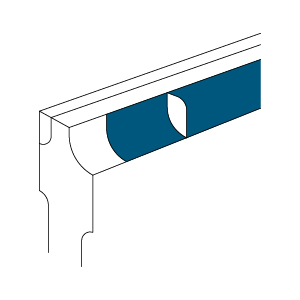

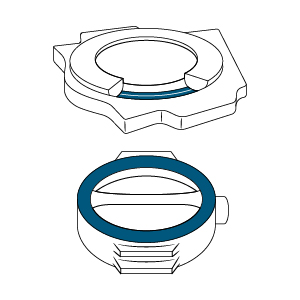

Typical Applications: Hardfacing of blades for hot shearing, ingot tong ends, valves and valve seats, nozzles.
Fch 806 Sert Dolgu

Wear Resistance Types


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

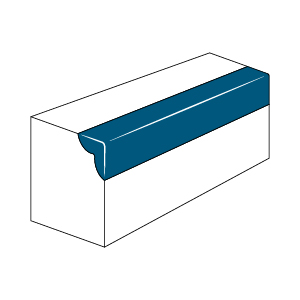

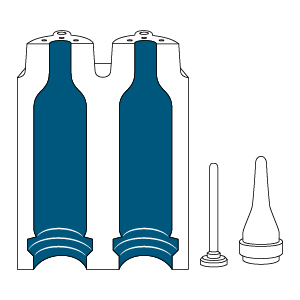

Typical Applications

Fch 806 Model Tipik Uygulamalar Fch 806 Model Tipik Uygulamalar Fch 806 Model Tipik Uygulamalar Fch 806 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNiWCoFe
Weld Deposit1.201.000.8028.002.504.5058.503.50

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasHardness (HRc)
As weldedM1342

* Chemical compositon and mechanical properties are valid when using shielding gas .

Application Information

Welding Positions :
Fch 806 Kaynak Pozisyonu Fch 806 Kaynak Pozisyonu

Polarity:

Fch 806 Kutuplama DC(+)

Protection Gas:

M13

Welding Parameters & Efficiency :

Diameter (mm)Weld Metal Deposition Rate (Kg/h)Deposition Rate(kg/h)Efficiency(%)
1.203,063.0699
1.60 3.8496
2.40 6.1894

Packaging Information

Product CodeDiameter (mm)Weight Of The Box (kg)Boxes Per PackageWeight Of The PackagePackaging Type
38041EJAM21.2015.0115.7Wire Basket Spool (K300MS)
38041GJAM21.6016.0116.7Wire Basket Spool (K300MS)
38041IJAM22.4015.0115.7Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
