FCO 250

Standards

EN 14700 T Fe9
TS EN 14700 T Fe9
DIN 8555 MF 7-GF-200-KPR

Properties and Applications

Open-arc flux cored wire for the rebuilding and reclamation of heavy parts, made of carbon steels or 14% Mn steels. Due to it's high crack resistance, it is succesfully used for buffer layer application prior to hardfacing on crack sensitive parts. Weld metal is very resistant to pressure and impact. Machinable with carbide tipped tools.

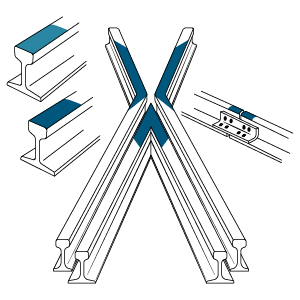

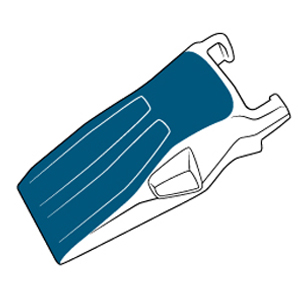

Typical Applications: Rebuilding and reclamation of railway rails and crossovers, mill shaft drive end, buffer layer on gyratory crusher mantles, re-pointing of shovel teeth, buffer layer on crawler tractor link prior to overlaying with more abrasion resistance and crack sensitive materials, rebuilding of rollers made of low alloy steels.
Fco 250 Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

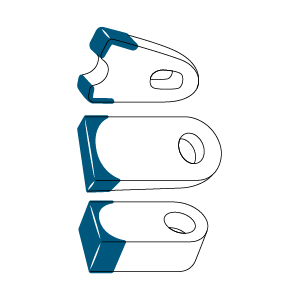

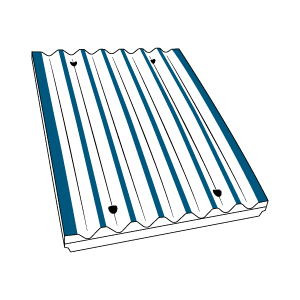

Typical Applications

Fco 250 Model Tipik Uygulamalar Fco 250 Model Tipik Uygulamalar Fco 250 Model Tipik Uygulamalar Fco 250 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrFe
Weld Deposit0.400,5016.0012.0071.10

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HB)
As welded200
After Cold Working450

Application Information

Welding Positions :
Fco 250 Kaynak Pozisyonu Fco 250 Kaynak Pozisyonu

Polarity:

Fco 250 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)Deposition Rate(kg/h)Efficiency(%)
1.603.2990
2.404.6695
2.807.0886

Packaging Information

Product CodeDiameter (mm)Kutu AğırlığıNumber Of Boxes Per PackageWeight Of The PackagePackaging Type
38203G2HM21.60250.01265.0Drum
38203GJAM21.6015.0115.7Wire Basket Spool (K300MS)
38203I2HM22.40250.01265.0Drum
38203IJAM22.4015.0115.7Wire Basket Spool (K300MS)
38203IXAM22.4025.0125.8Wire Basket Spool (K435)
38203J2HM22.80250.01265.0Drum
38203JJAM22.8015.0115.7Wire Basket Spool (K300MS)
38203JXAM22.8025.0125.8Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
