FCO 330

Standards

EN 14700 T Fe1
TS EN 14700 T Fe1
DIN 8555 MF 1-GF-300-P

Properties and Applications

Open-arc flux cored wire which is developed for hardfacing of parts subjected to metal-to-metal friction wear (adhesion) and medium degree impacts. Due to it's very tough and crack resistant weld metal, it is also used for buffer layer applications. As the weld metal has medium degree of hardness it can be machined by chip forming and flame or inductive hardening is possible. Interpass temperature should not exceed 250°C, during welding.

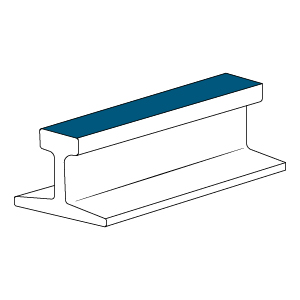

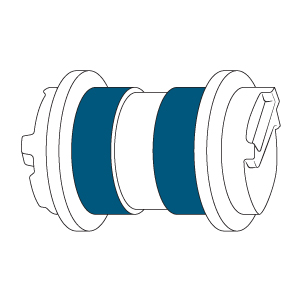

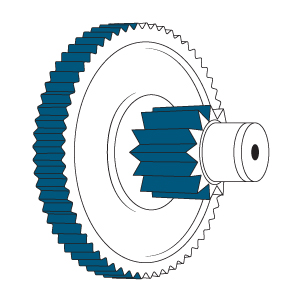

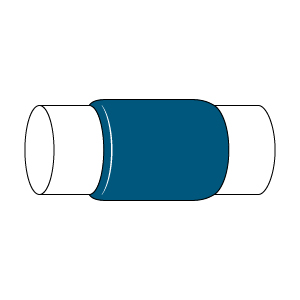

Typical Applications : Hardfacing torque gears, gear wheels, shafts, pallet reels, crane wheels, pulleys, railway rails, crossings and switch points, rollers, caterpillar tracks, sprockets, track links, gears, shafts, pinion gears in sugar industry, screws in oil industry, crane drums and wheels, mine car wheels and sheaves.
Fco 330 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

Typical Applications

Fco 330 Model Tipik Uygulamalar Fco 330 Model Tipik Uygulamalar Fco 330 Model Tipik Uygulamalar Fco 330 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMoTiFe
Weld Deposit0.100.751.000.550.401.0096.20

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HB)
As welded300

Application Information

Welding Positions :
Fco 330 Kaynak Pozisyonu Fco 330 Kaynak Pozisyonu

Polarity:

Fco 330 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)
1.20
1.60
2.40
2.80

Packaging Information

Product CodeDiameter (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
38200EJAM21.2015 kg15.70115.70Wire Basket Spool (K300MS)
38200GJAM21.6015 kg15.70115.70Wire Basket Spool (K300MS)
38200IJAM22.4015 kg15.70115.70Wire Basket Spool (K300MS)
38200JJAM22.8015 kg15.70115.70Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
