FCO 356

Standards

EN 14700 T Fe8
TS EN 14700 T Fe8
DIN 8555 MF 6-GF-55-PT

Properties and Applications

Open-arc flux cored wire, which is developed for hardfacing of parts subjected of impact high compressive stresses and metal-to-metal wear. Provides martensitic weld metal with high hardness. Weld metal can be machined by grinding or by diamond cutting bits. It is recommended to apply a buffer layer with FCW 30 on base metals with high carbon and low weldability, before hardfacing. The deposit is heat treatable and forgeable.

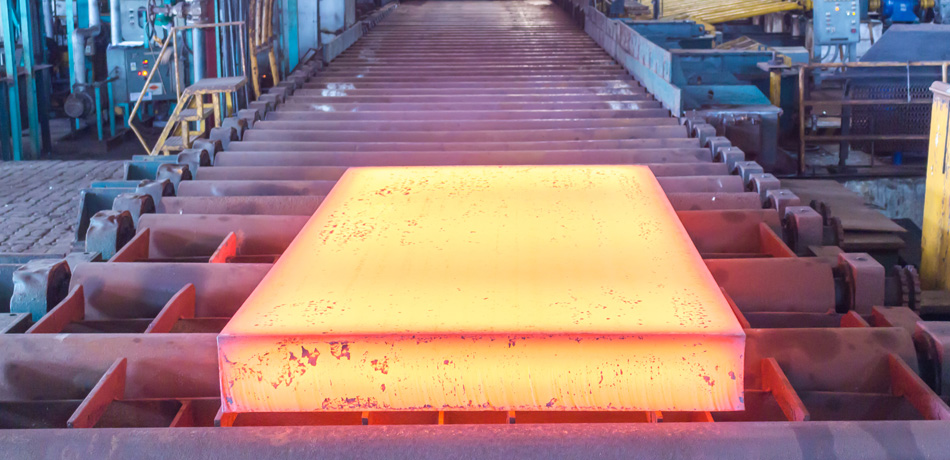

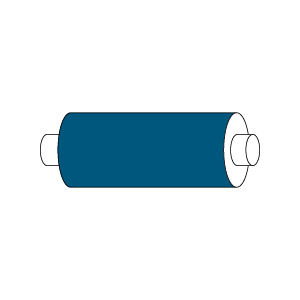

Typical Applications : Suitable for hardfacing of rope and cable sheaves, bed knives, steel mill rollers, crane wheels, forging dies.
Fco 356 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

Typical Applications

Fco 356 Model Tipik Uygulamalar Fco 356 Model Tipik Uygulamalar Fco 356 Model Tipik Uygulamalar Fco 356 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMoWTiFe
Weld Deposit0.400,501.505.701.501.300.7088.40

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)
As welded55

Application Information

Welding Positions :
Fco 356 Kaynak Pozisyonu Fco 356 Kaynak Pozisyonu

Polarity:

Fco 356 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)Yığma Oranı(kg/saat)Verimlilik(%)
1.60288.008961
2.40499.008961
2.8068.008961

Packaging Information

Product CodeDiameter (mm)Quantity per BoxKutu Brüt Ağırlığı (kg)Boxes per Outer BoxKoli Ağırlığı (kg)Packaging Type
38204GJAM21.6015 kg15.70115.70Wire Basket Spool (K300MS)
38204IJAM22.4015 kg15.70115.70Wire Basket Spool (K300MS)
38204JJAM22.8015 kg15.70115.70Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
