FCO 370

Standards

EN 14700 T Fe6
TS EN 14700 T Fe6
DIN 8555 MF 6-GF-60-GP

Properties and Applications

Open-arc hardfacing flux cored wire which is resistant to heavy impact, gouging and grinding abrasion together with resistant to cracking. Weld metal deposit composed of a hard martensitic matrix and finely dispersed titanium carbides. Weld metal is machinable by grinding. Maximum deposit thickness depends upon application and procedure used.

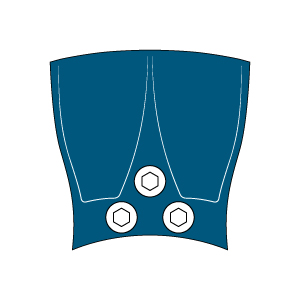

Typical Applications: Hardfacing of crusher cylinders, crusher hammers and mantels, agricultural tools, asphalt mixer blades, shovel bucket teeth and lips, bulldozer blades, cane knives and shredders, gyratory crusher mantles, bed knives and anvil in the wood pulp industry.
Fco 370 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

Typical Applications

Fco 370 Model Tipik Uygulamalar Fco 370 Model Tipik Uygulamalar Fco 370 Model Tipik Uygulamalar Fco 370 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMoVTiFe
Weld Deposit1.800.601.007.001.300.156.0082.15

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)Wear Index
As welded5814.6

Application Information

Welding Positions :
Fco 370 Kaynak Pozisyonu Fco 370 Kaynak Pozisyonu

Polarity:

Fco 370 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)
1.60
2.40
2.80

Packaging Information

Product CodeDiameter (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
38205GJAM21.6015 kg15.70115.70Wire Basket Spool (K300MS)
38205IJAM22.4015 kg15.70115.70Wire Basket Spool (K300MS)
38205JJAM22.8015 kg15.70115.70Wire Basket Spool (K300MS)
38205JXAM22.8025 kg25.80125.80Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
