FCO 415

Standards

EN 14700 T Fe7
TS EN 14700 T Fe7
DIN 8555 MF 5-GF-45-C

Properties and Applications

Open-arc flux cored wire for hardfacing of parts, subjected to metal to metal wear (adhesion), moderate impact, high thermal fatigue and corrosion at high temperatures. Especially designed for hardfacing and renovation of continuous casting rollers. Ferritic-martensitic weld metal contains Cr, Ni, Mo, V and Nb alloys. Has a very silent arc and provides smooth and easily machinable surface with no spatter. Thin slag is formed on the bead. Provides smooth and machinable surface.

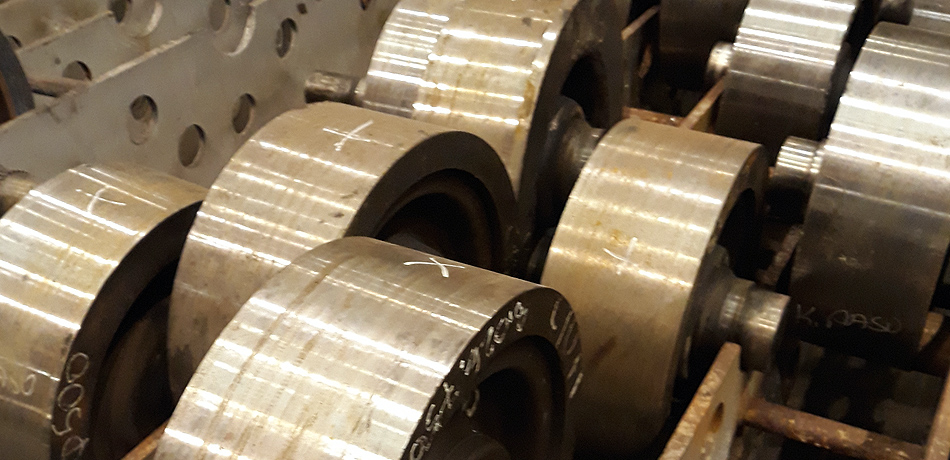

Typical Applications: Hardfacing of continuous casting rollers and similar rollers operating at high service temperatures.
Fco 415 Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Darbe

Temperature

Corrosion
Düşük
ORTA
Yüksek
Çok Yüksek

Typical Applications

Fco 415 Model Tipik Uygulamalar Fco 415 Model Tipik Uygulamalar Fco 415 Model Tipik Uygulamalar Fco 415 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNiMoVNbFe
Weld Deposit0.090.400.7013.004.600.700.200.1580.16

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)
As welded45

Application Information

Welding Positions :
Fco 415 Kaynak Pozisyonu Fco 415 Kaynak Pozisyonu

Polarity:

Fco 415 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)Yığma Oranı(kg/saat)Verimlilik(%)
1.603.6197
2.404.2187

Packaging Information

Product CodeDiameter (mm)Kutudaki Miktar (yakl)Kutu Net Ağırlığı (kg)Number Of Boxes In PackageKoli Net Ağırlığı (kg)Packaging Type
38220GJAM21.6015 kg15.0115.7Wire Basket Spool (K300MS)
38220IXAM22.4025 kg25.0125.8Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
