FCO 510

Standards

EN 14700 ~T Fe14
TS EN 14700 ~T Fe14
DIN 8555 MF 10-GF-60-CGRZ

Properties and Applications

Open-arc flux cored wire, depositing high chromium alloy designed for resisting high stress grinding abrasion with low impact. Especially used on earth moving equipments contact surfaces with soil and cement raw materials. Weld metal deposit is composed of an austenitic matrix and chromium carbides. Machinable only by grinding.

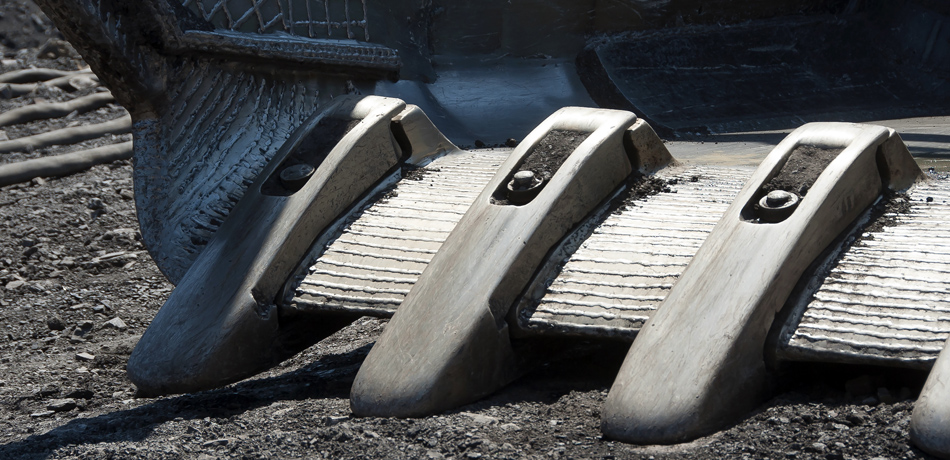

Typical Applications : Hardfacing in wear plates, conveyors, bulldozer buckets and teeth.
Fco 510 Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Darbe

Temperature

Corrosion
Düşük
ORTA
Yüksek
Çok Yüksek

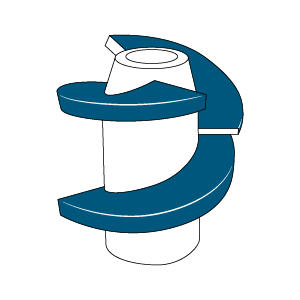

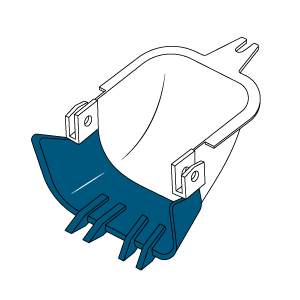

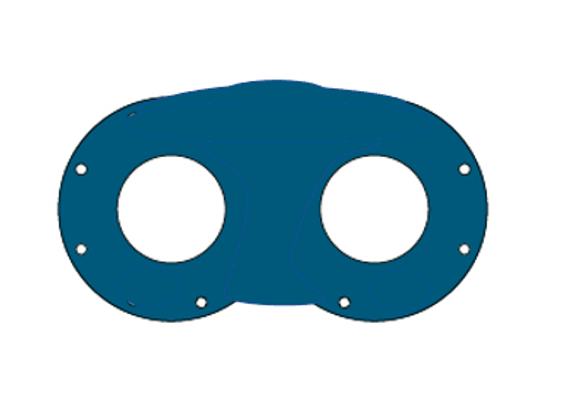

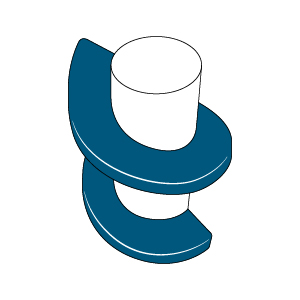

Typical Applications

Fco 510 Model Tipik Uygulamalar Fco 510 Model Tipik Uygulamalar Fco 510 Model Tipik Uygulamalar Fco 510 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrFe
Weld Deposit2.501.500.1523.0072.85

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)Wear Index
As welded6037.7

Application Information

Welding Positions :
Fco 510 Kaynak Pozisyonu Fco 510 Kaynak Pozisyonu

Polarity:

Fco 510 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)Yığma Oranı(kg/saat)Verimlilik(%)
1.604.397

Packaging Information

Product CodeDiameter (mm)Kutudaki Miktar (yakl)Kutu Net Ağırlığı (kg)Number Of Boxes In PackageKoli Net Ağırlığı (kg)Packaging Type
38207G2HM21.60250 kg250.01265.0Bidon
38207GJAM21.6015 kg15.0115.7Wire Basket Spool (K300MS)
38207JXAM22.40250 kg250.01265.0Bidon

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
