FCO 511

Standards

EN 14700 ~T Fe14
TS EN 14700 ~T Fe14
DIN 8555 MF 10-GF-65-GR

Product Features And Advantages

Open-arc flux cored wire, which is developed for hardfacing of parts, subjected to especially high abrasion and low degree of impact. Weld metal has high hardness due to it's high chromium carbide content and machinable only by grinding. Transverse cracks, caused by high hardness level, do not have any negative effect on the abrasion resistance. Recommend to apply as maximum 3 passes.Typical Applications : Suitable for hardfacing of wear plates, bucket teeth and crusher parts of heavy costruction equipments, transport augers, mixer fan blades and crushers which are made of carbon steels, low and high alloy steels or Ni-hard materials.

Properties and Applications

Self-shielded flux-cored wire designed for hardfacing parts exposed to severe abrasive wear and low impact. The weld metal has high hardness due to its high chromium carbide content and can only be machined by grinding. Transverse cracks that may occur in the weld bead do not reduce wear resistance. A maximum of three layers is recommended.

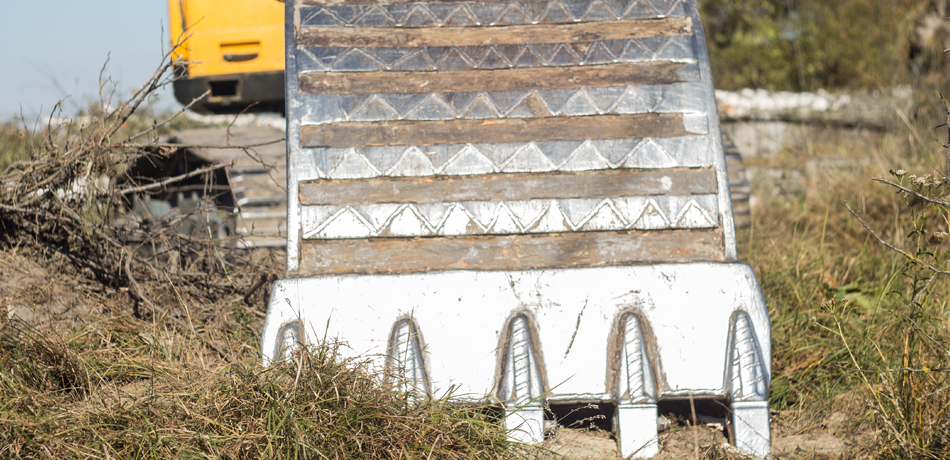

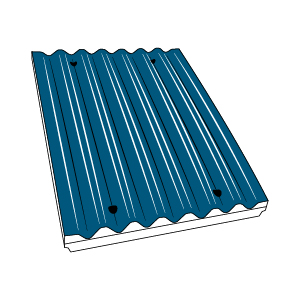

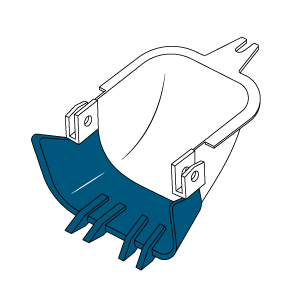

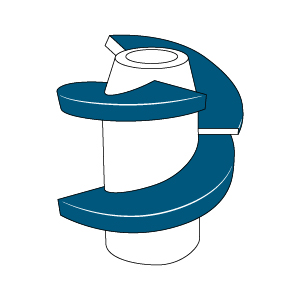

Typical Applications: Hardfacing of wear plates made from carbon steels, low/high alloy steels, or Ni-Hard materials. Suitable for bucket teeth and crusher picks of earth-moving machinery, screw conveyors, mixer fan blades, and crushers.
Fco 511 Sert Dolgu

Wear Resistance Types


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

Typical Applications

Fco 511 Model Tipik Uygulamalar Fco 511 Model Tipik Uygulamalar Fco 511 Model Tipik Uygulamalar Fco 511 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCr
Weld Deposit4.81.20.624

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)Wear Index
As welded6010.2

Application Information

Welding Positions :
Fco 511 Kaynak Pozisyonu Fco 511 Kaynak Pozisyonu

Polarity:

Fco 511 Kutuplama DC(+)

Welding Parameters & Efficiency :

Diameter (mm)Deposition Rate(kg/h)Efficiency(%)
2.805.5092

Packaging Information

Product CodeDiameter (mm)Weight Of The Box (kg)Boxes Per PackageWeight Of The PackagePackaging Type
38222J2HM22.80250.01265.0Drum

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
