FCO 512

Standards

EN 14700 ~T Fe14
TS EN 14700 ~T Fe14
DIN 8555 MF 10-GF-65-GR

Properties and Applications

Open-arc flux cored wire, which is developed for hardfacing of parts, subjected to especially high abrasion and low degree of impact. Weld metal has high hardness due to it's high chromium carbide content and machinable only by grinding. Transverse cracks, caused by high hardness level, do not have any negative effect on the abrasion resistance. Recommend to apply as maximum 3 passes.

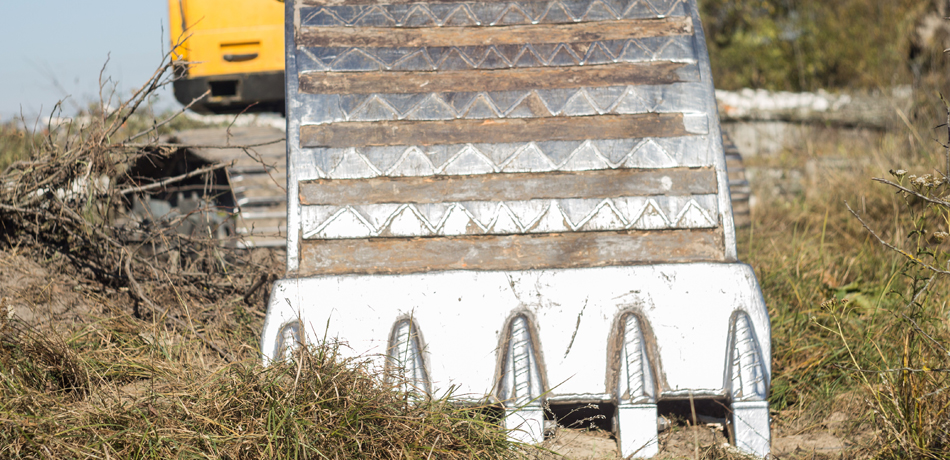

Typical Applications : Suitable for hardfacing of wear plates, bucket teeth and crusher parts of heavy costruction equipments, transport augers, mixer fan blades and crushers which are made of carbon steels, low and high alloy steels or Ni-hard materials.
Fco 512 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

Typical Applications

Fco 512 Model Tipik Uygulamalar Fco 512 Model Tipik Uygulamalar Fco 512 Model Tipik Uygulamalar Fco 512 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrFe
Weld Deposit5.201.200.2027.0066.40

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)Wear Index
As welded637.4

Application Information

Welding Positions :
Fco 512 Kaynak Pozisyonu Fco 512 Kaynak Pozisyonu

Polarity:

Fco 512 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)Yığma Oranı(kg/saat)Verimlilik(%)
1.60334.0094
2.80406.009088

Packaging Information

Product CodeDiameter (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
38208GJAM21.6015 kg15.70115.70Wire Basket Spool (K300MS)
38208J2HM22.80250 kg265.001265.00Fiber Drum
38208JXAM22.8025 kg25.80125.80Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
