FCO 514

Standards

EN 14700 ~T Fe14
TS EN 14700 ~T Fe14
DIN 8555 MF 10-GF-65-GR

Properties and Applications

Open-arc flux cored wire which is developed for hardfacing of wear plates and parts, subjected to high abrasion and low impact. Weld metal has high hardness due to it's high chromium carbide content and machinable only by grinding. Transverse cracks, caused by high hardness level, do not have any negative effect on the abrasion resistance.

Typical Applications : Suitable for hardfacing of wear plates, cement conveyor screws, bucket edge and teeth, crusher parts of heavy costruction equipments, catalytic pipes.
Fco 514 Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

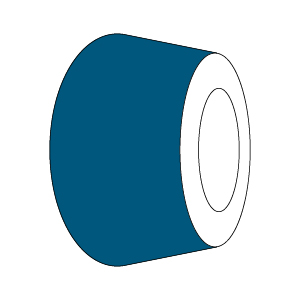

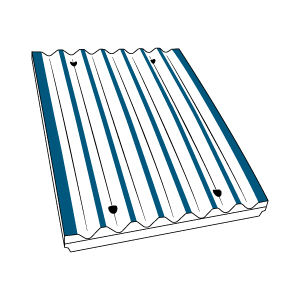

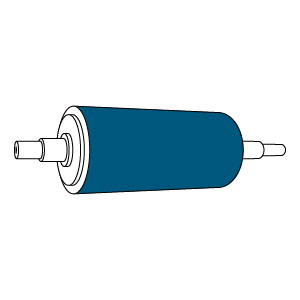

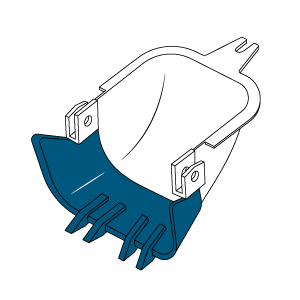

Typical Applications

Fco 514 Model Tipik Uygulamalar Fco 514 Model Tipik Uygulamalar Fco 514 Model Tipik Uygulamalar Fco 514 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrFeB
Weld Deposit5.300.800.2527.565.650,50

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)Wear Index
As welded629.8

Application Information

Welding Positions :
Fco 514 Kaynak Pozisyonu Fco 514 Kaynak Pozisyonu

Polarity:

Fco 514 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)Deposition Rate(kg/h)Efficiency(%)
2.803.9685
1.603.4897

Packaging Information

Product CodeDiameter (mm)Kutudaki Miktar (yakl)Kutu Net Ağırlığı (kg)Boxes per Outer BoxKoli Net Ağırlığı (kg)Packaging Type
38212GJAM21.6015 kg15.0115.7Wire Basket Spool (K300MS)
38212J2GM22.80200 kg200.01215.0Bidon
38212JXAM22.8025 kg25.0125.8Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
