FCO 528

Standards

EN 14700 ~T Fe15
TS EN 14700 ~T Fe15
DIN 8555 MF 10-GF-65-GR

Properties and Applications

Open-arc flux cored wire which is designed to give extreme resistance to high stress and gouging abrasion and medium impact even at higher temperatures, up to 450°C. Weld metal deposit is composed of an austenitic matrix and Cr and Nb complex carbides so, will readily stress relief check crack which is not detrimental to abrasion resistance, but decrease impact resistance. Hardfacing shall not exceed 8 mm in heigth. Weld metal is machinable by grinding.

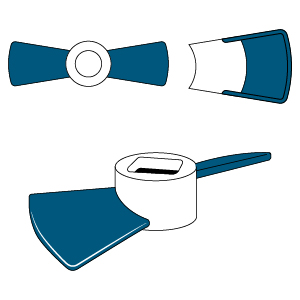

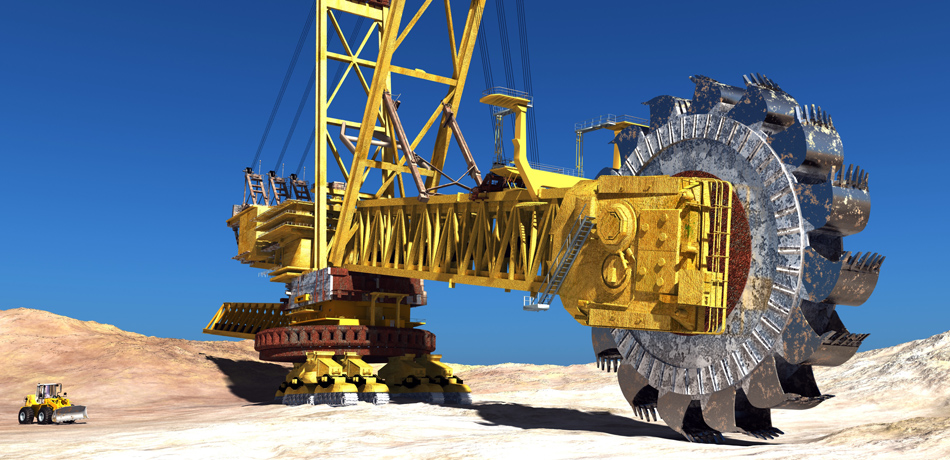

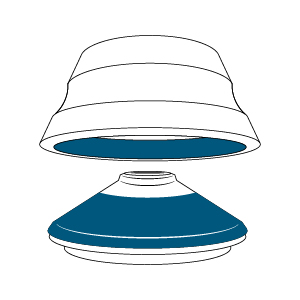

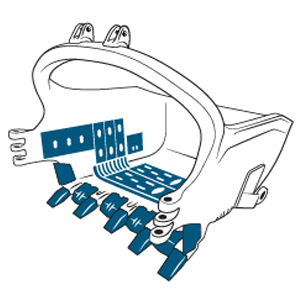

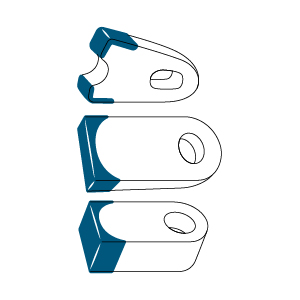

Typical Applications: Hardfacing of grinders and presses in cement and brick industries, concrete pump seats, bucket teeth and lips on bucket-wheel excavators in coal and phosphate mines, brick and clay mill augers, wear plates and screens in the coal industry, bulldozer blades working in sand.
Fco 528 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

Typical Applications

Fco 528 Model Tipik Uygulamalar Fco 528 Model Tipik Uygulamalar Fco 528 Model Tipik Uygulamalar Fco 528 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNbFe
Weld Deposit5.200.900.2021.007.0065.70

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)
As welded65

Application Information

Welding Positions :
Fco 528 Kaynak Pozisyonu Fco 528 Kaynak Pozisyonu

Polarity:

Fco 528 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)Yığma Oranı(kg/saat)Verimlilik(%)
1.60282.0095
2.40546.00922
2.80346.0091

Packaging Information

Product CodeDiameter (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
38209GJAM21.6015 kg15.70115.70Wire Basket Spool (K300MS)
38209I2HM22.40250 kg365.001365.00Fiber Drum
38209IJAM22.4015 kg15.70115.70Wire Basket Spool (K300MS)
38209IXAM22.4025 kg25.80125.80Wire Basket Spool (K435)
38209JXAM22.8025 kg25.80125.80Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
