FCO 90

Standards

AWS/ASME SFA - 5.20 E71T-GS

Properties And Applications

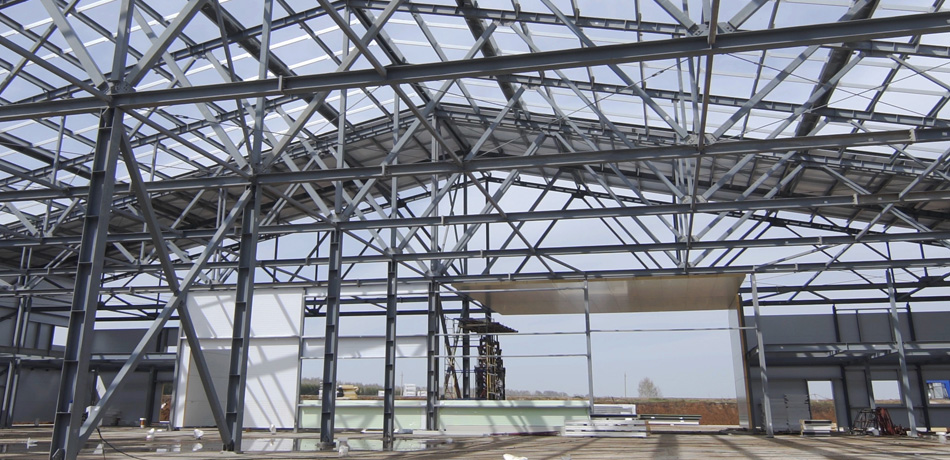

Self-shielded (open-arc) flux cored wire, suitable for welding in all position. Used in outdoor welding of construction, iron-works, roof assembly jobs, repair welds in agricultural equipment and vehicles. Suitable for single pass welding in lap and butt joints of thin plates. Has a stable arc, easily controllable weld pool and easy slag removal.

Materials

Width DIN
S185 - S355JR St 33 , St 37-2 , St 37.4, St 44-2
E295 St 50-2
GE 200, GE 240, GE 260 GS 38, GS 45, GS 52
L210 - L390 A, B

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnAl
Weld Deposit0.120.200.801.20

Typical Mechanical Values of Weld Metal(%)

Test ConditionYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)
As welded49060020

Application Information

Welding Positions :
Fco 90 Kaynak Pozisyonu Fco 90 Kaynak Pozisyonu Fco 90 Kaynak Pozisyonu Fco 90 Kaynak Pozisyonu Fco 90 Kaynak Pozisyonu Fco 90 Kaynak Pozisyonu Fco 90 Kaynak Pozisyonu

Polarity:

Fco 90 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)
0.80
0.90
1.00

Packaging Information

Product CodeDiameter (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
31201BAKM20.801 kg1.101011.30Plastic Spool (D100)
31201BCAM20.805 kg5.4015.40
31201BIAM20.8015 kg16.00116.00Plastic Spool (D300) VAC
31201CAKM20.901 kg1.121011.50Plastic Spool (D100)
31201CCAM20.905 kg5.4015.40Plastic Spool (D200) VAC
31201CIAM20.9015 kg16.00116.00Plastic Spool (D300) VAC
31201DAKM21.001 kg1.101415.60Plastic Spool (D100)
31201DCAM21.005 kg5.4015.40Plastic Spool (D200) VAC
31201DIAM21.0015 kg16.00116.00Plastic Spool (D300) VAC

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
