FCS 335

Standards

EN 14700 T Fe1
TS EN 14700 T Fe1
DIN 8555 UP 1-GF-350-P

Properties and Applications

Flux cored wire for submerged arc hardfacing of parts subjected to metal-to-metal friction wear (adhesion) and medium degree impacts. SHF 604 flux is used together with this wire for hardfacing applications. Weld metal is easily machinable by chip forming. Interpass temperature should not exceed 250°C, during welding.

Typical Applications : Suitable for hardfacing rollers, railway rails and crossings, rolling mills, caterpillar track rolls and tracks, sprockets, shafts, crane rollers and ilder and mine car wheels.

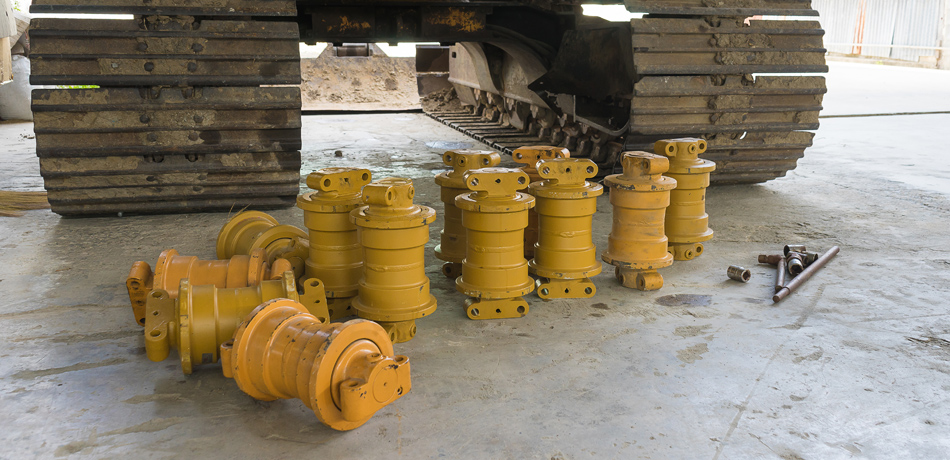

Fcs 335 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

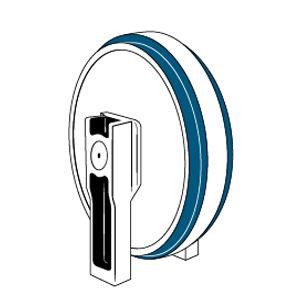

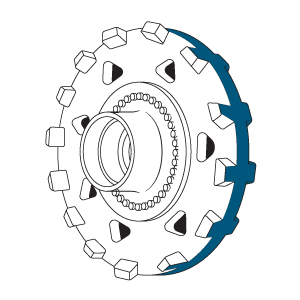

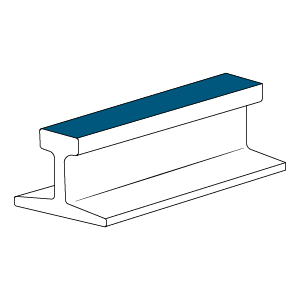

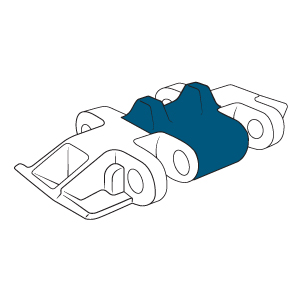

Typical Applications

Fcs 335 Model Tipik Uygulamalar Fcs 335 Model Tipik Uygulamalar Fcs 335 Model Tipik Uygulamalar Fcs 335 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMoFe
Weld Deposit0.090,501.502.900,5094.51

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HB)
As welded350

Application Information

Welding Positions :
Fcs 335 Kaynak Pozisyonu Fcs 335 Kaynak Pozisyonu

Polarity:

Fcs 335 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)Yığma Oranı(kg/saat)Verimlilik(%)
2.4045.00991
3.20526.0010013

Packaging Information

Product CodeDiameter (mm)Quantity per BoxKutu Brüt Ağırlığı (kg)Boxes per Outer BoxKoli Ağırlığı (kg)Packaging Type
38401I2HM22.40250 kg266.501266.50Fiber Drum
38401IXAM22.4025 kg25.80125.80Wire Basket Spool (K435)
38401L2HM23.20250 kg265.001265.00Fiber Drum
38401LXAM23.2025 kg25.80125.80Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
