FCS 345

Standards

EN 14700 ~T Fe1
TS EN 14700 ~T Fe1
DIN 8555 UP 1-GF-45-P

Properties and Applications

Flux cored wire for submerged arc hardfacing of parts subjected to metal-to-metal friction (adhesion) and medium degree impacts. SHF 604 flux is used together with this wire for hardfacing applications. Weld metal is easily machinable by chip forming. Interpass temperature should not exceed 250°C, during welding.

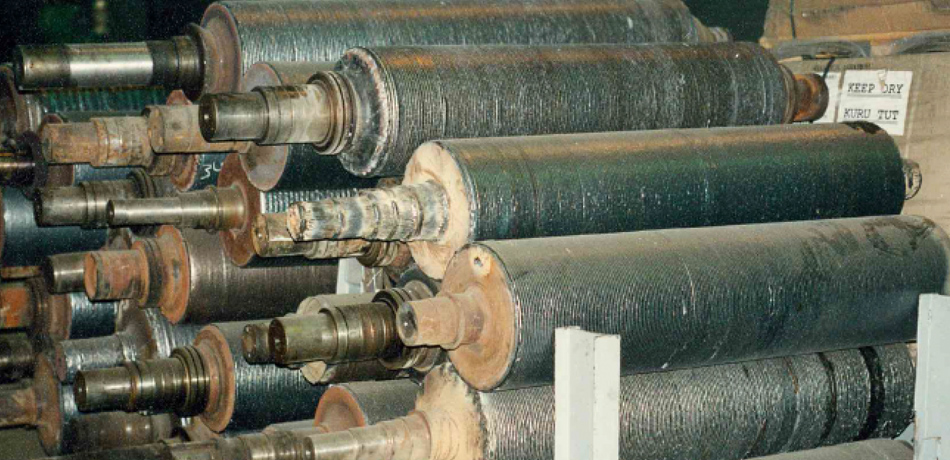

Typical Applications : Suitable for hardfacing rollers, rolling mills, caterpillar track rolls and tracks, sprockets, shafts, crane rollers and idler and mine car wheels.
Fcs 345 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

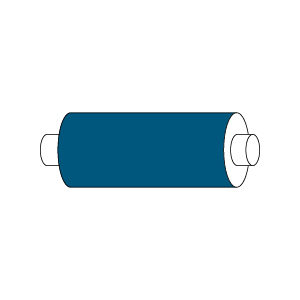

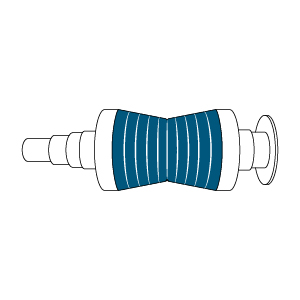

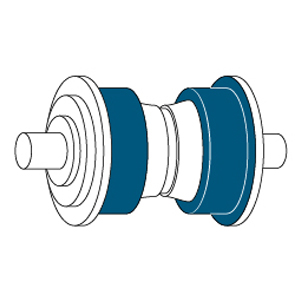

Typical Applications

Fcs 345 Model Tipik Uygulamalar Fcs 345 Model Tipik Uygulamalar Fcs 345 Model Tipik Uygulamalar Fcs 345 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Welding FluxType of AnalysisCSiMnCrMoFe
SHF 604Weld Deposit0.200.701.753.600.6093.15

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HB)
As welded450

Application Information

Welding Positions :
Fcs 345 Kaynak Pozisyonu Fcs 345 Kaynak Pozisyonu

Polarity:

Fcs 345 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)
2.40
3.20

Packaging Information

Product CodeDiameter (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
38404I2HM22.40250 kg265.001265.00Fiber Drum
38404IXAM22.4025 kg25.80125.80Wire Basket Spool (K435)
38404L2HM23.20250 kg265.001265.00Fiber Drum
38404LXAM23.2025 kg25.80125.80Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
