FCS 355

Datasheet

Standards

EN 14700	T Fe3
TS EN 14700	T Fe3
DIN 8555	UP 6-GF-55-P

Properties and Applications

Flux cored wire for submerged arc hardfacing of parts subjected to low stress abrasion with high compression stress and high impact. SHF 604 flux is the proper flux for hardfacing applications. Due to it's high hardness weld metal is only machinable by grinding or carbide tipped tools.

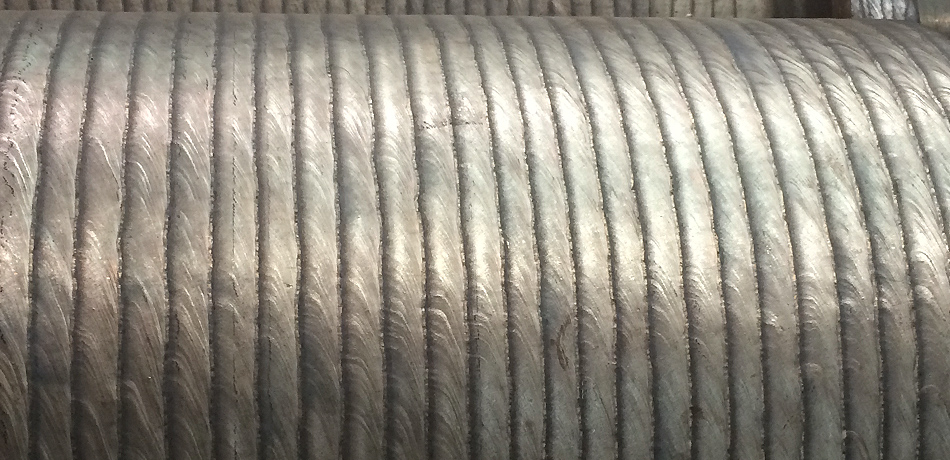

Typical Applications : Hardfacing of steel mill rolls, crane wheels, cable sheaves.

Wear Resistance Types and Microstructure

Abrasion

Adhesion

Darbe

Temperature

Corrosion

Düşük

ORTA

Yüksek

Çok Yüksek

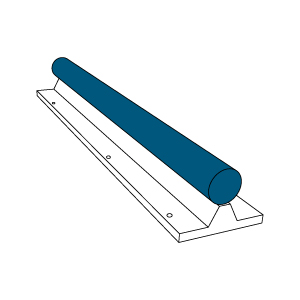

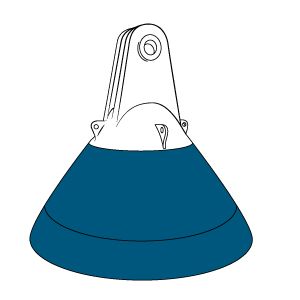

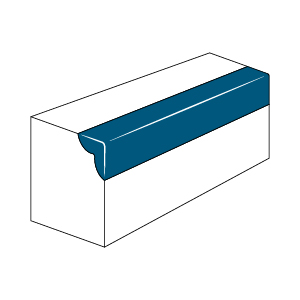

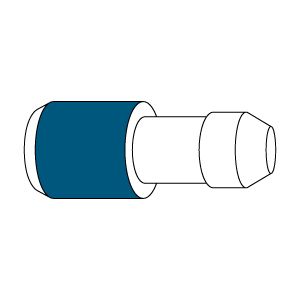

Typical Applications

Typical Chemical Values of Weld Metal

Type of Analysis	C	Si	Mn	Cr	Fe
Weld Deposit	0.30	0.90	0.95	3.80	94.05

Type of Analysis

Weld Deposit

0.30

0.90

0.95

3.80

94.05

Typical Mechanical Values of Weld Metal(%)

Test Condition	Hardness (HRc)	Wear Index
As welded	55	58.8

Test Condition

Hardness (HRc)

Wear Index

As welded

58.8

Application Information

Welding Positions :

Polarity:

Welding Parameters & Efficiency :

Diameter (mm)	Yığma Oranı(kg/saat)	Verimlilik(%)
1.60	2.28	98
2.40	4.82	92

Packaging Information

Product Code	Diameter (mm)	Kutudaki Miktar (yakl)	Kutu Net Ağırlığı (kg)	Number Of Boxes In Package	Koli Net Ağırlığı (kg)	Packaging Type
38402GJAM2	1.60	15 kg	15.0	1	15.7	Wire Basket Spool (K300MS)
38402GXAM2	1.60	25 kg	25.0	1	25.8	Wire Basket Spool (K435)
38402IXAM2	2.40	25 kg	25.0	1	25.8	Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
