FCS 356

Standards

EN 14700 T Fe 3
TS EN 14700 T Fe 3
DIN 8555 UP 6-GF-55-PT

Properties and Applications

Flux cored wire for submerged arc welding, which is developed for hardfacing of parts subjected of impact high compressive stresses and metal-to-metal wear. Provides martensitic weld metal with high hardness. Weld metal can be machined by grinding or by diamond cutting bits. It is recommended to apply a buffer layer on base metals with high carbon and low weldability, before hardfacing. The deposit is heat treatable and forgeable.

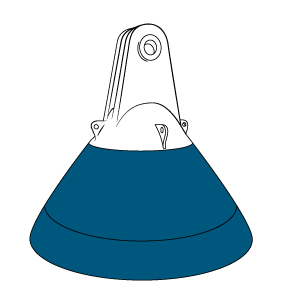

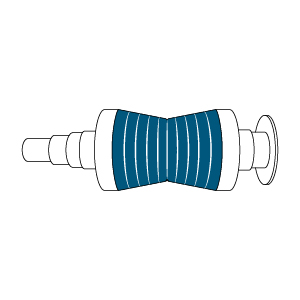

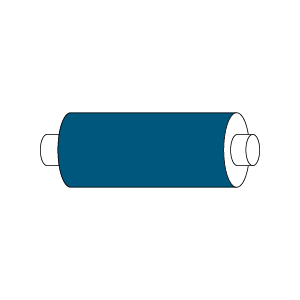

Typical Applications : Suitable for hardfacing of rope and cable sheaves, bed knives, steel mill rollers, crane wheels, forging dies.
Fcs 356 Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

Typical Applications

Fcs 356 Model Tipik Uygulamalar Fcs 356 Model Tipik Uygulamalar Fcs 356 Model Tipik Uygulamalar Fcs 356 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrMoWFe
Weld Deposit0.450.401.255.801.601.6088.90

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)
As welded55

Application Information

Welding Positions :
Fcs 356 Kaynak Pozisyonu Fcs 356 Kaynak Pozisyonu

Polarity:

Fcs 356 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)Deposition Rate(kg/h)Efficiency(%)
2.404.8292
3.206.7693
2.805.7996

Packaging Information

PRODUCT CODEDiameter (mm)Quantity per box (approx.)Box Net Weight (kg)NUMBER OF BOXES IN PACKAGEPackage Net Weight (kg)Packaging Type
38403IXAM22.4025 kg25.0125.8Wire Basket Spool (K435)
38403JXAM22.8025 kg25.0125.8Wire Basket Spool (K435)
38403LXAM23.2025 kg25.0125.8Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
