FCS 415

Standards

EN 14700 T Fe7
TS EN 14700 T Fe7
DIN 8555 UP 5-GF-40 (45)-C

Properties and Applications

Flux cored wire for hardfacing of parts subjected to metal-to-metal wear (adhesion), moderate impact, creep, thermal fatigue and corrosion at high temperatures. Especially designed for hardfacing and renovation of continuous casting rollers. SHF 604 is the suitable flux for these hardfacing applications. Ferritic-martensitic weld metal contains Cr, Ni, Mo, V and Nb alloys. Provides smooth and easily machinable surface on stringer weld bead or weaving technique.

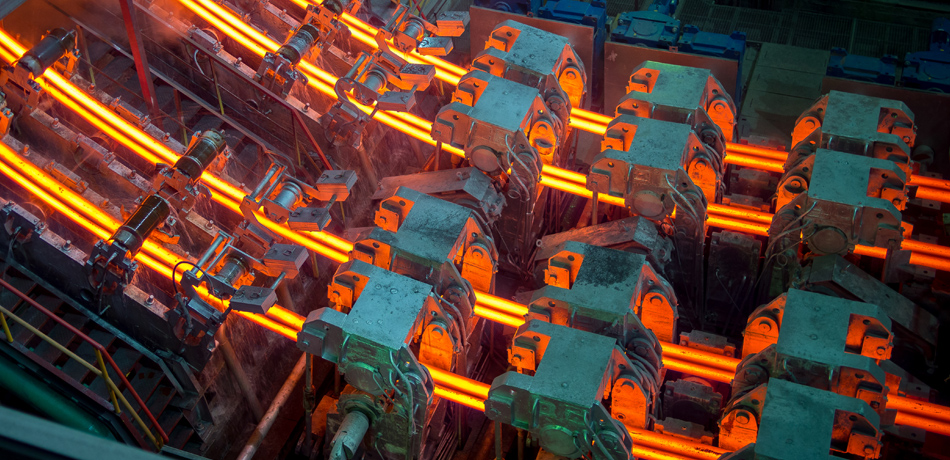

Typical Applications: Hardfacing of continuous casting rollers and similar rollers operating at high service temperatures.
Fcs 415 Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

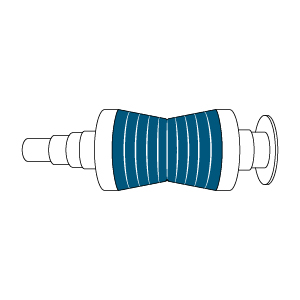

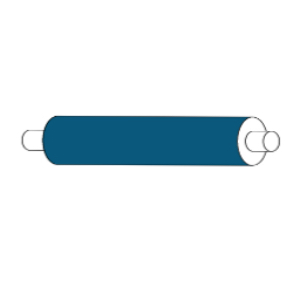

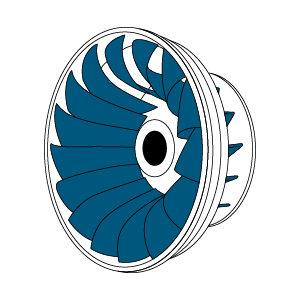

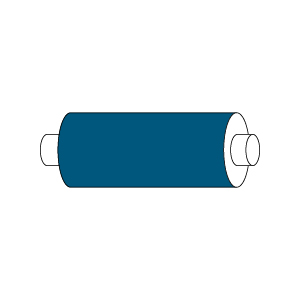

Typical Applications

Fcs 415 Model Tipik Uygulamalar Fcs 415 Model Tipik Uygulamalar Fcs 415 Model Tipik Uygulamalar Fcs 415 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNiMoVNbFe
Weld Deposit0.080.701.0013.002.701.000.250.2081.07

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)
As welded42

Application Information

Welding Positions :
Fcs 415 Kaynak Pozisyonu Fcs 415 Kaynak Pozisyonu

Polarity:

Fcs 415 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)Deposition Rate(kg/h)Efficiency(%)
3.206.25100
2.404.7799

Packaging Information

Product CodeDiameter (mm)Kutudaki Miktar (yakl)Kutu Net Ağırlığı (kg)Boxes per Outer BoxKoli Net Ağırlığı (kg)Packaging Type
38420I2HM22.40250 kg250.01265.0Bidon
38420IXAM22.4025 kg25.0125.8Wire Basket Spool (K435)
38420L2HM23.20250 kg250.01265.0Bidon
38420LXAM23.2025 kg25.0125.8Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
