FCS 417

Standards

EN 14700 ~T Fe7
TS EN 14700 ~T Fe7
DIN 8555 UP 5-GF-45 (50)-C

Properties and Applications

Flux cored wire for hardfacing of parts subjected to metal-to-metal wear (adhesion), moderate impact, creep, thermal fatigue and corrosion at high temperatures. Especially designed for hardfacing and renovation of continuous casting rollers, where high hardness is required. SHF 604 is the suitable flux for these hardfacing applications. Ferritic-martensitic weld metal has higher level of hardness with respect to FCS 415 and weld metal contains Cr, Ni, Mo, V and Nb alloys. Provides smooth and easily machinable surface on stringer weld bead or weaving technique.

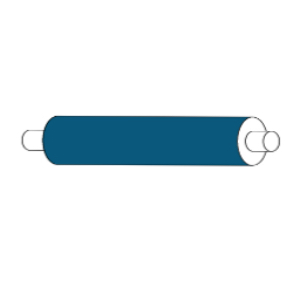

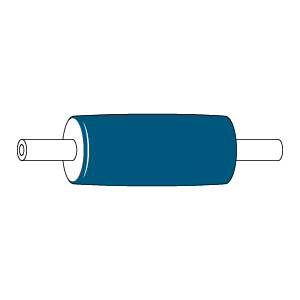

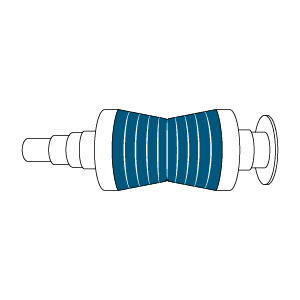

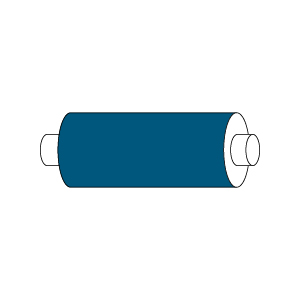

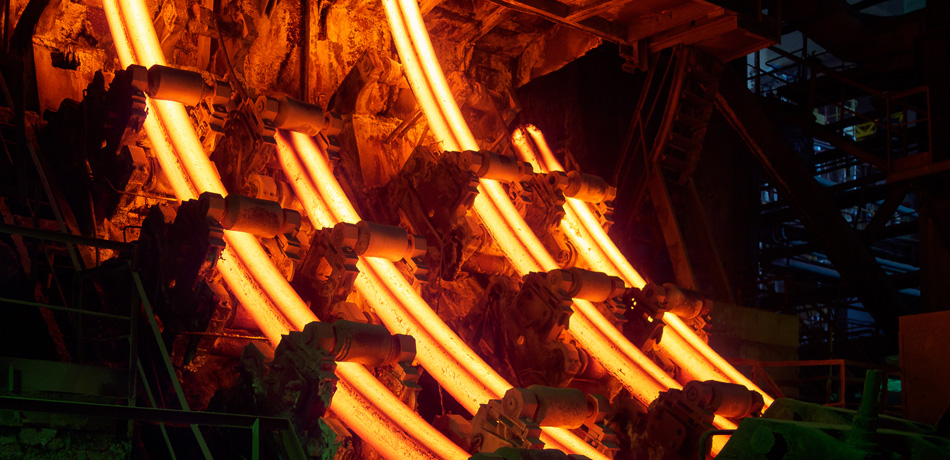

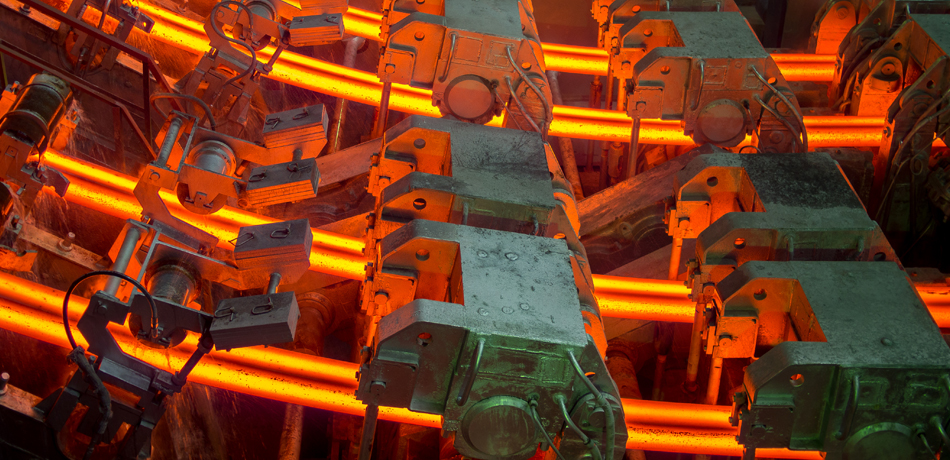

Typical Applications: Hardfacing of continuous casting rollers and similar rollers operating at high service temperatures.
Fcs 417 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

Typical Applications

Fcs 417 Model Tipik Uygulamalar Fcs 417 Model Tipik Uygulamalar Fcs 417 Model Tipik Uygulamalar Fcs 417 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNiMoVNbFe
Weld Deposit0.120.801.1013.003.001.000.250.2581.07

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)
As welded47

Application Information

Welding Positions :
Fcs 417 Kaynak Pozisyonu Fcs 417 Kaynak Pozisyonu

Polarity:

Fcs 417 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)Yığma Oranı(kg/saat)Verimlilik(%)
2.40508.00101
3.20625.0010013

Packaging Information

Product CodeDiameter (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
38421I2HM22.40250 kg266.501266.50Fiber Drum
38421IXAM22.4025 kg25.90125.90Wire Basket Spool (K435)
38421L2HM23.20250 kg266.501266.50Fiber Drum
38421LXAM23.2025 kg25.90125.90Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
