FCS 420

Standards

EN 14700 ~T Fe7
TS EN 14700 ~T Fe7
DIN 8555 UP 6-GF-50-C

Properties and Applications

Flux cored wire for submerged arc hardfacing of parts subjected to metal-to-metal wear (adhesion), moderate impact, thermal fatigue and corrosion at high temperatures. Especially designed for hardfacing and renovation of continue casting rolls. SHF 604 flux is used together with this wire for hardfacing applications. Provides smooth and easily machinable surface on stringer weld bead or weaving technique.

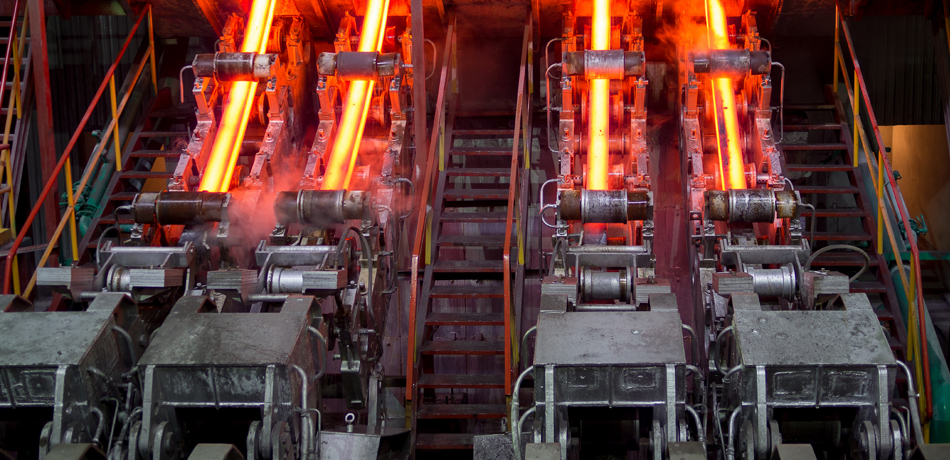

Typical Applications: Suitable for hardfacing of rolling rolls which are subjected to high operating temparatures and corrosion and rolls working on similar conditions in iron and steel works. Steel mill rollers, continuous casting rollers.
Fcs 420 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

Typical Applications

Fcs 420 Model Tipik Uygulamalar Fcs 420 Model Tipik Uygulamalar Fcs 420 Model Tipik Uygulamalar Fcs 420 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNiNbFe
Weld Deposit0.200.701.4013.000.300.3084.10

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)
As welded50

Application Information

Welding Positions :
Fcs 420 Kaynak Pozisyonu Fcs 420 Kaynak Pozisyonu

Polarity:

Fcs 420 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)Yığma Oranı(kg/saat)Verimlilik(%)
2.40435.009471

Packaging Information

Product CodeDiameter (mm)Quantity per BoxKutu Brüt Ağırlığı (kg)Boxes per Outer BoxKoli Ağırlığı (kg)Packaging Type
38422IXAM22.4025 kg25.80125.80Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
