FCS 421

Standards

EN 14700 ~T Fe7
TS EN 14700 ~T Fe7
DIN 8555 UP 6-GF-50 (55)-C

Properties and Applications

Flux cored wire for submerged arc hardfacing of parts subjected to metal-to-metal wear (adhesion), moderate impact, thermal fatigue and corrosion at high temperatures. Especially designed for hardfacing and renovation of rolling rolls. SHF 604 flux is used together with this wire for hardfacing applications. Has higher level of hardness with respect to FCS 420. Provides smooth and easily machinable surface on stringer weld bead or weaving technique.

Typical Applications : Suitable for hardfacing of rolling rolls which are subjected to high operating temparatures and corrosion and rolls working on similar conditions in iron and steel works. Steel mill rollers, continuous casting rollers.
Fcs 421 Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Darbe

Temperature

Corrosion
Düşük
ORTA
Yüksek
Çok Yüksek

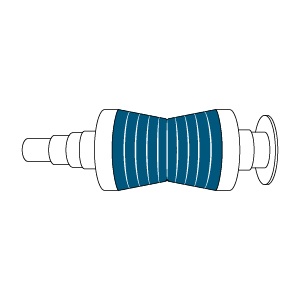

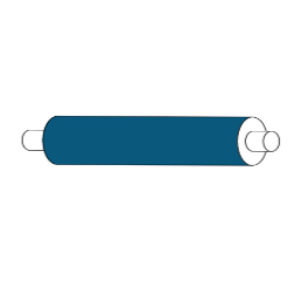

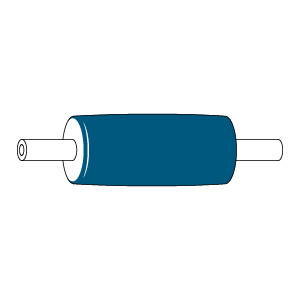

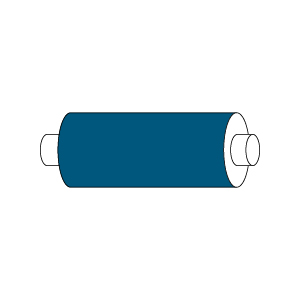

Typical Applications

Fcs 421 Model Tipik Uygulamalar Fcs 421 Model Tipik Uygulamalar Fcs 421 Model Tipik Uygulamalar Fcs 421 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNiNbFe
Weld Deposit0.250.801.3013.000.350.3084.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)
As welded52

Application Information

Welding Positions :
Fcs 421 Kaynak Pozisyonu Fcs 421 Kaynak Pozisyonu

Polarity:

Fcs 421 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)Yığma Oranı(kg/saat)Verimlilik(%)
1.602.2898
2.404.3595
3.206.25100

Packaging Information

Product CodeDiameter (mm)Kutudaki Miktar (yakl)Kutu Net Ağırlığı (kg)Number Of Boxes In PackageKoli Net Ağırlığı (kg)Packaging Type
38423GJAM21.6015 kg15.0115.7Wire Basket Spool (K300MS)
38423I2HM22.40250 kg250.01266.5Bidon
38423IXAM22.4025 kg25.0125.8Wire Basket Spool (K435)
38423L2HM23.20250 kg250.01266.5Bidon
38423LXAM23.2025 kg25.0125.8Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
