FCS 423

Standards

EN 14700 ~ T Fe 7
TS EN 14700 ~ T Fe 7
DIN 8555 UP 6 GF 50 C

Properties and Applications

Flux cored wire for submerged arc hardfacing of parts, subjected to metal-to-metal wear (adhesion), moderate impact, thermal fatigue and corrosion at high temperatures. Especially designed for hardfacing and renovation of rolling rolls. SHF 604 flux is used together with this wire for hardfacing applications. It has low crack sensivity combined with high hardness. Provides smooth and easily machinable surface with stringer weld bead or weaving technique.

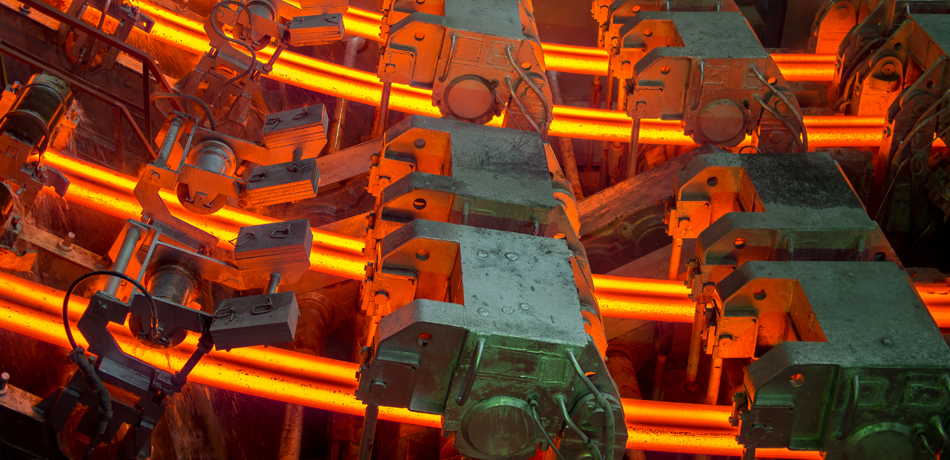

Typical Applications : Suitable for hardfacing of rolling rolls which are subjected to high operating temparatures and corrosion and rolls working on similar conditions in iron and steel works. Steel mill rollers, continuous casting rollers.
Fcs 423 Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

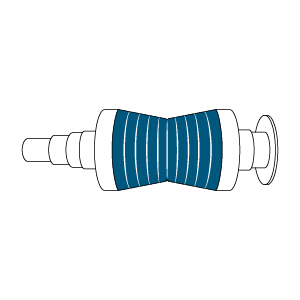

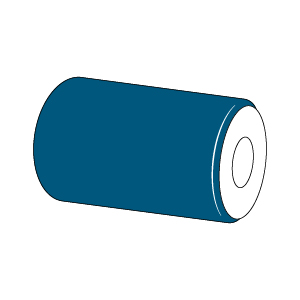

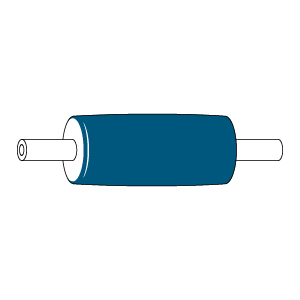

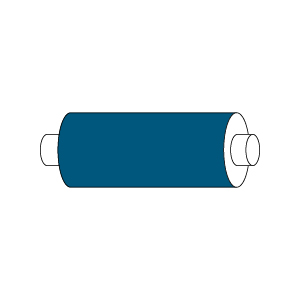

Typical Applications

Fcs 423 Model Tipik Uygulamalar Fcs 423 Model Tipik Uygulamalar Fcs 423 Model Tipik Uygulamalar Fcs 423 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrNiVNb
Weld Deposit0.240.700,5012.503.000.300.30

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HRc)
As welded51

Application Information

Welding Parameters & Efficiency :

Diameter (mm)Deposition Rate(kg/h)Efficiency(%)
2.404.3598
3.206.25100

Packaging Information

Product CodeDiameter (mm)Kutu AğırlığıNumber Of Boxes Per PackageWeight Of The PackagePackaging Type
38425I2HM22.40250.01266.5Drum
38425IXAM22.4025.0125.8Wire Basket Spool (K435)
38425L2HM23.20250.01266.5Drum
38425LXAM23.2025.0125.8Wire Basket Spool (K435)
