FCS 430

Standards

EN 14700 ~T Fe7
TS EN 14700 ~T Fe7

Properties and Applications

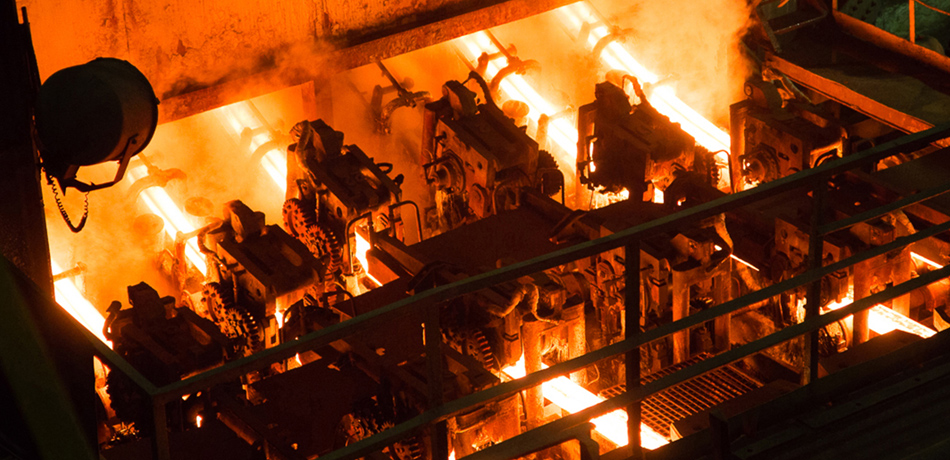

Flux cored wire for submerged arc hardfacing and buffer layer application on parts subjected to metal-to-metal wear (adhesion), moderate impact, thermal fatigue and corrosion at high temperatures. Especially designed to be used as a buffer layer in new continue casting rollers, before hardfacing, in order to reduce dilution and crack suseptibility. SHF 604 is the suitable flux for these hardfacing applications. Provides smooth and easily machinable surface on stringer weld bead or weaving technique.

Typical Applications: Suitable for buffer layer in new continue casting rolls, before hardfacing layers.
Fcs 430 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

Typical Applications

Fcs 430 Model Tipik Uygulamalar Fcs 430 Model Tipik Uygulamalar Fcs 430 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrFe
Weld Deposit0.030.701.3017.0080.97

Typical Mechanical Values of Weld Metal(%)

Test ConditionHardness (HB)
As welded200

Application Information

Welding Positions :
Fcs 430 Kaynak Pozisyonu Fcs 430 Kaynak Pozisyonu

Polarity:

Fcs 430 Kutuplama

Welding Parameters & Efficiency :

Diameter (mm)Yığma Oranı(kg/saat)Verimlilik(%)
2.40477.0099
3.20625.0010013

Packaging Information

Product CodeDiameter (mm)Quantity per BoxKutu Brüt Ağırlığı (kg)Boxes per Outer BoxKoli Ağırlığı (kg)Packaging Type
38424I2HM22.40250 kg266.501266.50Fiber Drum
38424IXAM22.4025 kg25.80125.80Wire Basket Spool (K435)
38424L2HM23.20250 kg266.501266.50Fiber Drum
38424LXAM23.2025 kg25.80125.80Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
