FCW 13

Standards

AWS/ASME SFA - 5.36 E71T1-M21A4-CS1
AWS/ASME SFA - 5.36 E71T1-C1A2-CS1
AWS/ASME SFA - 5.20 E71T-1M
AWS/ASME SFA - 5.20 E71T-1C
EN ISO 17632 - A T 46 3 P M 1 H5
EN ISO 17632 - A T 46 2 P C 1 H5
TS EN ISO 17632 - A T 46 2 P C 1 H5
TS EN ISO 17632 - A T 46 3 P M 1 H5

Properties And Applications

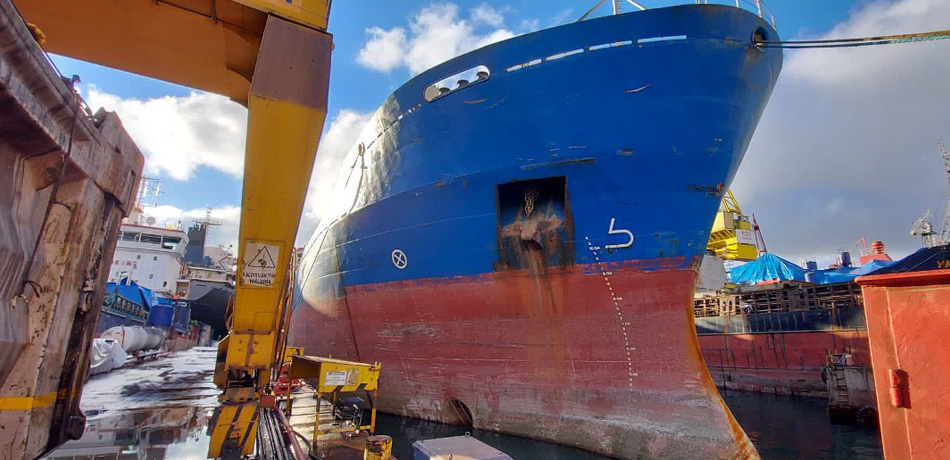

Rutile type flux cored wire, designed for welding in steel construction, piping, machine fabrication and shipbuilding by using M21-mix gas and CO2 shielding gas. Owing to it's easily controllable weld pool and fast freezing slag particularly suited for welding in all position. Welding in all-position is easy with a wide parameter range, especially when using mixed gas. Good gap-bridging property, low spatter loss, easy slag removal even in narrow grooves. Finely ripped pore-free welds blending into base metal without undercut.

Approvals & Certificates

Materials

Width DIN
S255N - S420N StE 255 - StE 420
S185 - S355J2 St 33- St 52.3
P235G1TH, P255G1TH St 35.8 - St 45.8
P235GH, P265GH H I, H II
P235TR2 - P355T2 St 37.4 - St 52.4
P295GH 17Mn4
L210 - L415NB StE 210.7 - StE 415.7
L290MB - L415MB StE 290.7 TM - StE 415.7 TM
GE 200, GE 240 GS 38, GS 45
X42 - X60
A, B, D, E
X42 - X65

Typical Chemical Values of Weld Metal

Type of AnalysisProtection GasCSiMn
Weld DepositC10.060,501.15
Weld DepositM210.060.601.40

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As weldedC147054028-20°C → 100-30°C → 50
As weldedM2153062025-20°C → 100-30°C → 80

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - M21 ( Ar + %20 CO2) .

Application Information

Welding Positions :
Fcw 13 Kaynak Pozisyonu Fcw 13 Kaynak Pozisyonu Fcw 13 Kaynak Pozisyonu Fcw 13 Kaynak Pozisyonu Fcw 13 Kaynak Pozisyonu Fcw 13 Kaynak Pozisyonu Fcw 13 Kaynak Pozisyonu

Polarity:

Fcw 13 Kutuplama

Protection Gas:

M21 C1

Welding Parameters & Efficiency :

Diameter (mm)
1.00
1.20
1.60

Packaging Information

Product CodeDiameter (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
31004DCAM21.005 kg0.0000.00
31004DIAM21.0015 kg0.0000.00
31004ECAM21.205 kg5.9015.90
31004EIAM21.2015 kg16.00116.00Plastic Spool (D300) VAC
31004GIAM21.6015 kg16.00116.00Plastic Spool (D300) VAC

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
