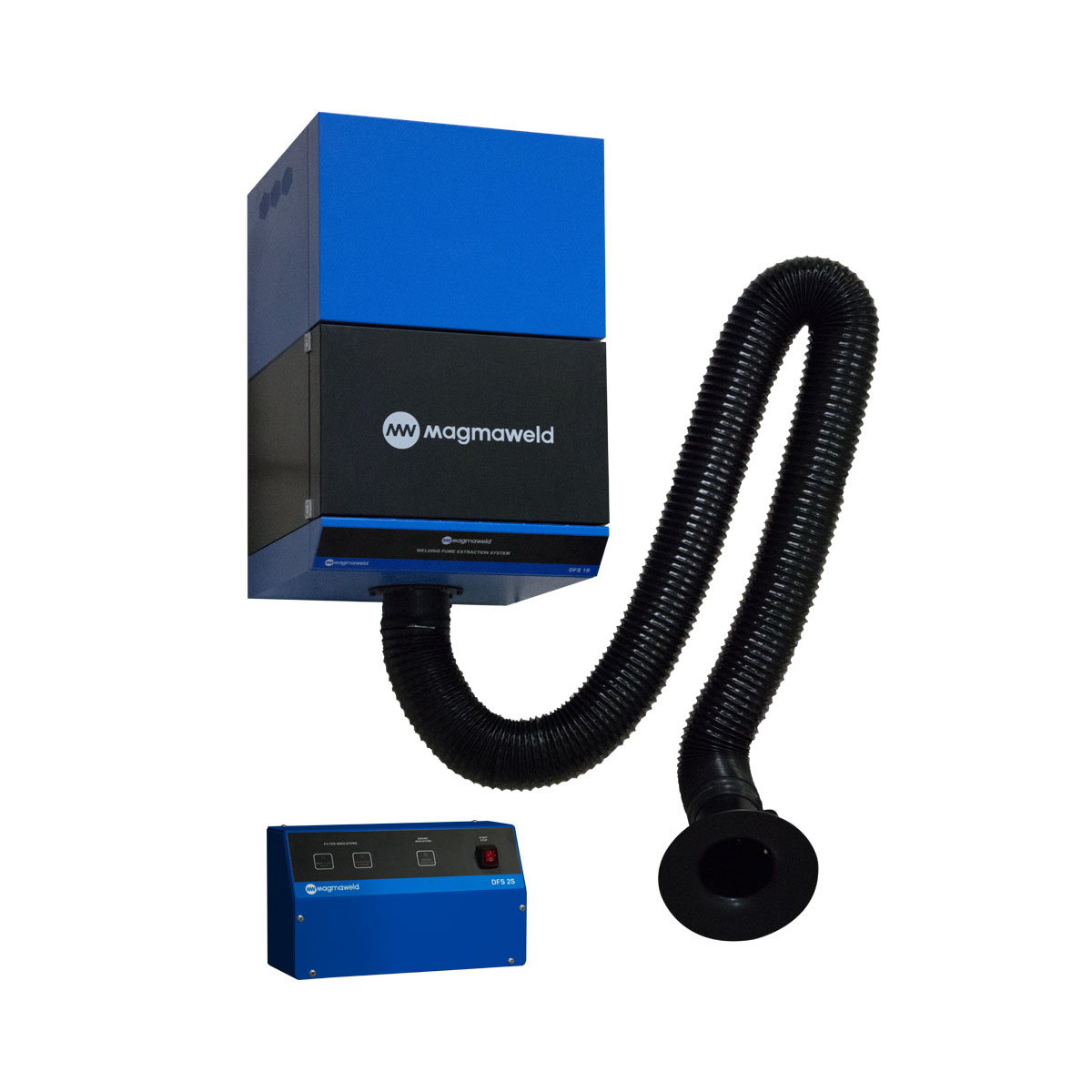

FIXED DFS 1S - SINGLE ARM ( 3 METERS )

Products :
Product Brochure : PDF
General
Technical Details
  • Including 3 meters acrobat arm
  • Welding fume cleaning F8 filter with %99 efficiency
  • Aluminium grille for spark damping
  • Warning lamb for filter change
  • Process control lamp
  • 5m feeding cable
  • 150mm diameter suction hose
  • Optional lighting
Power Source
Mains Voltage (3Ph) 380 / 50-60 Hz V
Input Power 1.1 kW
Suction Capacity 3000 m³ / saat
Noise Level 72 dB(A)
Filter Efficiency 99 %
Dimensions (l x w x h) 655 x 755 x 935 mm
Weight (Net) 90 kg
