HK-6A

HK-6A -

Product Brochure : PDF
PRODUCT CODES
GENERAL
TECHNICAL SPECIFICATIONS
Accessories

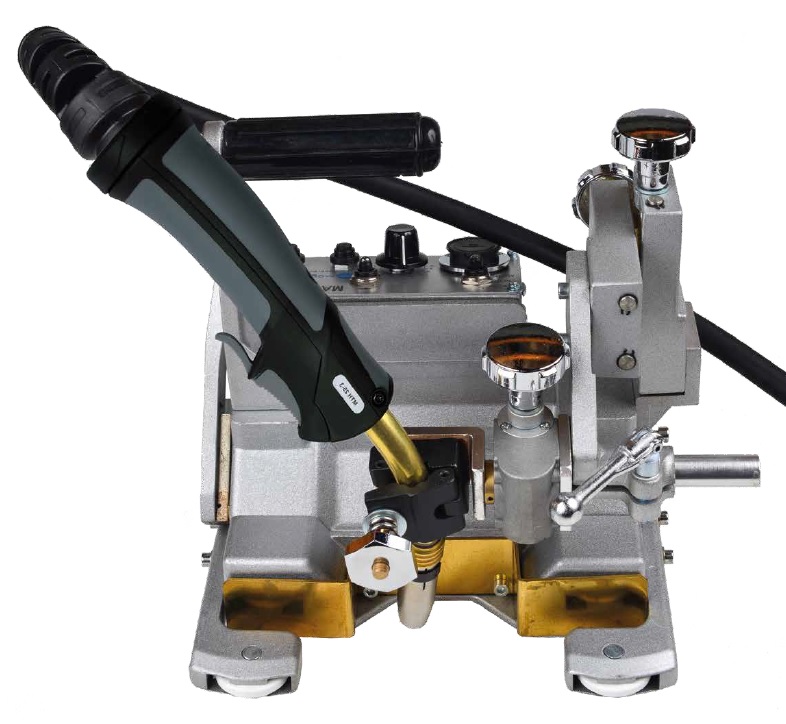

  • Welding tractor for mainly fillet weldings such as Dutch profiles in shipbuilding.
  • Portable but sturdy structure with well balanced center of gravity against tipping over, easy installation and provides smooth travelling.
  • Travels also vertical up with the help of the powerful magnet under the tractor.
  • Automatic stop function stops the tractor at any desired place.
  • 42V operating voltage for operational safety.
  • Communicates with any MIG/MAG welding machine and any MIG/MAG hand torch can be installed.


Power Source
Torch Angle 40-45 Standard °
Torch Angle Adjustment Unit 40-60 Standard °
Up Down Setting 35 mm
Carriage Force 30 kg
Carriage Speed 100-1500 mm/min
Monitoring System Magnet / Guide Wheel
Standard Tracking Height 45 mm
Weight (Net) 6,9 kg
Code Name Dimension Standard/Optional
7960000001 Torch Holder HK6W Optional
Code Dimension View
560M0000M0 HK-6A - View
