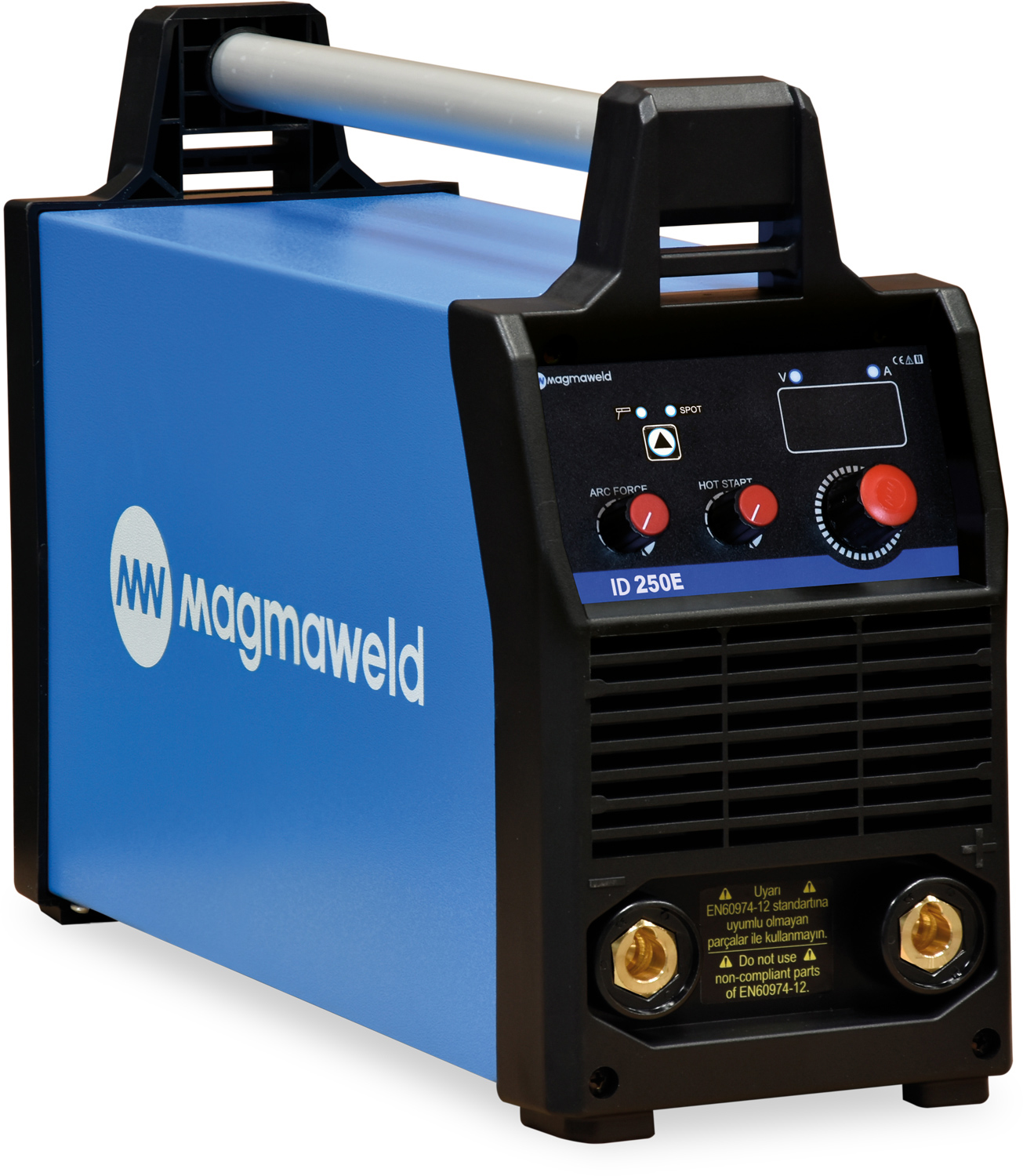

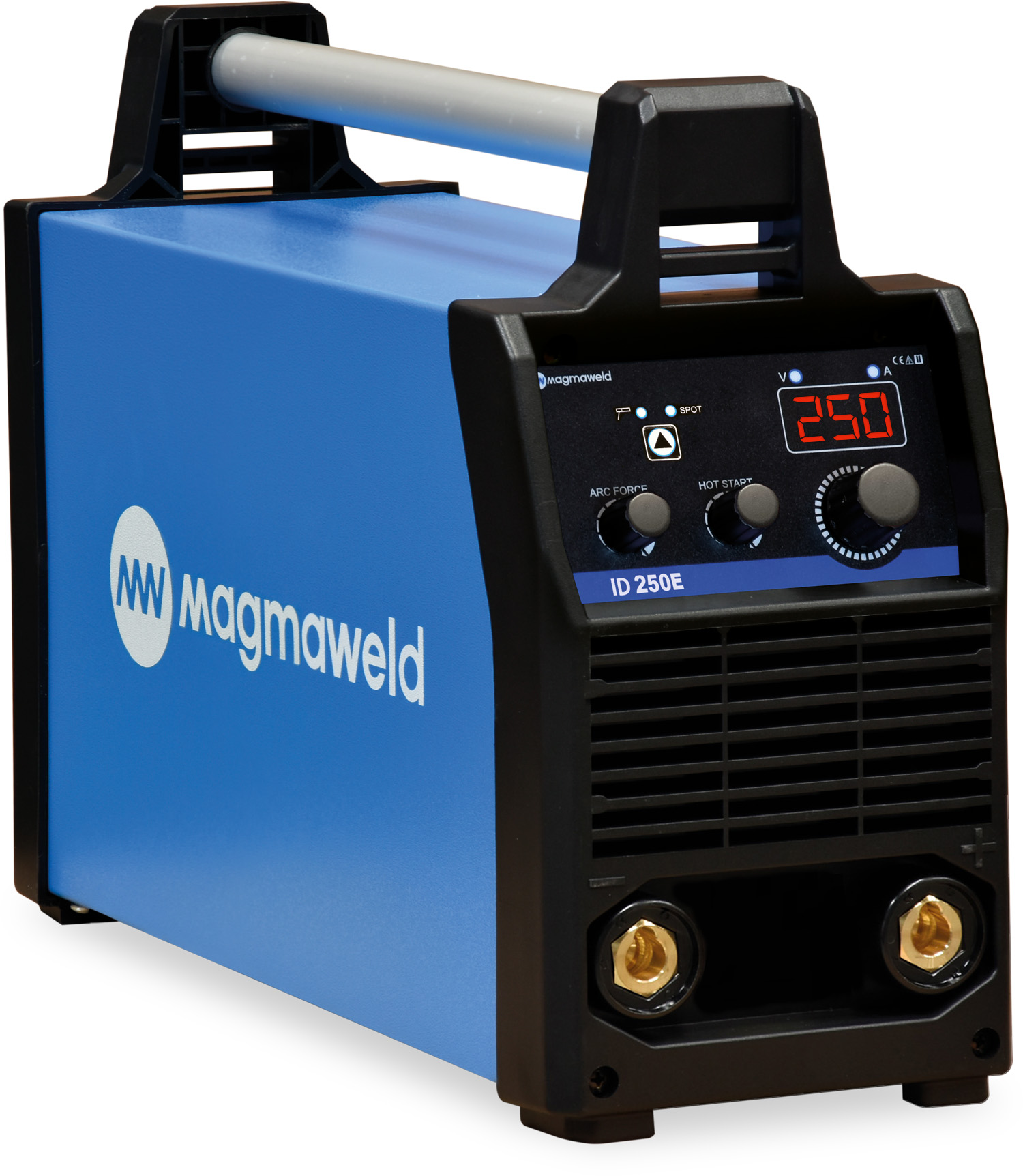

ID 250 E

GENERAL
TECHNICAL SPECIFICATIONS
Accessories
DOCUMENTS
  • Operates with 3 Phase 400V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 10%.
  • Due to inverter technology, energy efficiency is higher than the conventional machines.
  • Excellent welding characteristics for Rutile, Basic electrodes.
  • Advenced options; Hot Start for easy ignition, Arc Force for arc stability, Anti Stick to prevent electrode sticking
  • Scratch TIG welding on even thin metals due to its stable low currents.
  • Stable welding current without loss of performance due to electric line fluctuations or with long welding and electrical cables.
  • Fan cooling and thermal protection against overheating.
  • Suitable for mobile use with optional trolley or rack systems to group 4, 6 or 9 machines.
  • Standard accessories come with the machine.
Power Source
Mains Voltage (3Ph) 400 V
Input Power 12,7 (%35) kVA
Power Source Efficiency MMA 86,29 %
IDLE State Power Consumption 26 W
Welding Current Range 5 - 250 A
Nominal Welding Current 250 (%35) A
Open Circuit Voltage 75 VDC
Electrode Diameter 1.60 - 5.00 mm
Dimensions (l x w x h) 491 x 160 x 311 mm
Weight (Net) 10,75 kg
Protection Class IP23
Code Name Dimension Standard/Optional

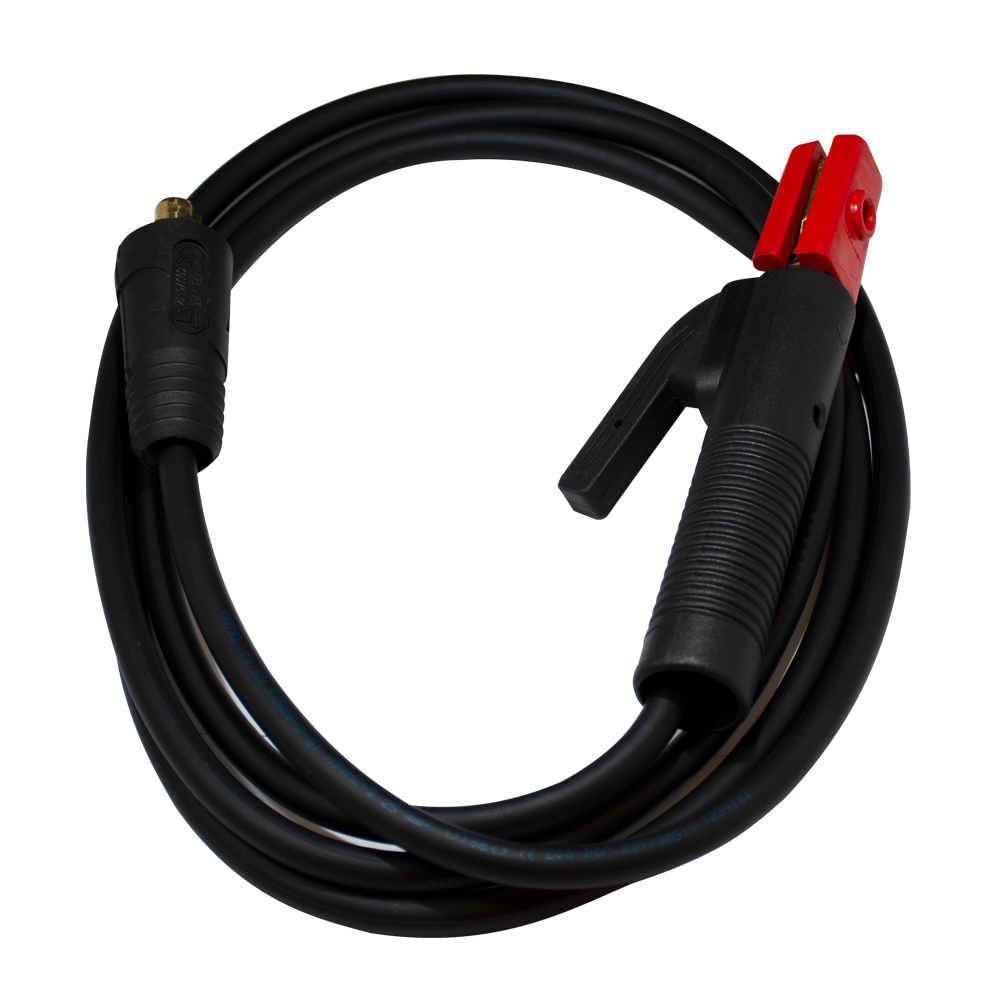

7906202503 ELECTRODE CLAMP AND CABLE 25mm2/3mt (35 socket) Standard
7905212503 EARTH CLAMP and CABLE 25mm2/3mt (35 socket) Standard
7900000809 ID SERIES RACK SHELF 9 UNITS GROUP Optional
7900000807 ID SERIES RACK SHELF Horizontal Group for 6 Sets Optional
7900000804 ID SERIES RACK SHELF 4 UNITS GROUP Optional

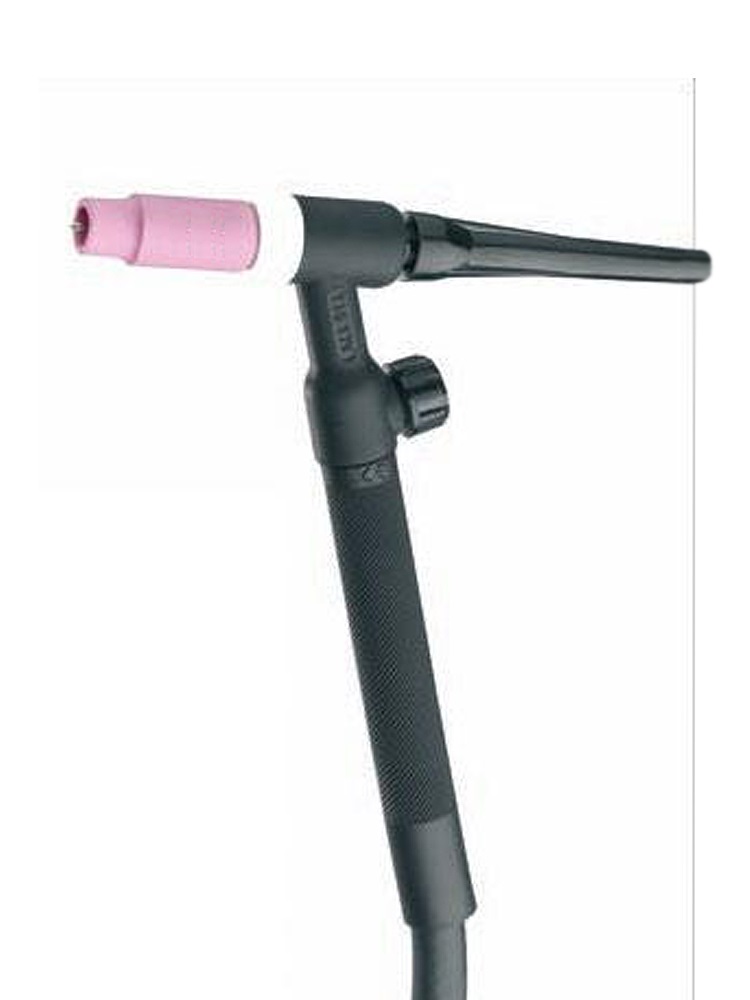

7111020008 LAVA TIG 20V-8 VALVE 200A (%35 DC) Optional
7111020004 LAVA TIG 20V-4 VALVE 200A (%60 DC) Optional
Product Brochure
PDF
Operating Manual
PDF Search
Additional Documents
Quick Start

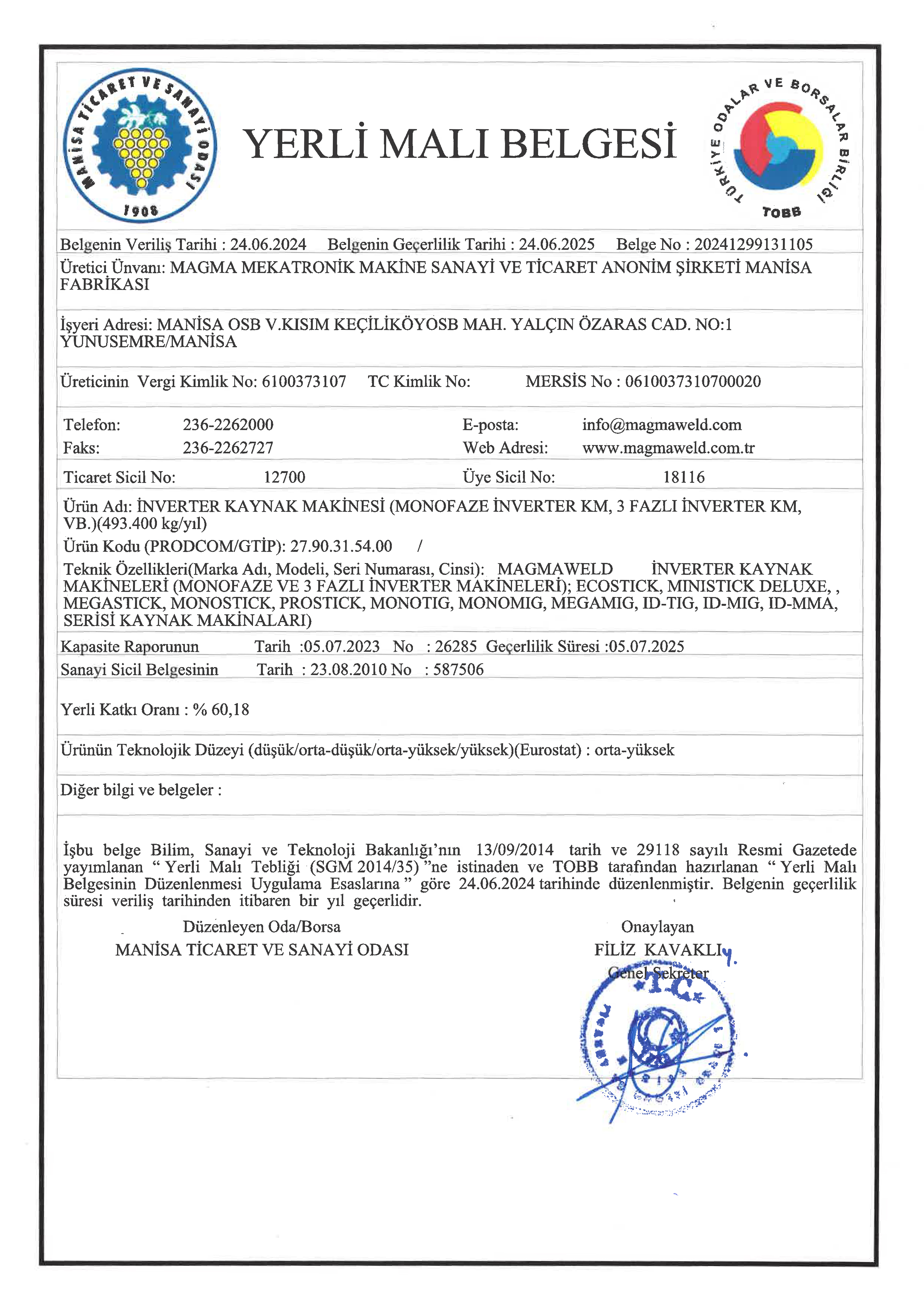

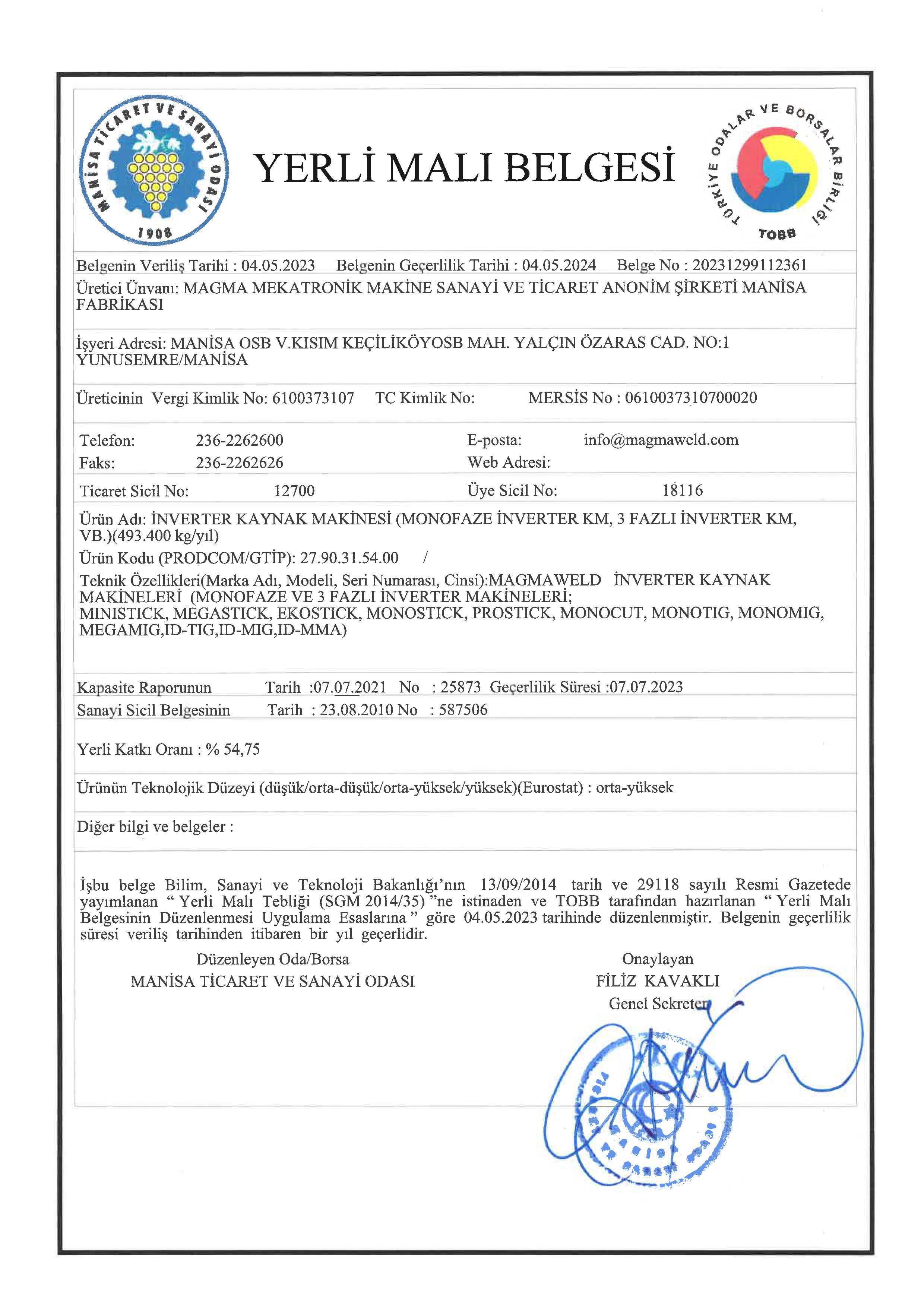

Approvals & Certificates

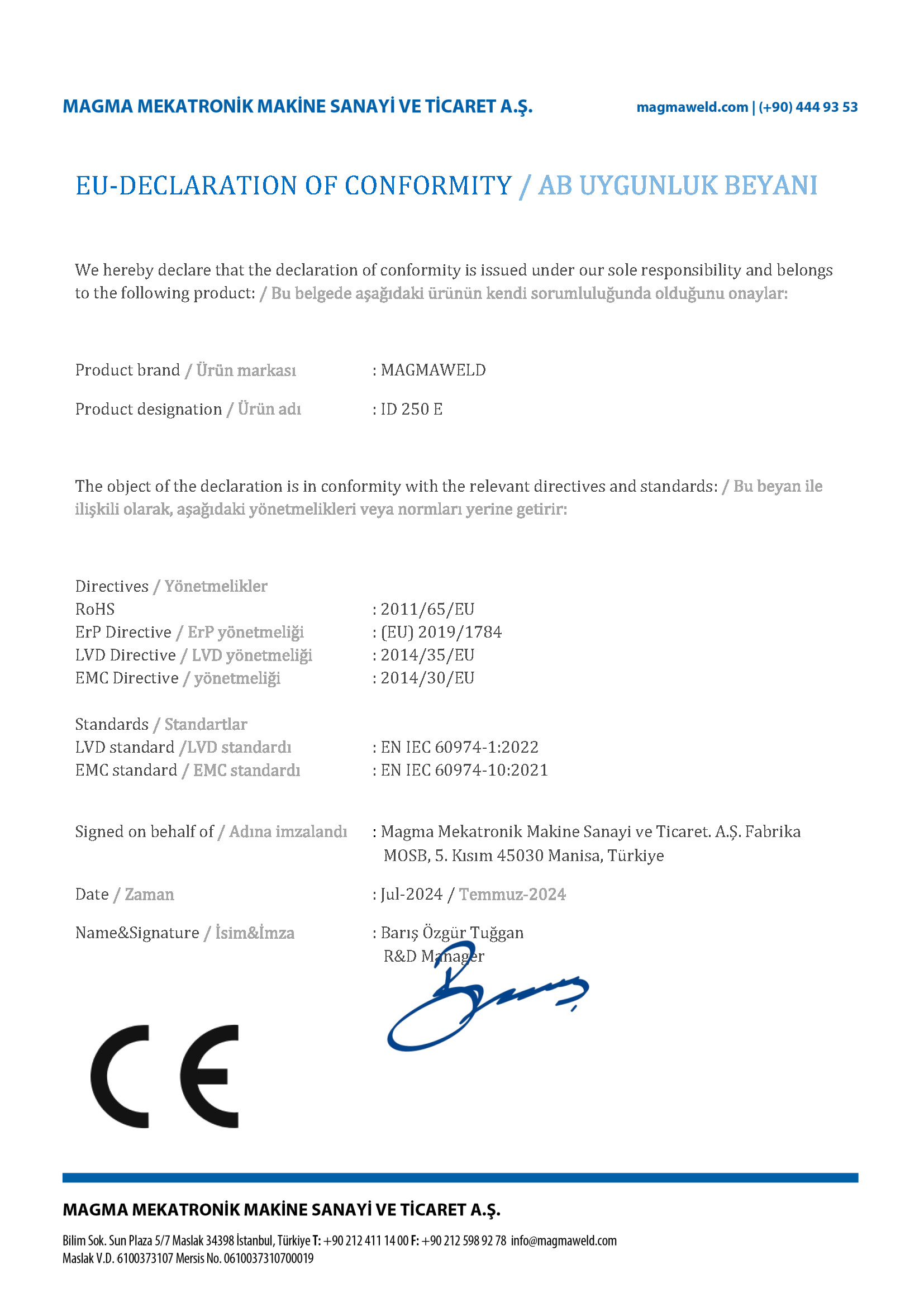

Turkish Product CE EAC
