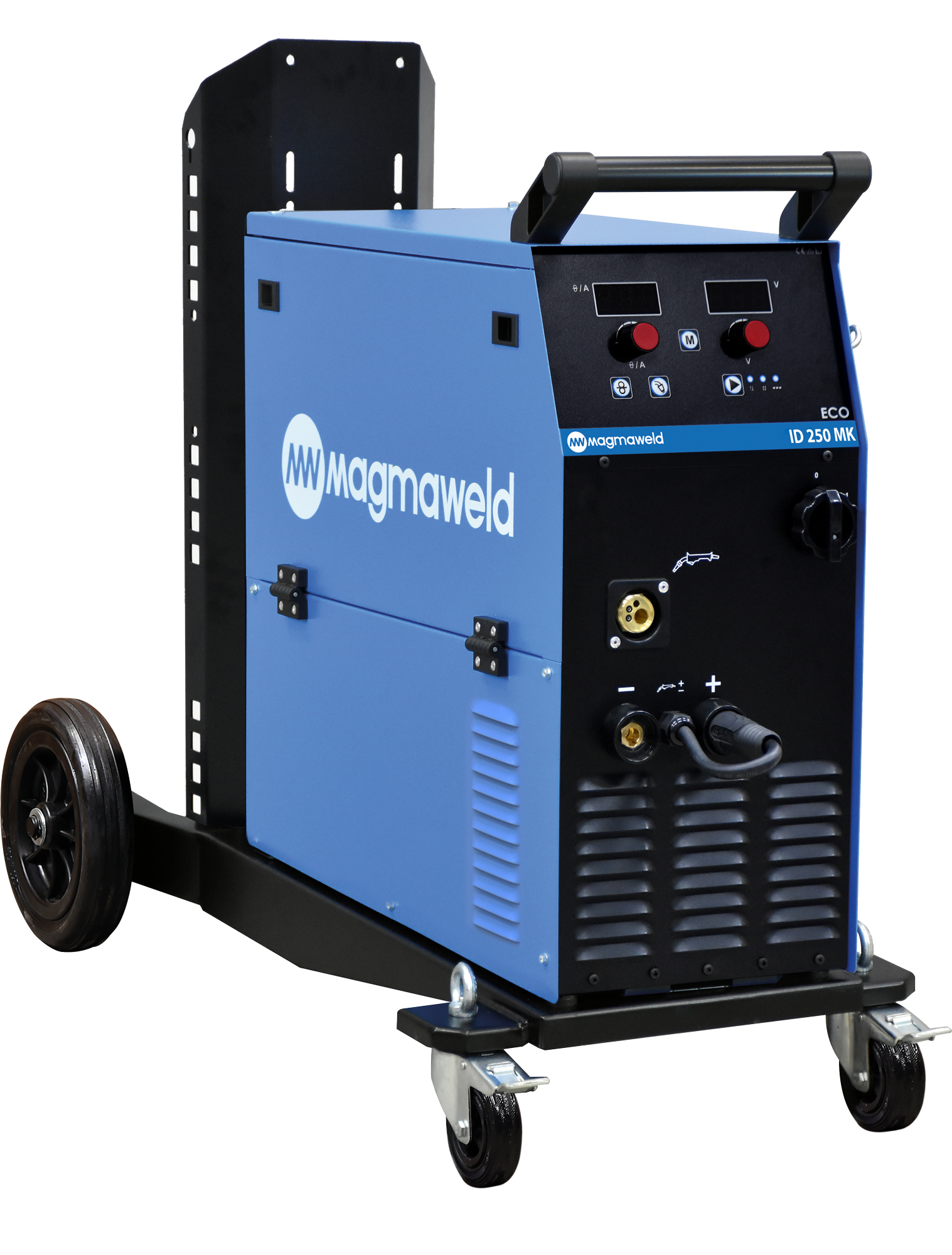

ID 250 MK ECO

GENERAL
TECHNICAL SPECIFICATIONS
Accessories
DOCUMENTS

  • Operates with 3 Phase 400V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.

  • Due to inverter technology, energy efficiency is higher than the conventional machines.

  • Excellent welding characteristics with all types of solid and flux cored wires with CO2 or Mix gases.

  • 4 Wheel Drive system, offers very powerful feedability for longer torches and offers less deformation on soft wires such as aluminum and flux cored wires.

  • Welding voltage, wire feed speed (welding current) is adjusted from the panel in front of the wire feeder.

  • Optimum welding parameters can be obtained from the printed table inside of the wire feed cabinet.

  • Manual wire feeding & gas valve buttons, Trigger Mode (2/4), Spot mode are available on the wire feeder.

  • Soft Start, Pre-gas, Post-gas, Crater Filling, Burn-Back, Flow sensor settings are adjusted from the digital panel of the wire feeding system.

  • ø300 mm, ø270 mm and ø200 mm spools and drums of any size can be used.

  • 24V AC outlet for CO2 gas heater.

  • Built in gas cylinder platform with large wheels to ease mobility in workshops.

  • Protected against voltage fluctuations.

  • Designed also for outdoor use, protection class is IP 23.

Power Source
Mains Voltage (3Ph) 400 V
Input Power 11.9 kVA
Power Source Efficiency 85,18 %
IDLE State Power Consumption 23 W
Welding Current Range 50-250 A
Nominal Welding Current 250 A (%40) A
Open Circuit Voltage 63 V
Dimensions (l x w x h) 1143 x 528 x 966 mm
Weight (Net) 82 kg
Protection Class IP23
Wire Feeder System
Wire Feeding Speed 1-24 m/min
Welding Wire Diameter 0.60-1.20 mm
Torch Trigger Control 2/4
Code Name Dimension Standard/Optional
7907000002 Gas Hose 2 METRE Standard

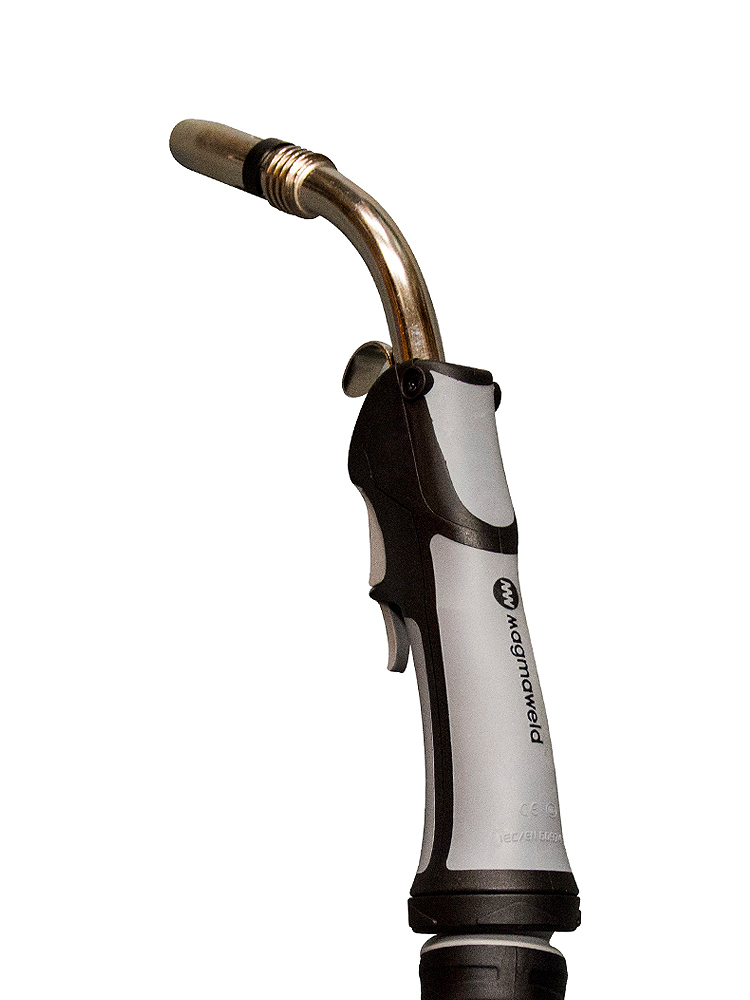

7120020003 LAVA MIG 25-3 230A (%60 CO2) - 3m Standard
7020001004 ARGON PRESSURE REGULATOR G5/8'' Bottom Adjustment Standard
7120040003 LAVA MIG 40-3 340A (%60 CO2) - 3m Optional
7120035003 LAVA MIG 35-3 320A (%60 CO2) - 3m Optional
7020009003 CO2 GAS HEATER MAGMAWELD (24V AC-50W) Optional
7020001005 CO2 PRESSURE REGULATOR W21,8x1/14'' Bottom Adjustment Optional
