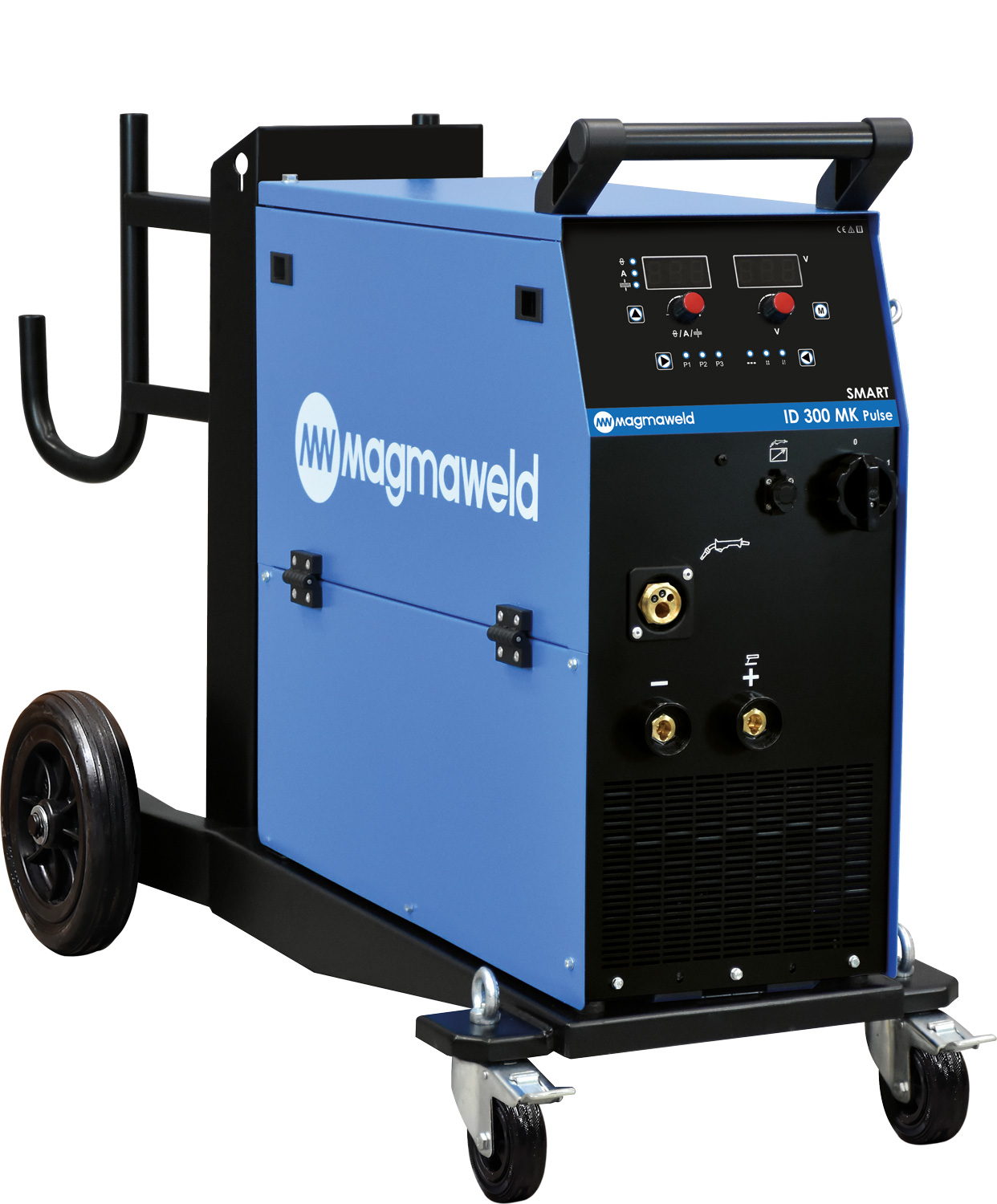

ID 300 MK PULSE SMART

ID 300 MK PULSE SMART - COMPACT

Operates with 3 Phase 400 V 50/60 Hz networks & generators. Tolerates voltage fluctuations upto %15.
Excellent welding characteristics with all types of solid and flux cored wires.
Constant Current & Constant Voltage (CC/CV). Power sources enabling operators to use stick electrode and carbon gauging processes as well as the MIG/MAG process.
Ready to weld with any type of ROBOT. According to the robot type, digital & analog communication is possible.
magNET ready: Welding and environmental data is stored in real time scale. While certain values are directly read on the LCD panel, more information like OEE and WP/Quality information could be monitored and stored on the magNET platform (Optional).
3 Adjustment Modes; "Synergic, Classic, Smart". makes it especially easy for operators who used to weld with conventional equipment.
Synergic feature for optimum welding parameter selection through the LCD menu by Wire Type, Wire Size, Gas Type, and Thickness selection.
Trigger Mode (2/4), Soft Start for spatter free arc ignition, Pre-Gas, Post-Gas and Crater Filling for automation, Burn-Back time for anti sticking and Spot On/Off timers can be set through the LCD panel.
Welding Voltage, Welding Current or Wire Feeding Speed, according to the selected mode can be set or fine tuned by potentiometers and confortably monitored by separate big digital displays.
The 2 way button for Inching and Gas Purge is inside the wire feeder compartment.
Separate Wire Feeding System for spools 300, 270 and 200 mm in diameters and special wire inlet for drums.
The 4-wheel drive system assures good feedablity with longer torches and less deformation of delicate wires like aluminum and flux cored wires.
Built-in trolly with gas bottle platform and 24V DC electric socket for CO gas heater.
Water cooling unit is at the base of the trolly and it is powerful enough to support in warm climates and long harness.
Outer case is made out of steel and coated with electrostatic powder painting for a corroson free longer service life.
Protection Class is IP21S.
Protected against missing phase or excessvely high or low line voltage.
Fan cooled and protected against overheating.
Smart Cooling enables all turning parts, like fans and pump motors, work according to the heating levels. This function signifciantly reduces nose levels, dust accumulation inside of the equipment, energy consumption and service needs

Power Source
Mains Voltage (3Ph)	400	V
Input Power from Mains	14.7 (%40)	kVA
Power Source Efficiency	MMA 86,21 / MIG 87,01	%
IDLE State Power Consumption	23	W
Nominal Welding Current	300 (%40)	A
Welding Current Range	50 - 300	A
Open Circuit Voltage	82	V
Dimensions (l x w x h)	1138 x 528 x 837	mm
Weight (Net)	86	kg
Protection Class	IP21
Wire Feeder System
Wire Feeding Speed	1-24	m/min
Torch Trigger Control	2/4
Welding Wire Diameter	0.80- 1.20	mm

Code	Name	Dimension	Standard/Optional
7907000002	Gas Hose	2 METRE	Standard
7905203505	EARTH CLAMP and CABLE	35mm2/5mt (35 socket)	Standard
7120040003	LAVA MIG 40-3	340A (%60 CO2) - 3m	Optional
7120035003	LAVA MIG 35-3	320A (%60 CO2) - 3m	Optional
7020009003	CO2 GAS HEATER	MAGMAWELD (24V AC-50W)	Optional
7020001005	CO2 PRESSURE REGULATOR	W21,8x1/14'' Bottom Adjustment	Optional
7020001004	ARGON PRESSURE REGULATOR	G5/8'' Bottom Adjustment	Optional

Product Brochure

PDF

Operating Manual

PDF Search

Additional Documents

Wire Feed Unit Quick User Manual

Approvals & Certificates

EAC Turkish Product CE

Code	Dimension	View
524230AK00	ID 300 MK PULSE SMART - COMPACT	View
