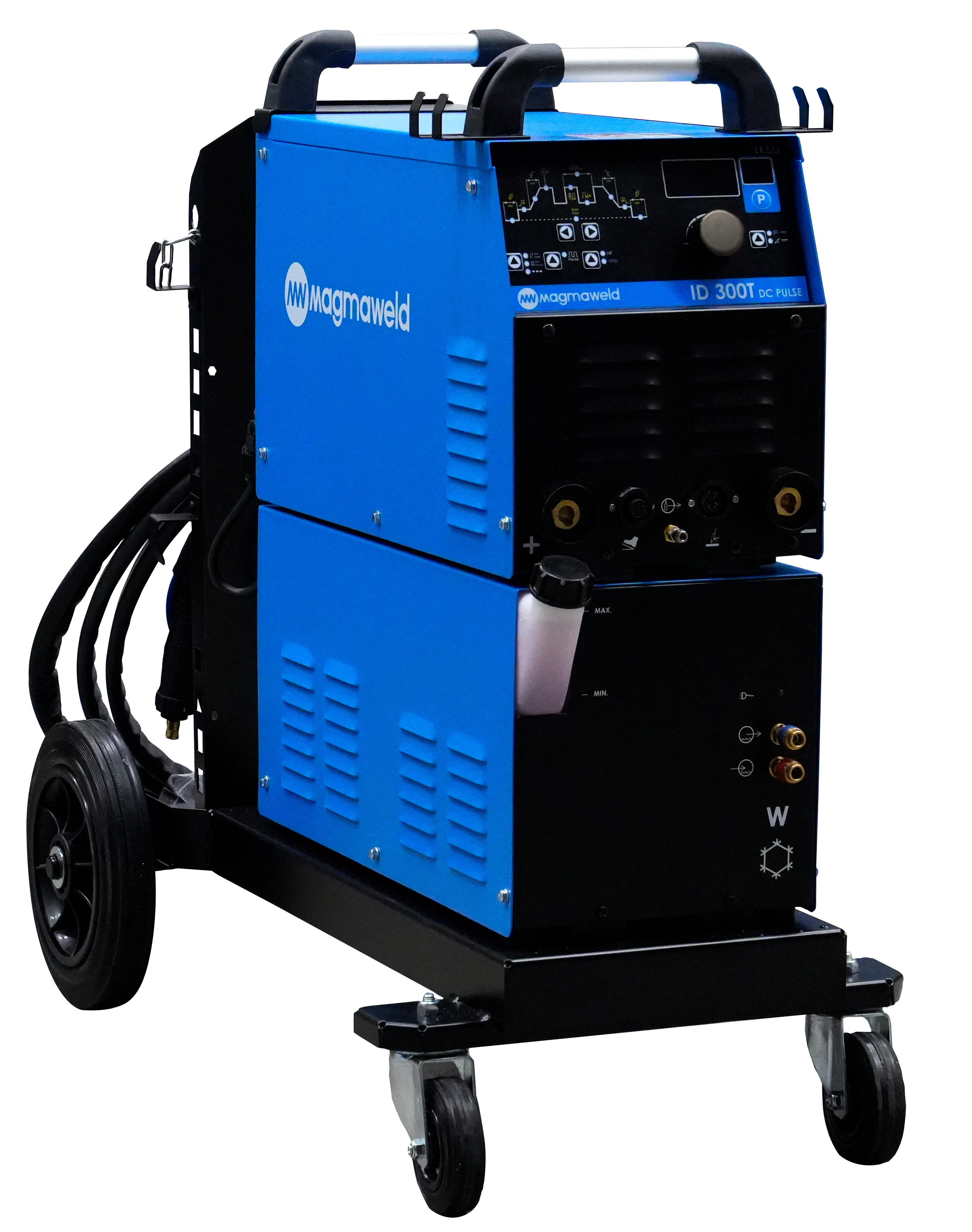

ID 300 TW DC PULSE

ID 300 TW DC PULSE - 4m Torç

Operates with 3 Phase 400V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
Due to inverter technology, energy efficiency is higher than the conventional machines.
TIG arc ignition by HF or Lift TIG.
Excellent welding of thin metals due to very stable low current performance and pulse abilities.
Advanced TIG settings; Pre-Gas, Slope-Up, Welding Current, Pulse Frequency and Width, Slope-Down, Post-Gas and Crater Filling.
Offers 10 JOB memory.
Interval timer for spot welding.
2/4 Triggering and Current Adjustment via torch and foot pedal.
Welding parameters are monitored on the digital display.
Excellent welding characteristics for wide range of stick electrodes.
Advanced Stick Electrode options; Hot Start for easy ignition, Arc Force for arc stability, Anti Stick to prevent electrode sticking.
VRD for hazardous environments such as mines.
Stable welding current without loss of performance due to electric line fluctuations or with long welding and electrical cables.
Optional gas cylinder platform with large wheels to ease mobility in workshops.
Fan cooling and thermal protection against overheating.
Standard accessories come with the machine.

Power Source
Mains Voltage (3Ph)	400	V
Input Power from Mains (MMA)	16.1 (%30)	kVA
Input Power from Mains (TIG)	12.3 (%30)	kVA
Power Source Efficiency	MMA 86,74 / TIG 85,63	%
IDLE State Power Consumption	29	W
Welding Current Range	5 - 300	ADC
Nominal Welding Current	300 (%30)	ADC
Open Circuit Voltage	85	VDC
Electrode Diameter	1.60 - 5.00	mm
Tungsten Electrode Diameter	1.00 - 2.40	mm
Dimensions (l x w x h)	598 x 252 x 661	mm
Weight (Net)	45	kg
Cooling Type	SU
Protection Class	IP23

Code	Name	Dimension	Standard/Optional
7910000200	TIG MACHINE TROLLEY	ID SERIES 4 WHEEL	Standard
7907000002	Gas Hose	2 METRE	Standard
7905212503	EARTH CLAMP and CABLE	25mm2/3mt (35 socket)	Standard
7110038004	LAVA TIG 18W-4	380A (%100 DC) - 4m	Standard
7910000530	350A TIG TORCH ACCESSORIES/WATER - 4m	LAVA TIG 18W-4 + REGULATOR	Optional
7910000140	TIG PEDAL	ID TIG-MONOTIG 220IP AKIM AYARLI	Optional
7910000120	TIG PEDAL	ID TIG-MONOTIG 220IP (ON/OFF)	Optional
7906203503	ELECTRODE CLAMP AND CABLE	35mm2/3mt (35 socket)	Optional
71100380R8	LAVA TIG 18WR-8	380A (%100 DC) KUMANDALI- 8m	Optional
71100380R4	LAVA TIG 18WR-4	380A (%100 DC) KUMANDALI - 4m	Optional
7110038008	LAVA TIG 18W-8	380A (%100 DC) - 8m	Optional
7110018008	LAVA TIG 26-8	180A (%35 DC) - 8m	Optional
7110018004	LAVA TIG 26-4	180A (%35 DC) - 4m	Optional
7020001004	ARGON PRESSURE REGULATOR	G5/8'' Bottom Adjustment	Optional

Product Brochure

PDF

Operating Manual

PDF Search

Additional Documents

Quick Start

Approvals & Certificates

CE EAC Turkish Product

Code	Dimension	View
513230P0M1	ID 300 TW DC PULSE - 4m Torç	View
