Id 300 Tw Dc Pulse

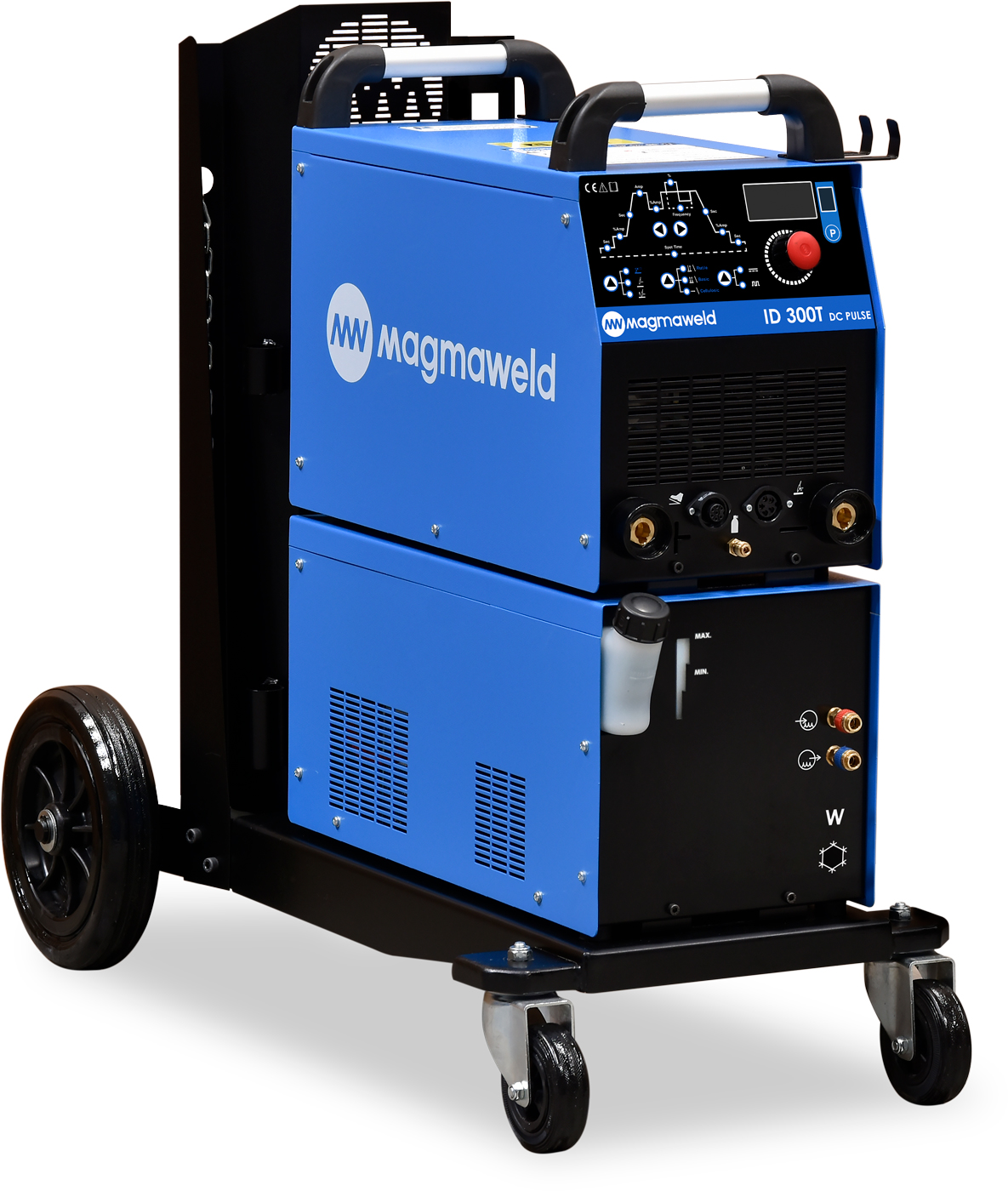

ID 300 TW DC PULSE

GENERAL
Technical Details
Accessories
DOCUMENTS
  • Operates with 3 Phase 400V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
  • Due to inverter technology, energy efficiency is higher than the conventional machines.
  • TIG arc ignition by HF or Lift TIG.
  • Excellent welding of thin metals due to very stable low current performance and pulse abilities.
  • Advanced TIG settings; Pre-Gas, Slope-Up, Welding Current, Pulse Frequency and Width, Slope-Down, Post-Gas and Crater Filling.
  • Offers 10 JOB memory.
  • Interval timer for spot welding.
  • 2/4 Triggering and Current Adjustment via torch and foot pedal.
  • Welding parameters are monitored on the digital display.
  • Excellent welding characteristics for wide range of stick electrodes.
  • Advanced Stick Electrode options; Hot Start for easy ignition, Arc Force for arc stability, Anti Stick to prevent electrode sticking.
  • VRD for hazardous environments such as mines.
  • Stable welding current without loss of performance due to electric line fluctuations or with long welding and electrical cables.
  • Optional gas cylinder platform with large wheels to ease mobility in workshops.
  • Fan cooling and thermal protection against overheating.
  • Standard accessories come with the machine.
Power Source
Mains Voltage (3Ph) 400 V
Input Power (MMA) 16.1 (%30) kVA
Input Power (TIG) 12.3 (%30) kVA
Welding Current Range 5 - 300 ADC
Nominal Welding Current 300 (%30) ADC
Open Circuit Voltage 85 VDC
Electrode Diameter 1.60 - 5.00 mm
Tungsten Electrode Diameter 1.00 - 2.40 mm
Dimensions (l x w x h) 598 x 252 x 661 mm
Weight (Net) 45 KG
Cooling Method SU
Protection Class IP21
CODE Pcs Dimension Standard/Optional
7910000200 TIG TASIMA ARABASI(150A MIG AKSESUAR KITI) ID SERIES 4 WHEEL STANDARD
7907000002 GAZ HORTUMU 2 Meters STANDARD
7905212503 Ground Clamp And Cable 25mm2/3mt (35 socket) STANDARD
7110038004 LAVA TIG 18W-4 380A (%100 DC) - 4m STANDARD
7910000530 350A SULU TIG AKSESUAR KİTİ - 4m LAVA TIG 18W-4 + REGULATOR Optional
7910000140 TIG AYAK PEDALI (150A MIG AKSESUAR KITI) ID TIG-MONOTIG 220IP AKIM AYARLI Optional
7910000120 TIG AYAK PEDALI (150A MIG AKSESUAR KITI) ID TIG-MONOTIG 220IP (ON/OFF) Optional
7906203503 Electrode Clamp And Cable 35mm2/3mt (35 socket) Optional
71100380R8 LAVA TIG 18WR-8 380A (%100 DC) KUMANDALI- 8m Optional
71100380R4 LAVA TIG 18WR-4 380A (%100 DC) KUMANDALI - 4m Optional
7110038008 LAVA TIG 18W-8 380A (%100 DC) - 8m Optional
7110018008 LAVA TIG 26-8 180A (%35 DC) - 8m Optional
7110018004 LAVA TIG 26-4 180A (%35 DC) - 4m Optional
7020001004 Argon Regulator G5/8'' ALTTAN AYARLI Optional
Product introduction
PDF
Operating Manual
PDF Search
Additional Documents
Quick Start

Approvals & Certificates
YERLİ MALI EAC CE
