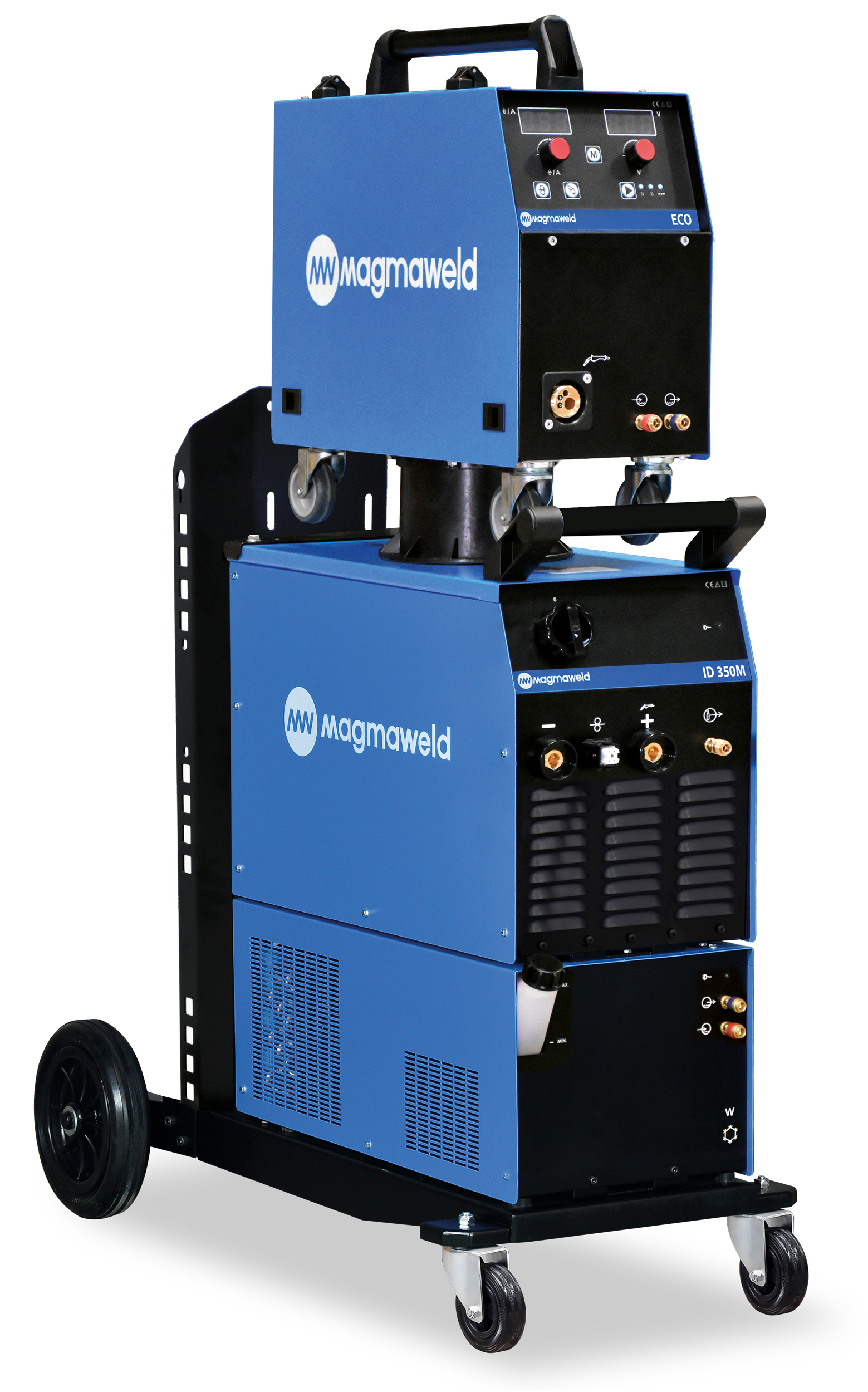

ID 350 MW ECO

GENERAL
TECHNICAL SPECIFICATIONS
Accessories
DOCUMENTS
  • Operates with 3 Phase 400V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
  • Due to inverter technology, energy efficiency is higher than the conventional machines.
  • Excellent welding characteristics with all types of solid and flux cored wires with CO2 or Mix gases.
  • 4 Wheel Drive system, offers very powerful feedability for longer torches and offers less deformation on soft wires such as aluminum and flux cored wires.
  • Welding voltage, wire feed speed (welding current) is adjusted from the panel in front of the wire feeder.
  • Optimum welding parameters can be obtained from the printed table inside of the wire feed cabinet.
  • Manual wire feeding & gas valve buttons, Trigger Mode (2/4), Spot mode are available on the wire feeder.
  • Soft Start, Pre-gas, Post-gas, Crater Filling, Burn-Back, Flow Sensor settings are adjusted from the digital panel of the wire feeding system.
  • ø300 mm, ø270 mm and ø200 mm spools and drums of any size can be used.
  • 24V AC outlet for CO2 gas heater.
  • Built in gas cylinder platform with large wheels to ease mobility in workshops.
  • Protected against voltage fluctuations.
  • Designed also for outdoor use, protection class is IP 23.
  • Water cooling unit for water cooled torches provides powerful cooling even at very hot climates. (Water-cooled (W) models)
  • Standard accessories come with the machine.
Power Source
Mains Voltage (3Ph) 400 V
Input Power 18.9 (%40) kVA
Power Source Efficiency 85,21 %
IDLE State Power Consumption 23 W
Welding Current Range 50-350 A
Nominal Welding Current 350 (%40) A
Open Circuit Voltage 62 V
Dimensions (l x w x h) 1170 x 528 x 1430 mm
Weight (Net) 120 kg
Protection Class IP23
Wire Feeder System
Welding Wire Diameter 0.60-1.20 mm
Torch Trigger Control 2/4
Wire Feeding Speed 1-24 m/min
Dimensions (l x w x h) 584 x 284 x 553 mm
Weight (Net) 24 kg
Water Cooling Unit
Cooling Power 1.02 kW
Dimensions (l x w x h) 732 x 293 x 302 mm
Weight (Net) 24 kg
Code Name Dimension Standard/Optional
7907000002 Gas Hose 2 METRE Standard
7905203505 EARTH CLAMP and CABLE 35mm2/5mt (35 socket) Standard
7120050003 LAVA MIG 50W-3 500A (%100 CO2) - 3m Standard
7020001004 ARGON PRESSURE REGULATOR G5/8'' Bottom Adjustment Standard
7020009003 CO2 GAS HEATER MAGMAWELD (24V AC-50W) Optional
7020001005 CO2 PRESSURE REGULATOR W21,8x1/14'' Bottom Adjustment Optional
Product Brochure
PDF
Operating Manual
PDF Search
Additional Documents
Wire Feed Unit Quick User Manual

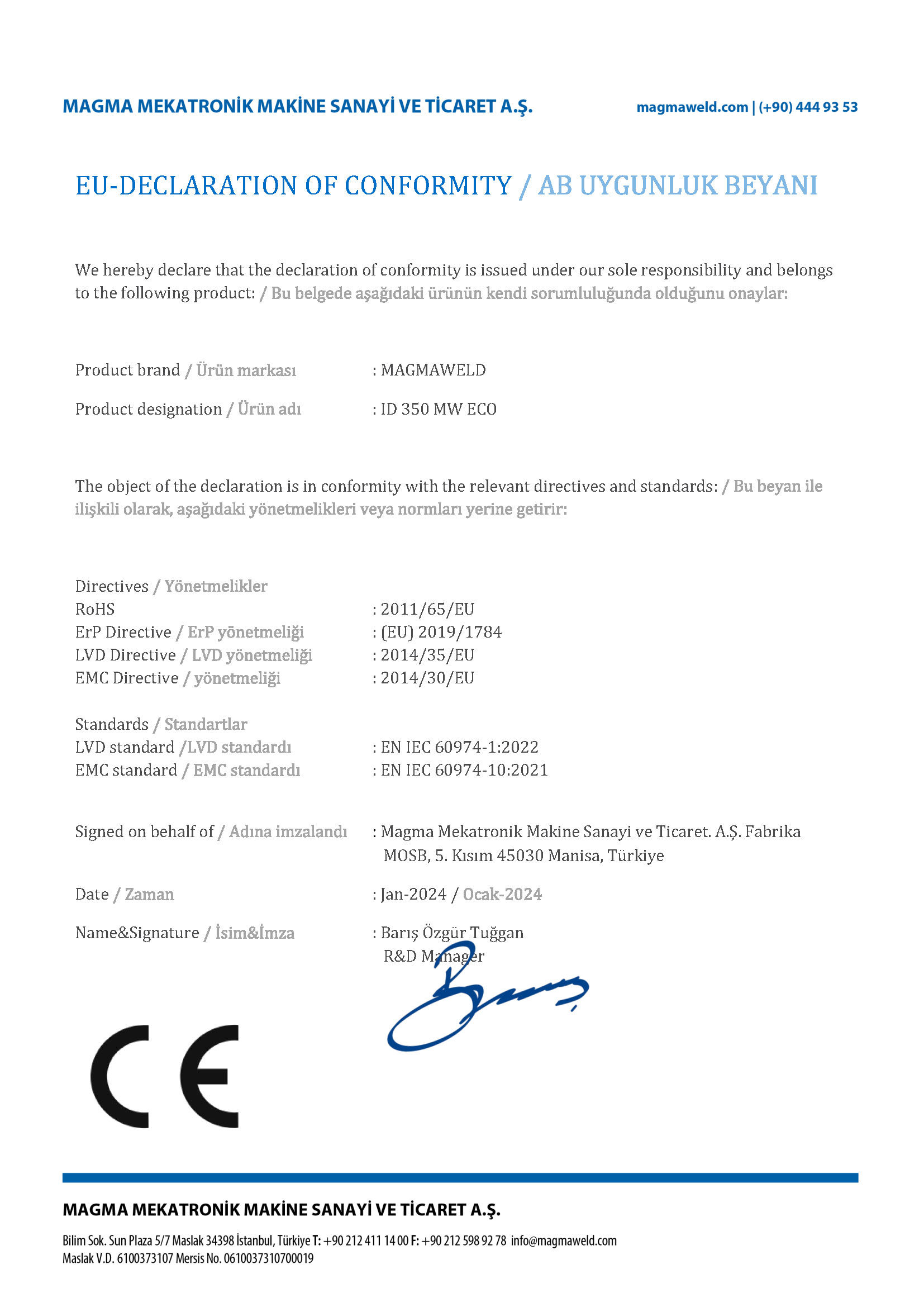

Approvals & Certificates

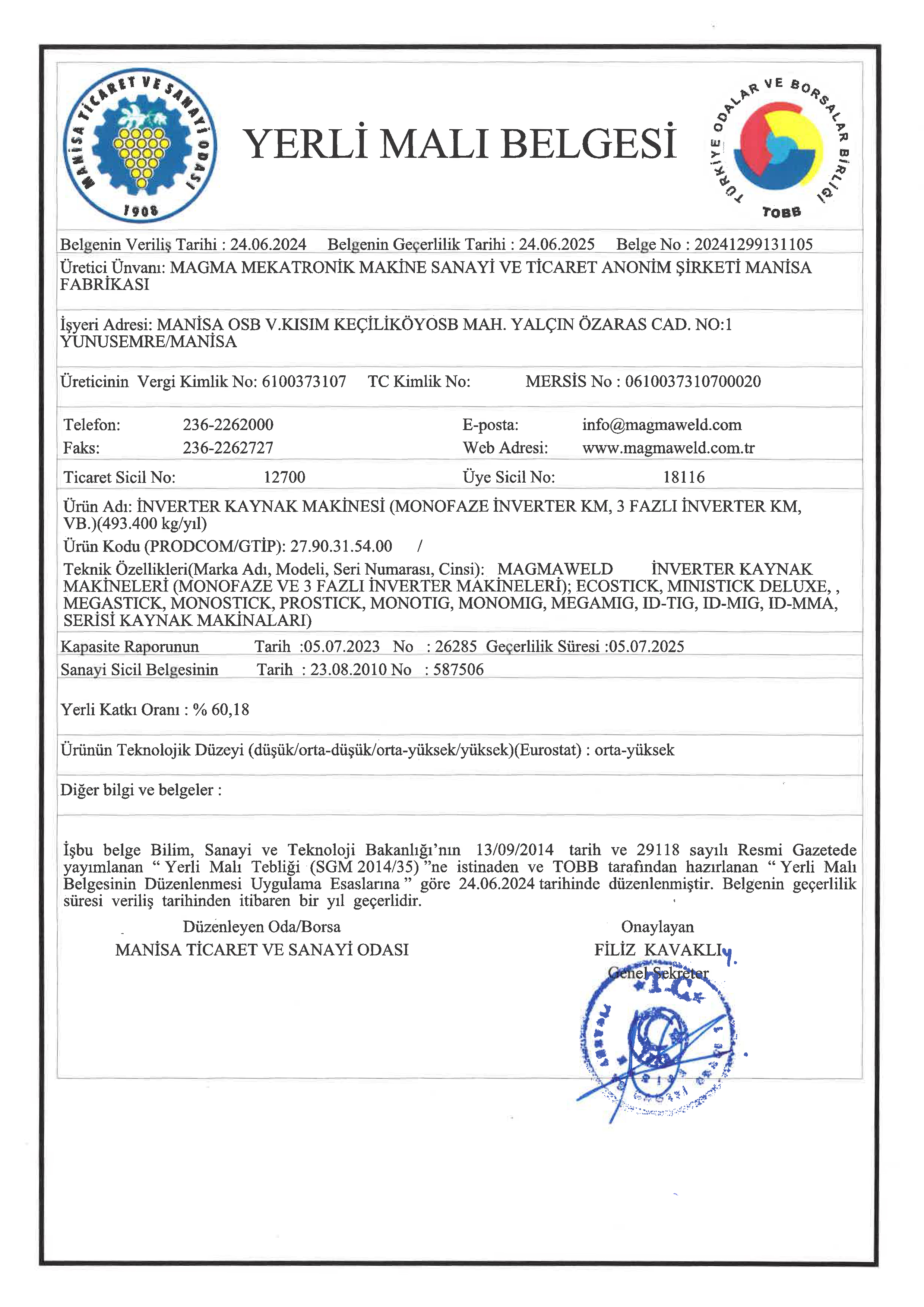

CE Turkish Product
