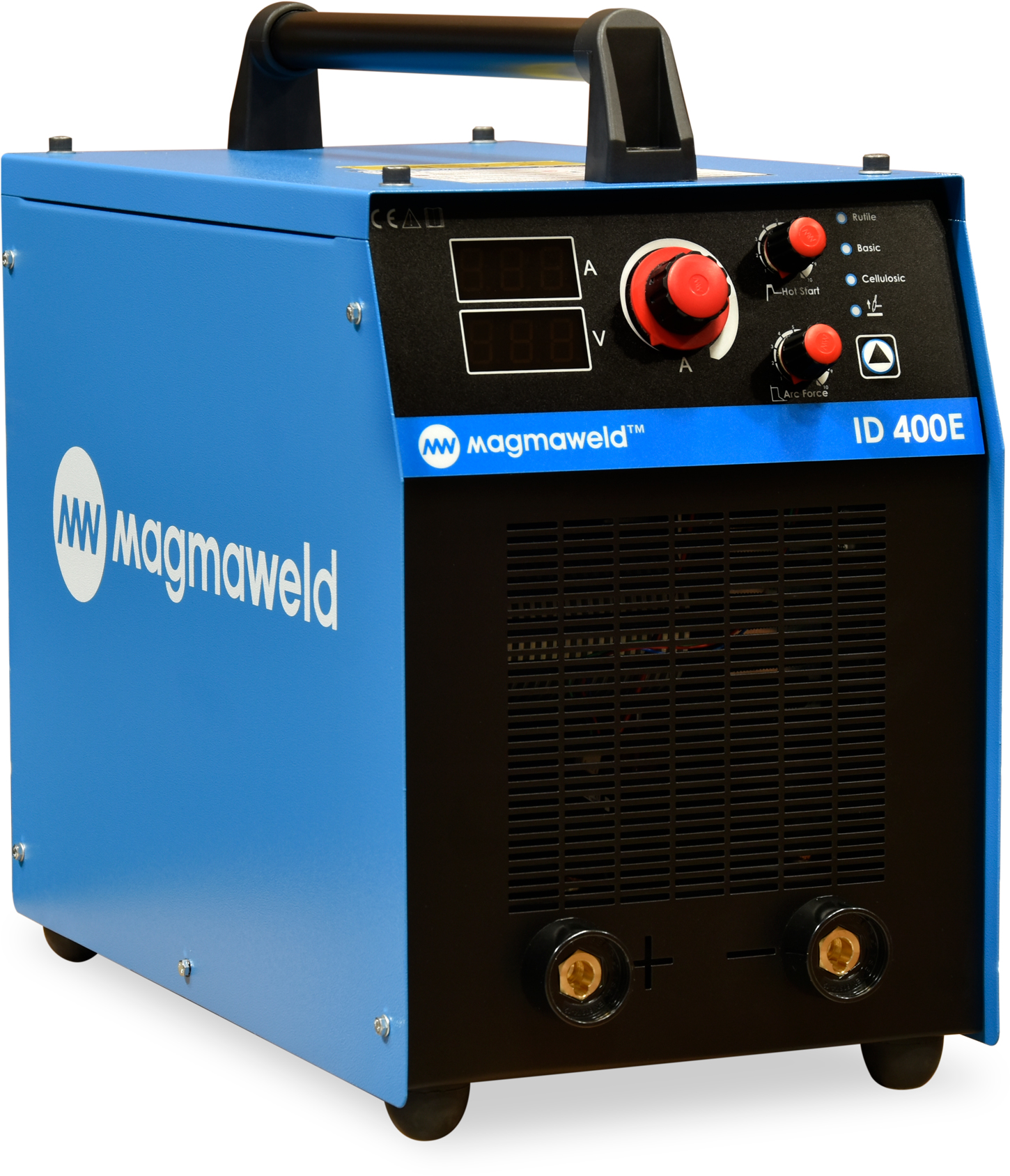

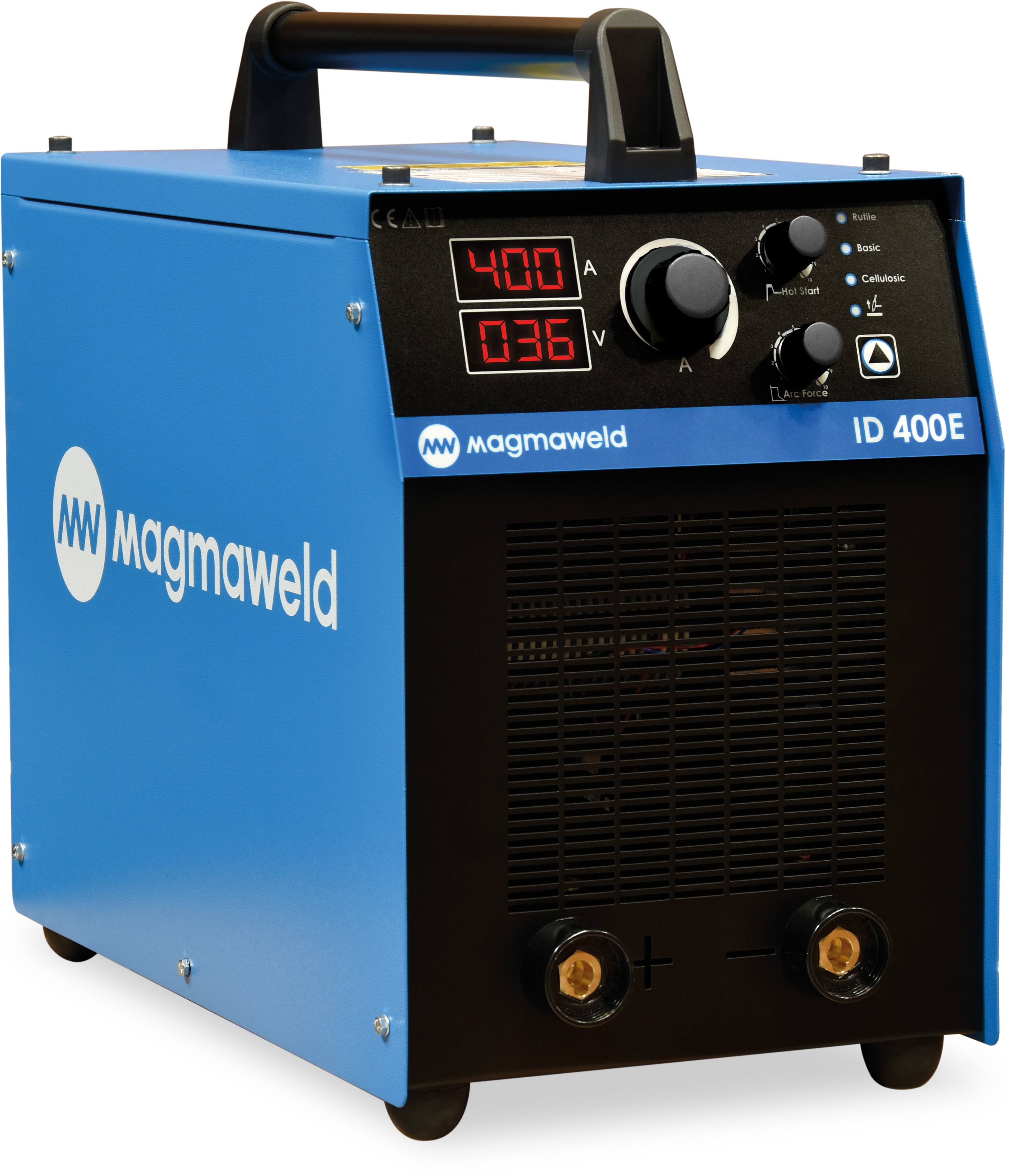

ID 400 E

GENERAL
TECHNICAL SPECIFICATIONS
Accessories
DOCUMENTS
  • Operates with 3 Phase 400V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 10%.
  • Due to inverter technology, energy efficiency is higher than the conventional machines.
  • Excellent welding characteristics for Rutile, Basic and Cellulosic electrodes.
  • Welding current is adjusted precisely by the potentiometer knob on the front panel or by the remote control. Preset values and welding current and voltage values are digitally monitored from the front panel.
  • Advenced options; Hot Start for easy ignition, Arc Force for arc stability, Anti Stick to prevent electrode sticking
  • Scratch TIG welding on even thin metals due to its stable low currents.
  • Stable welding current without loss of performance due to electric line fluctuations or with long welding and electrical cables.
  • Fan cooling and thermal protection against overheating.
  • Suitable for mobile use with optional trolley or rack systems to group 4, 6 or 9 machines.
  • Standard accessories come with the machine.
Power Source
Mains Voltage (3Ph) 400 V
Input Power 22.9 (%35) kVA
Power Source Efficiency MMA 87,26 / TIG 86,42 %
Welding Current Range 5 - 400 A
IDLE State Power Consumption 17 W
Nominal Welding Current 400 (%35) A
Open Circuit Voltage 86 V
Electrode Diameter 1.60 - 6.00 mm
Dimensions (l x w x h) 585 x 307 x 515 mm
Weight (Net) 32 kg
Protection Class IP21
Code Name Dimension Standard/Optional
7906203503 ELECTRODE CLAMP AND CABLE 35mm2/3mt (35 socket) Standard

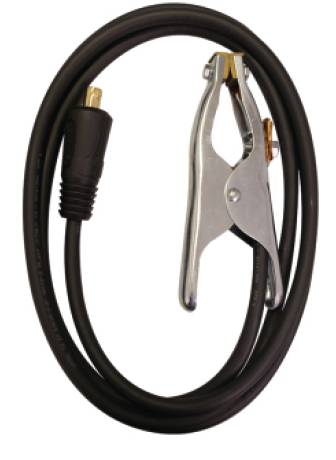

7905203503 EARTH CLAMP and CABLE 35mm2/3mt (35 socket) Standard
7900000809 ID SERIES RACK SHELF 9 UNITS GROUP Optional
7900000807 ID SERIES RACK SHELF Horizontal Group for 6 Sets Optional
7900000806 ID SERIES RACK SHELF Vertical Group for 6 Sets Optional
7900000804 ID SERIES RACK SHELF 4 UNITS GROUP Optional
7900000601 TAŞIMA ARABASI ID400E/ID800E 650X750X775 Optional

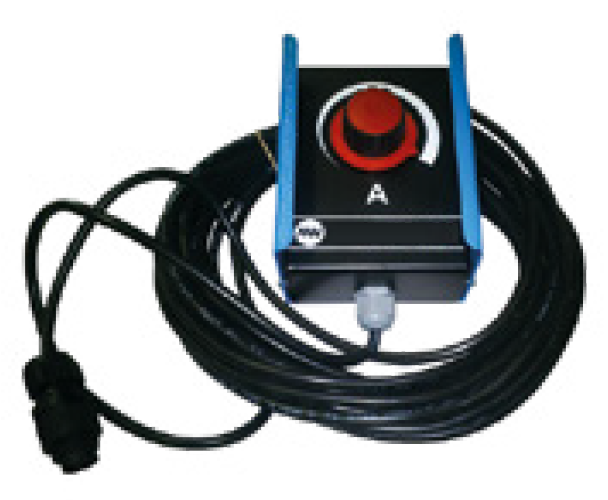

7900000250 REMOTE CONTROL (RD/ID) 50MT Optional
7900000240 REMOTE CONTROL (RD/ID) 40MT Optional
7900000230 REMOTE CONTROL (RD/ID) 30MT Optional
7900000220 REMOTE CONTROL (RD/ID) 20MT Optional
7900000210 REMOTE CONTROL (RD/ID) 10MT Optional
7111020008 LAVA TIG 20V-8 VALVE 200A (%35 DC) Optional
7111020004 LAVA TIG 20V-4 VALVE 200A (%60 DC) Optional
Product Brochure
PDF
Operating Manual
PDF Search
Additional Documents
Quick Start

Approvals & Certificates

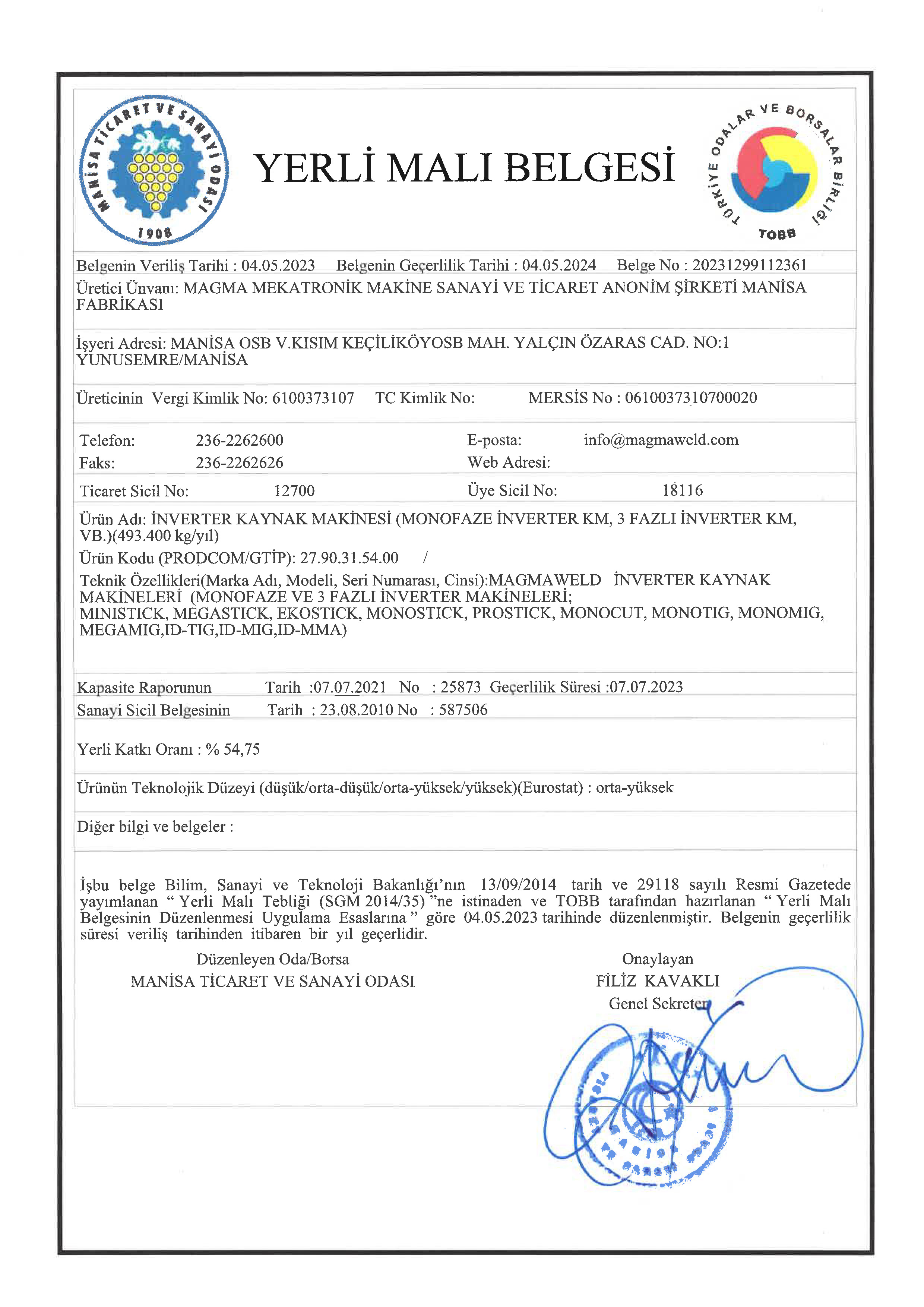

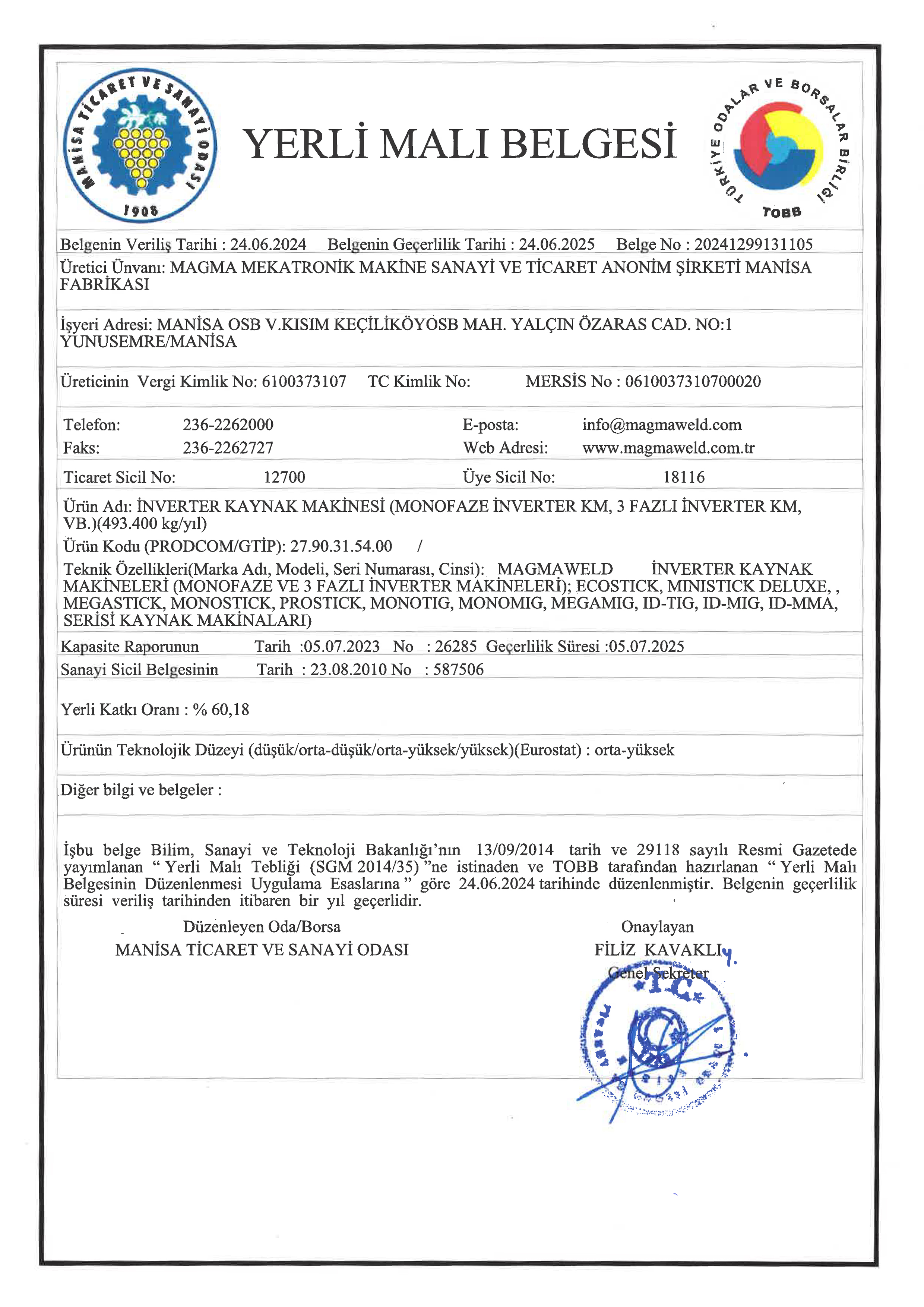

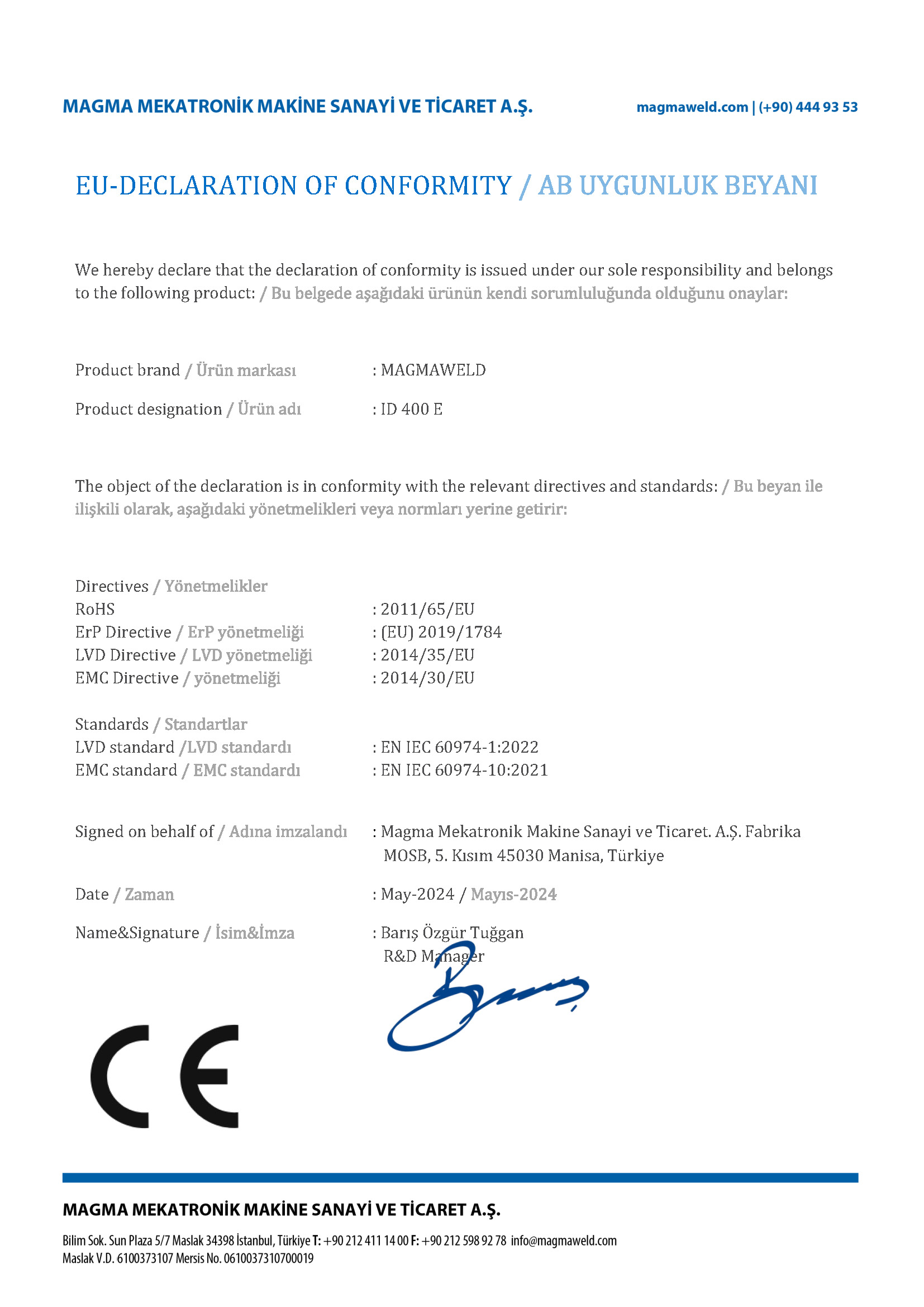

Turkish Product CE EAC
