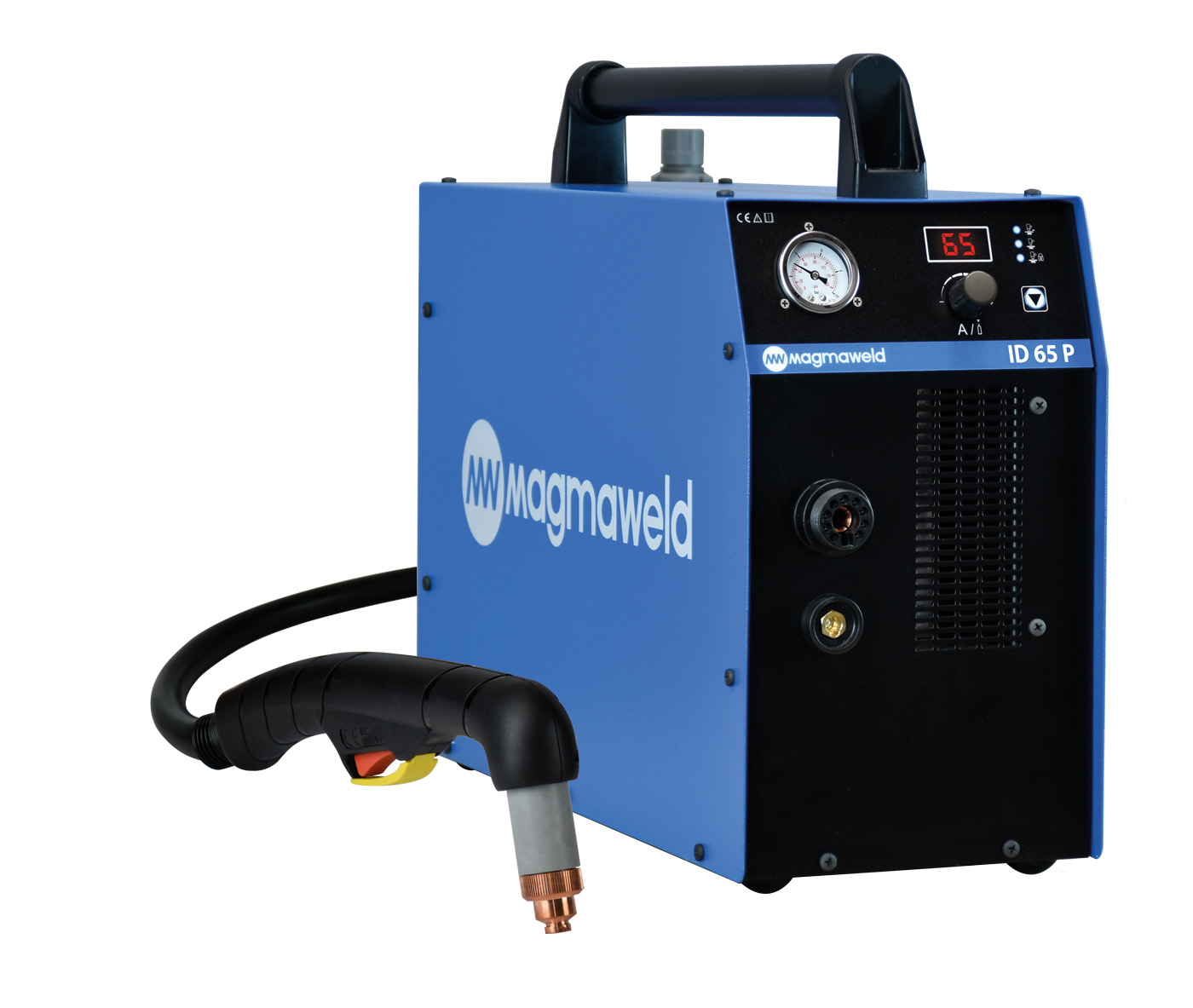

ID 65 P Plasma Cutting Handheld

Products :

GENERAL FEATURES

TECHNICAL SPECIFICATIONS

Accessories

DOCUMENTS

Plasma cutting machine with inverter technology.
Excellent cutting and gouging performance with all metal types with its advanced structure.
High quality 28 mm burr-free cutting, 18 mm pierce and 35 mm severance capacity without loss of performance in all metal types including aluminum and stainless .
Faster and cleaner cutting performance compared to oxyfuel (up to 20 mm),
Different torch and consumable options for special applications.
Easy setting and monitoring with user friendly interface
More uptime and maximum performance with strong torches and consumables
Save time with more precise and smoother cutting
Easy connection to the automation interface
Impact resistant, robust, reinforced steel body
Easy mobility with its ergonomic structure
No performance loss due to mains voltage fluctuations and ambient temperature changes

Technical Specifications	Data	Unit
Mains Voltage (3Ph)	400	V
Input Power	12,3	kVA
Power Source Efficiency	87,2
Output Voltage	106	V
IDLE State Power Consumption	14,43
Output Current	20 - 65	A
Open Circuit Voltage	270	V
Duty Cycle (@25°C)	65 (%50)
Recommended Cutting Thickness	22	mm
En Büyük Kesme Kalınlığı	28	mm
Koparma Kalınlığı	35	mm
Dimensions (l x w x h)	628,1 x 219,3 x 453,7	mm
Weight (Net)	26	kg
Plasma Gas	Temiz, kuru, yağsız hava veya N2
Protection Gas	Temiz, kuru, yağsız hava veya N2
Required Work Pressure	5.5 bar - 185 lt/dk
Protection Class	IP21

Code	Name	Standard/Optional
7142H10506	LAVA CUT HANDHELD	Standard
7905102502	EARTH CLAMP and CABLE	Standard
7942BC0001	BEVEL CUTTING ACCESSORIES	Optional
7942CC0001	CIRCULE CUTTING ACCESSORIES	Optional
