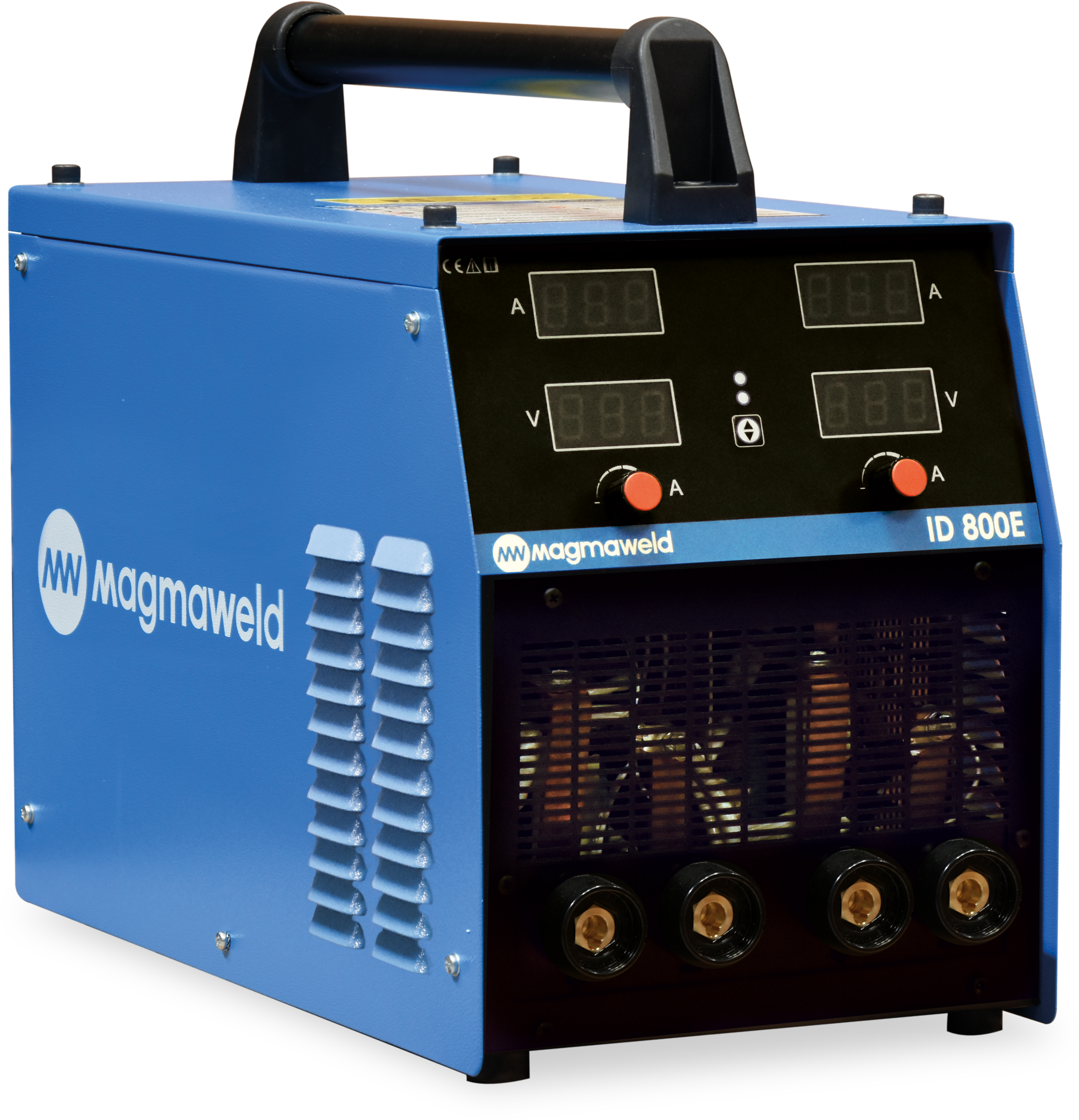

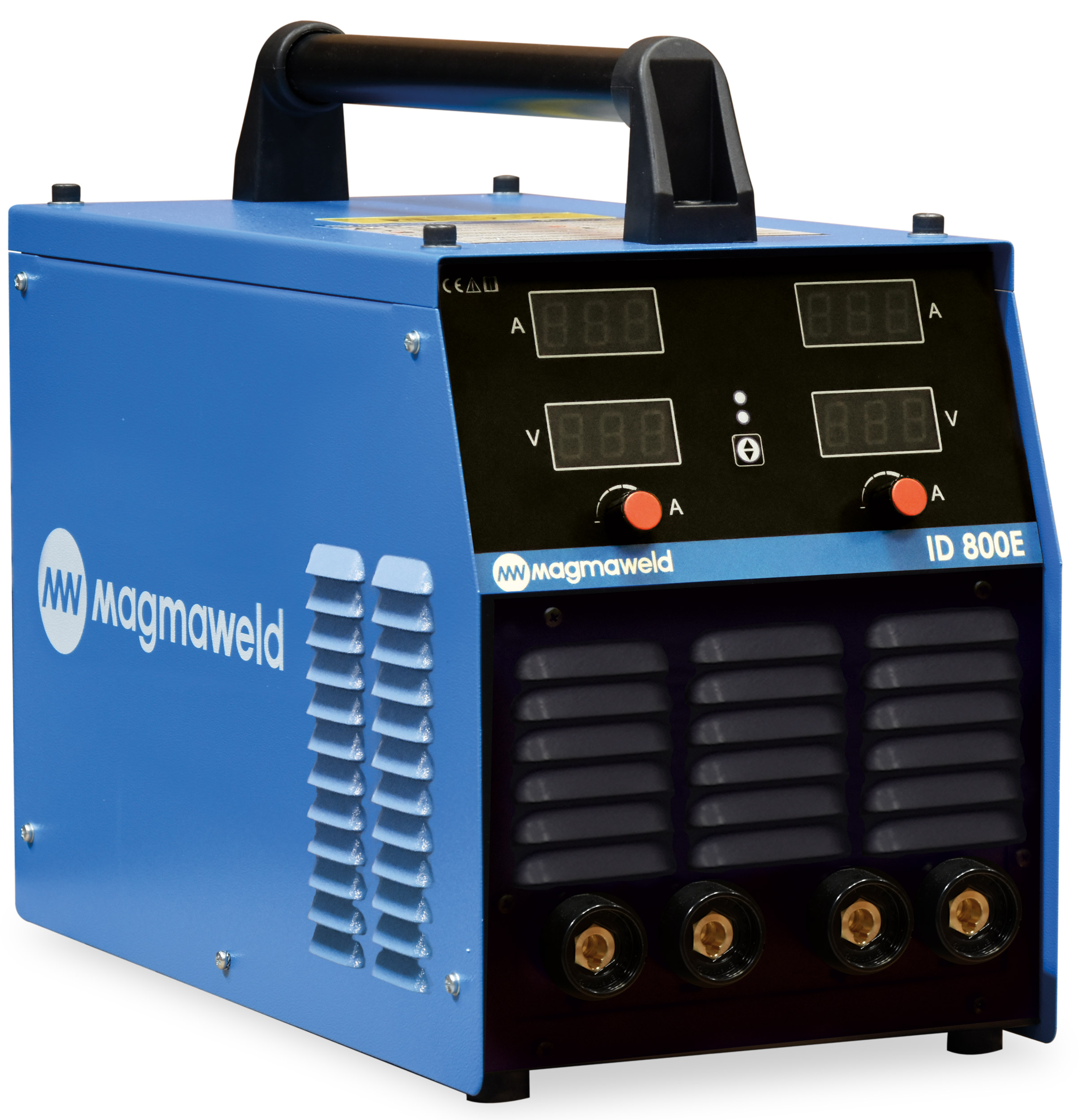

ID 800 E

ID 800 E - 2 x 400A İçin, Çift Şase ve E.Pensesi

Operates with 3 Phase 400V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
Due to inverter technology, energy efficiency is higher than the conventional machines.
Offers high carbon cutting performance
Excellent welding characteristics for Rutile/Basic electrodes.
Provides superior performance with power blocks consisting of 400 Amperes, delivering 800 Amperes of power.

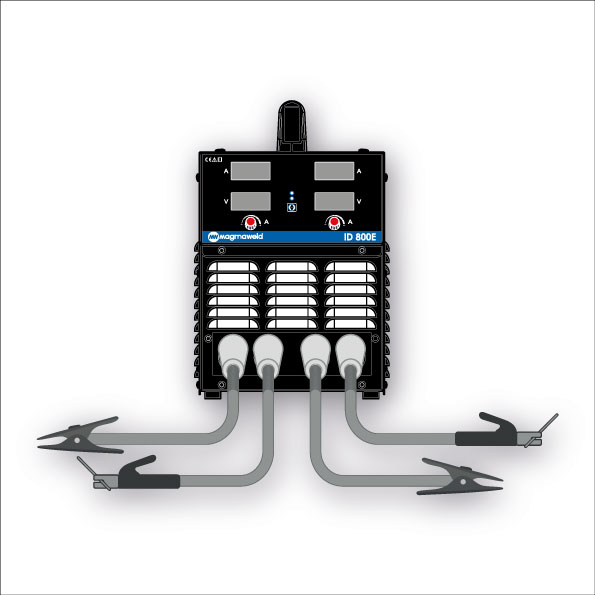

Opportunity to work with 2 users at the same time with separate parameters.

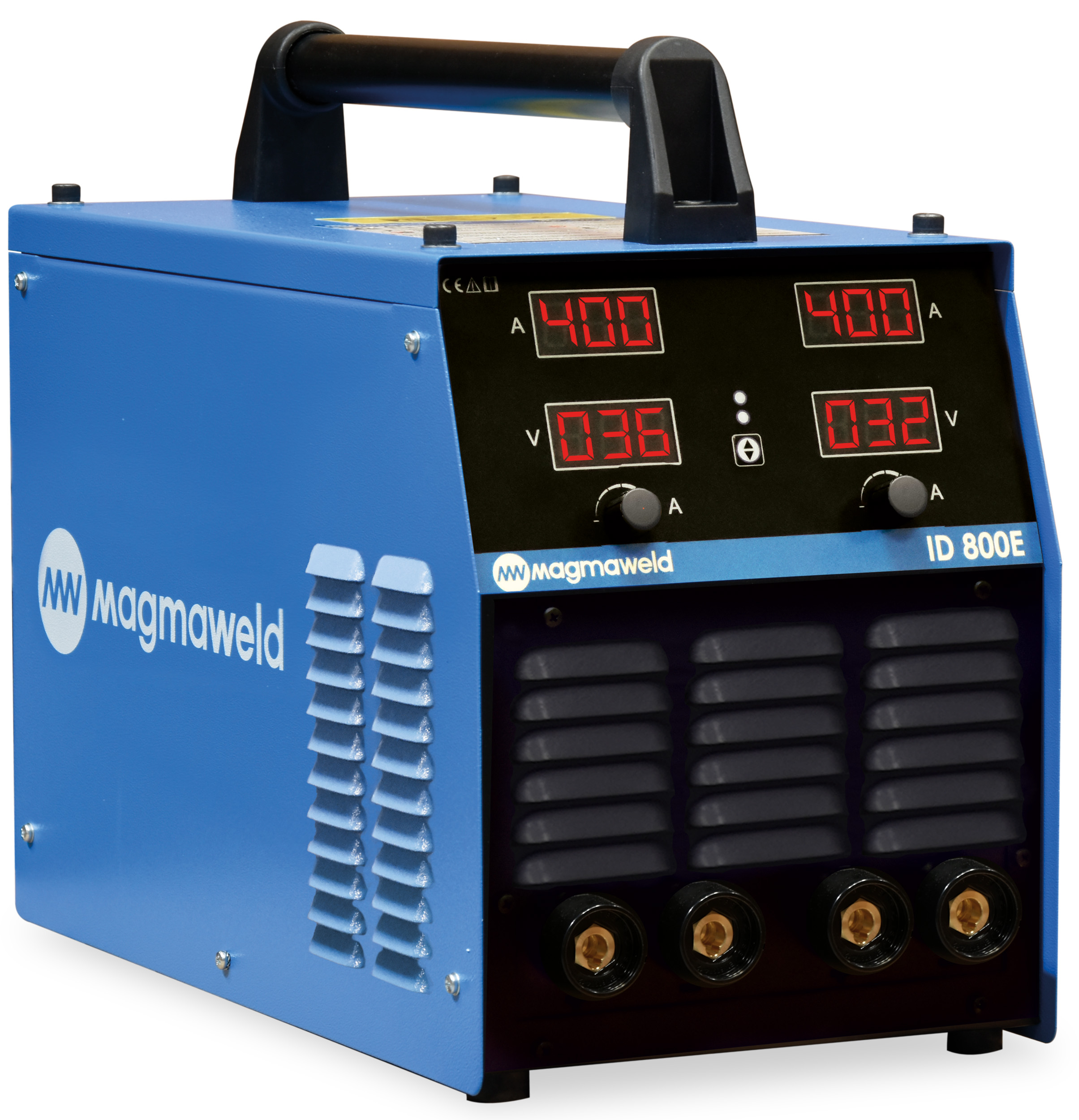

Welding current is adjusted precisely by the potentiometer knob on the front panel. Preset welding currents and voltages are digitally monitored from the front panel.
Stable welding current without loss of performance in case of electric line fluctuations or usage with long welding and electrical cables.
Intelligent control of temperature reduces energy consumption and extends the fan and machine life (SmartFan).
Suitable for mobile use with optional trolley.

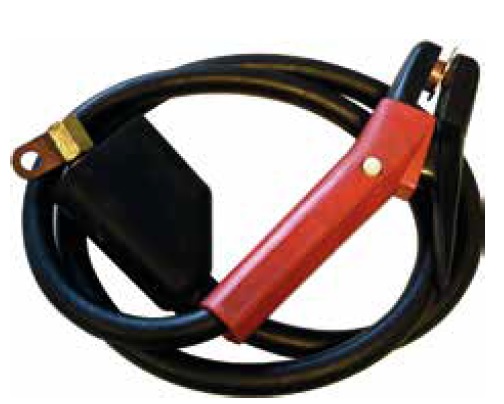

Standard accessories come with the machine.

Power Source
Mains Voltage (3Ph)	400	V
Input Power from Mains	52.58	kVA
Power Source Efficiency	MMA 87,41	%
IDLE State Power Consumption	47	W
Welding Current Range	60 - 800	A
Nominal Welding Current	800 (%30)	A
Open Circuit Voltage	90	V
Electrode Diameter	2.00 - 6.00	mm
Dimensions (l x w x h)	638 x 290 x 467	mm
Weight (Net)	40	kg
Protection Class	IP 23

Product Brochure

PDF

Operating Manual

PDF Search

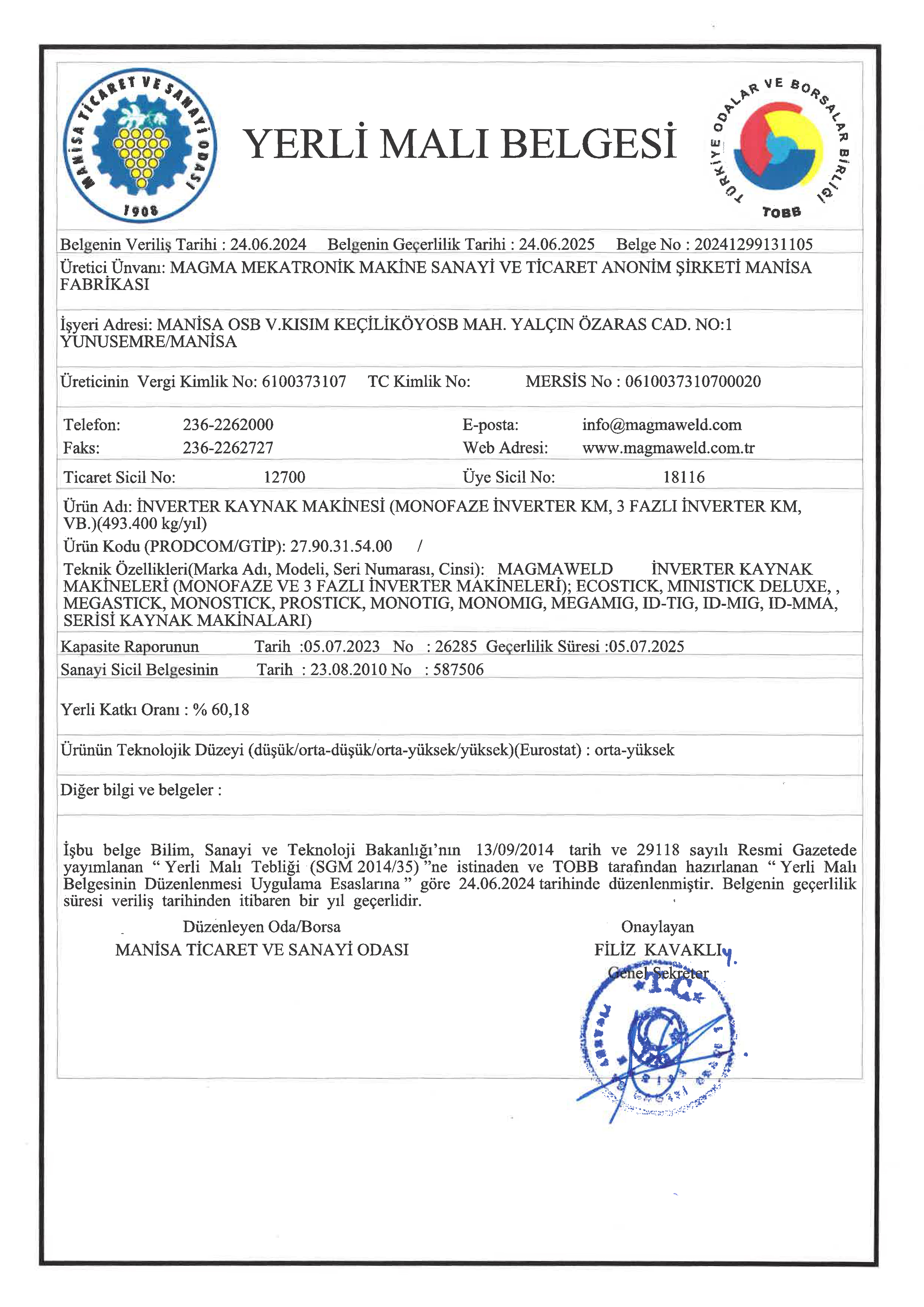

Additional Documents

Quick Start

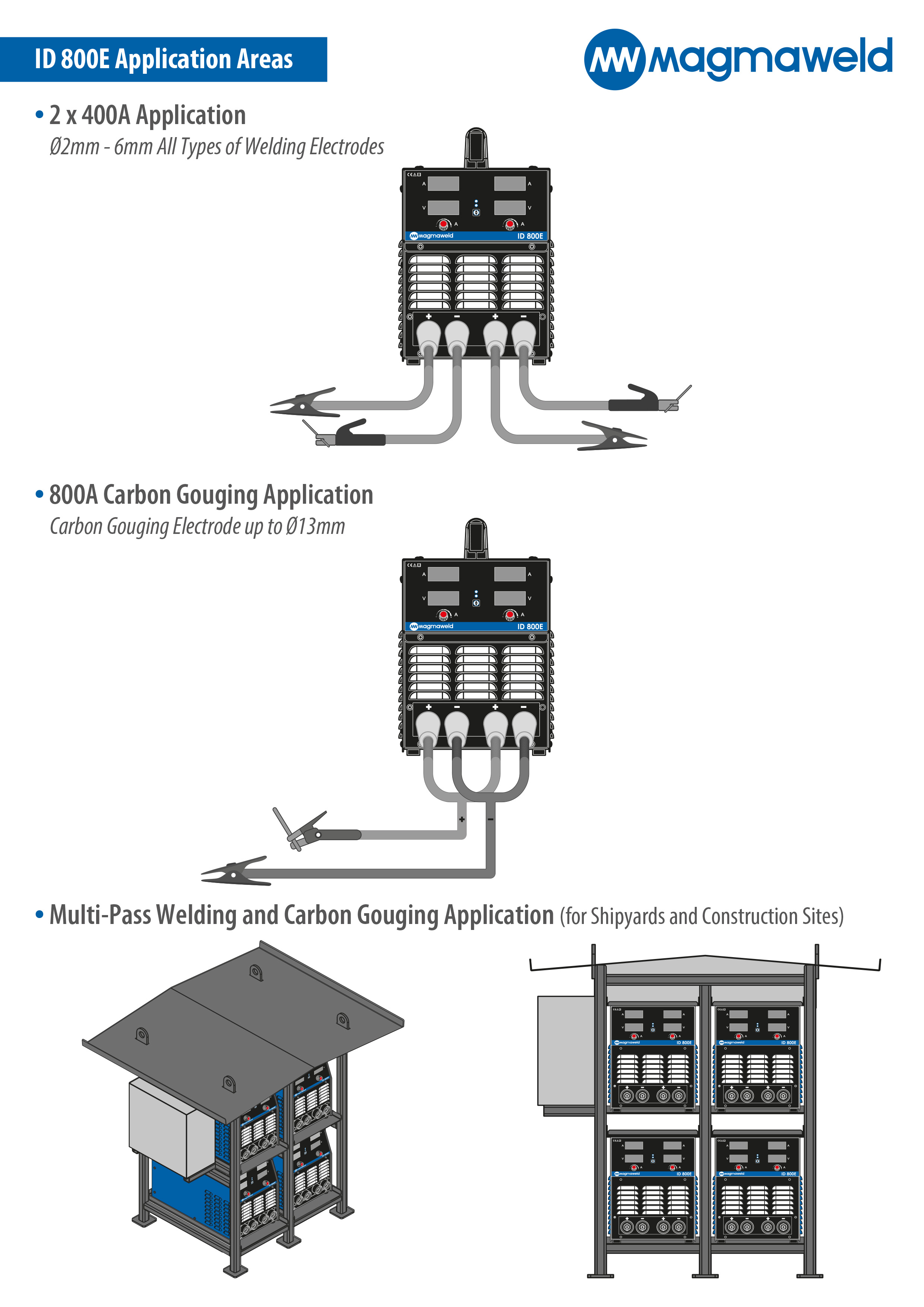

Application Areas

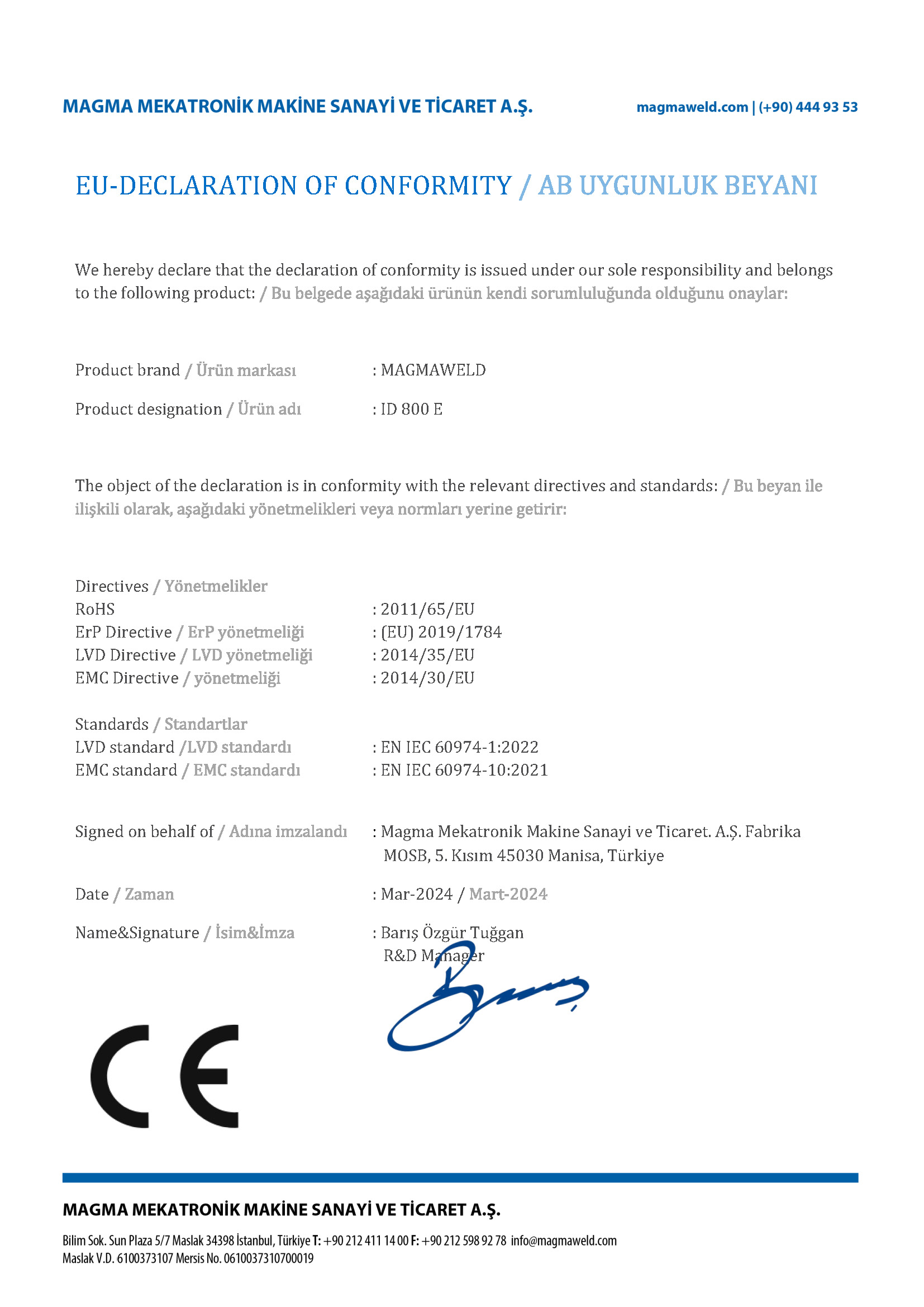

Approvals & Certificates

EAC Turkish Product CE

Code	Dimension	View
5030800DM0	ID 800E - 2 x 400A İçin, Çift Şase ve E.Pensesi	View
