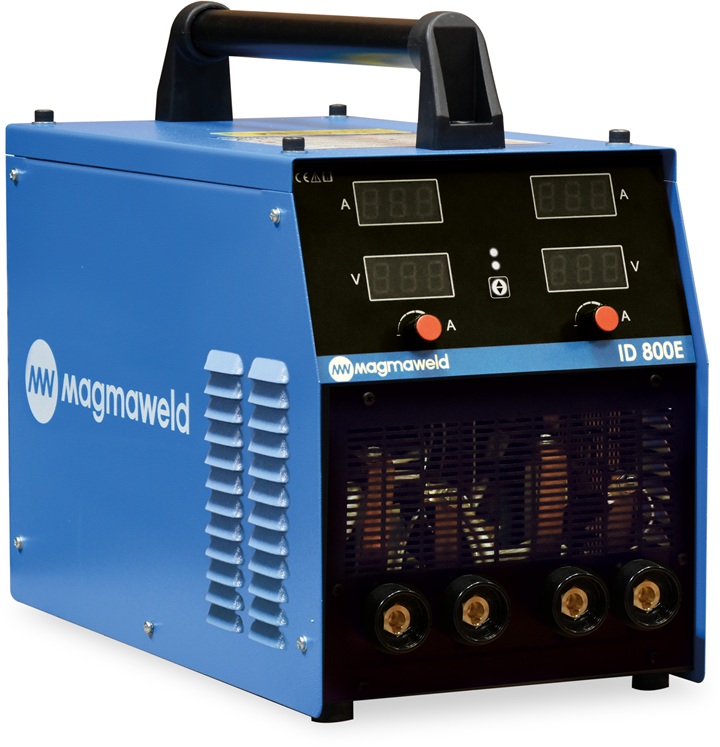

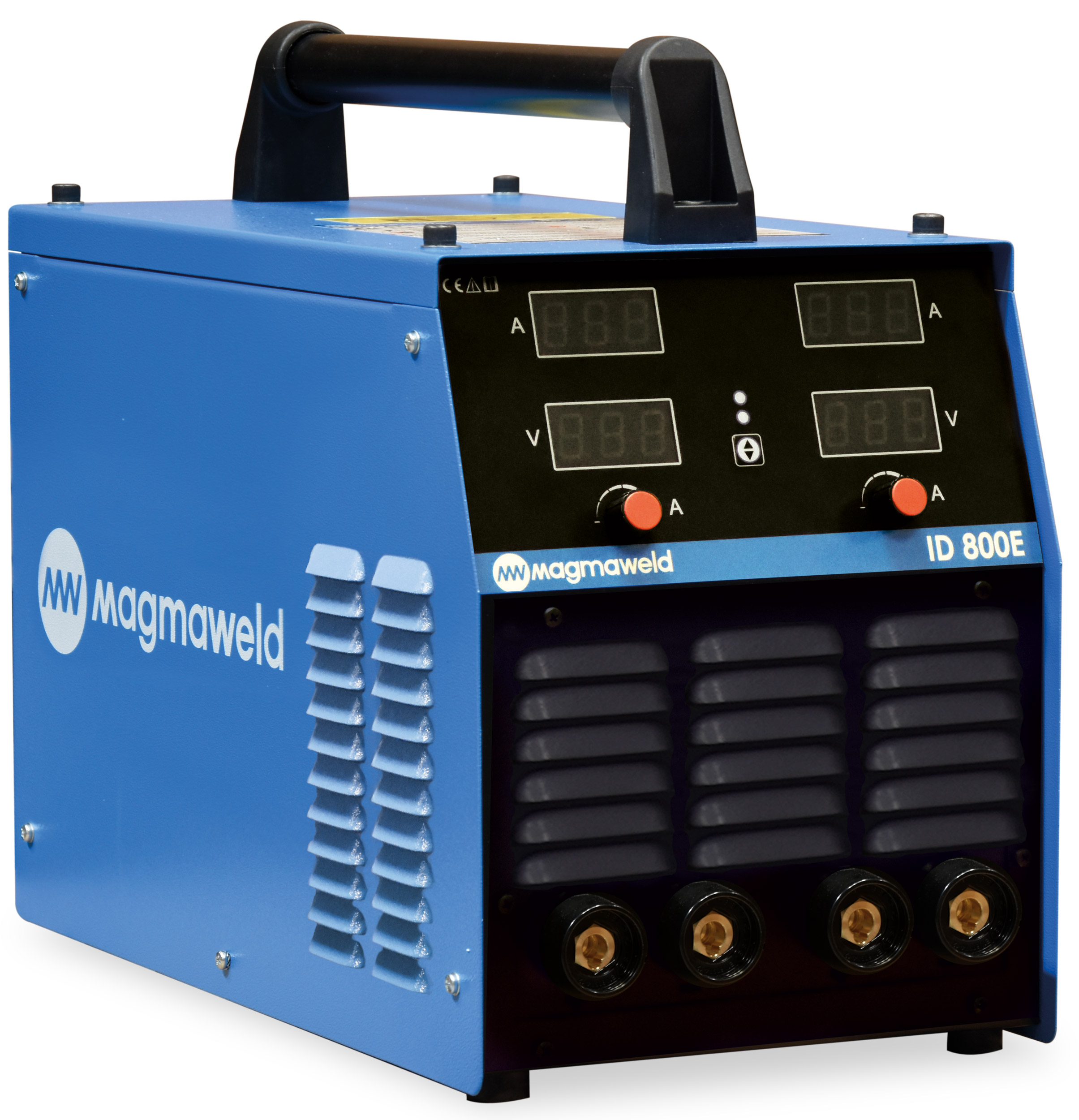

ID 800E

Products:

Package:
Adet sayısı Label
Paket Fiyatı:
ADD TO CART
GENERAL
TECHNICAL SPECIFICATIONS
Accessories
DOCUMENTS
  • Operates with 3 Phase 400V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
  • Due to inverter technology, energy efficiency is higher than the conventional machines.
  • Offers high carbon cutting performance
  • Excellent welding characteristics for Rutile/Basic electrodes.
  • Provides superior performance with power blocks consisting of 400 Amperes, delivering 800 Amperes of power.
  • Opportunity to work with 2 users at the same time with separate parameters.
  • Welding current is adjusted precisely by the potentiometer knob on the front panel. Preset welding currents and voltages are digitally monitored from the front panel.
  • Stable welding current without loss of performance in case of electric line fluctuations or usage with long welding and electrical cables.
  • Intelligent control of temperature reduces energy consumption and extends the fan and machine life (SmartFan).
  • Suitable for mobile use with optional trolley.
  • Standard accessories come with the machine.


Power Source
Mains Voltage (3Ph) 400 V
Input Power 52.58 kVA
Power Source Efficiency MMA 87,41 %
IDLE State Power Consumption 47 W
Welding Current Range 60 - 800 A
Nominal Welding Current 800 (%30) A
Open Circuit Voltage 90 V
Electrode Diameter 2.00 - 6.00 mm
Dimensions (l x w x h) 638 x 290 x 467 mm
Weight (Net) 40 kg
Protection Class IP23
Code Name Dimension Standard/Optional
7906203503 ELECTRODE CLAMP AND CABLE 35mm2/3mt (35 socket) Standard
7905203503 EARTH CLAMP and CABLE 35mm2/3mt (35 socket) Standard
7904359002 ID800E PARALLEL CABLE Standard
7908201000 GOUGING TORCH 1000 A Optional
7111020008 LAVA TIG 20V-8 VALVE 200A (%35 DC) Optional
7111020004 LAVA TIG 20V-4 VALVE 200A (%60 DC) Optional
Product Brochure
PDF
Operating Manual
PDF Search
Additional Documents
Application Areas

Quick Start

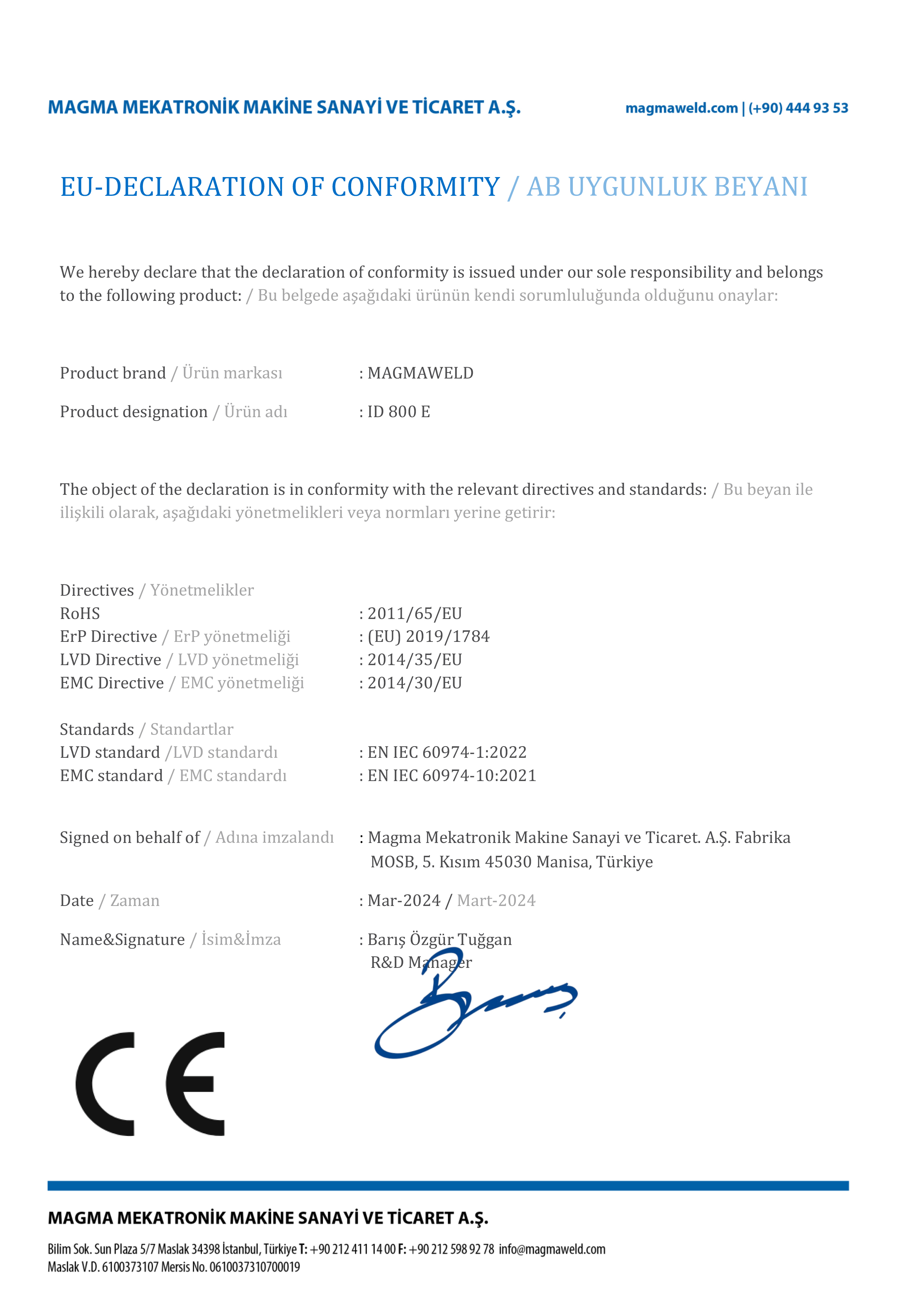

Approvals & Certificates
Turkish Product CE EAC
