MAL 4043

Standards

AWS/ASME SFA - 5.10 ER4043
EN ISO 18273 S Al 4043 (AlSi5)
TS 6204 EN ISO 18273 S Al 4043 (AlSi5)
DIN M. No. 3.2245

Materials

DIN Material
G-AlSi 5 Mg 3.2341
AlMgSi 0,5 3.3206
AlMgSi 0,7 3.3210
AlMgSi 0,8 3.2316
AlMgSi 1 3.2315
AlMg 1 Si Cu 3.3211
AlMn 1 3.0515
Al 99.0 3.0205
Al 99.5 3.0255
Al Zn 4.5 Mg 1 3.4335
G - Al Si 6 Cu 4 3.2151
G - Al Si 5 Mg 3.2341

Properties and Applications

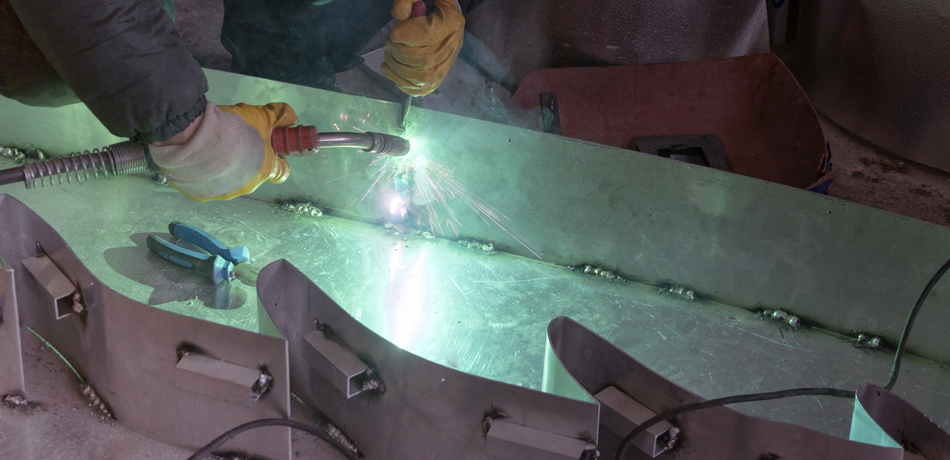

5% Silicon containing aluminium wire electrode for GMA (MIG) welding of aluminium and aluminium alloys. Suitable fore welding aluminium casting, containing up 7% silicon and Al-Mg-Si alloys which are containing up to 2% Magnesium alloying element.
Mal 4043 Sert Dolgu

Typical Chemical Features of the Welding Wire

Type of AnalysisSiMnAl
Welding Wire5.000.0594.95

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasTensile Strength (N/mm²)% 0,2 Yield Strength (N/mm²)Elongation A5 (%)
As weldedI1160809

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - I1 (%100 Ar) .

Application Information

Welding Positions :
Mal 4043 Kaynak Pozisyonu Mal 4043 Kaynak Pozisyonu Mal 4043 Kaynak Pozisyonu Mal 4043 Kaynak Pozisyonu Mal 4043 Kaynak Pozisyonu Mal 4043 Kaynak Pozisyonu Mal 4043 Kaynak Pozisyonu

Polarity:

Mal 4043 Kutuplama

Protection Gas:

I3 I1 I2

Welding Parameters & Efficiency :

Diameter (mm)
0.80
1.00
1.20
1.60
2.00

Packaging Information

Product CodeDiameter (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
24001BJAM20.807 kg7.1017.10Wire Basket Spool (K300MS)
24001BJAM50.807 kg7.6017.60Wire Basket Spool (K300MS)
24001DJAM51.007 kg7.6017.60Wire Basket Spool (K300MS)
24001EJAM21.207 kg7.1017.10Wire Basket Spool (K300MS)
24001EJAM51.207 kg7.6017.60Wire Basket Spool (K300MS)
24001GJAM51.607 kg7.6017.60Wire Basket Spool (K300MS)
24001HJAM22.007 kg7.1017.10Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
