MAL 4047

Datasheet

Standards

AWS/ASME SFA - 5.10	ER4047
EN ISO 18273	S Al 4047A (AlSi12(A))
TS 6204 EN ISO 18273	S Al 4047A (AlSi12(A))
DIN M. No.	3.2585

Materials

DIN	Material
G-AlSi 12	3.2581
G-AlSi 12 (Cu)	3.2583
G-AlSi 10 Mg	3.2381
G-AlSi 11	3.2211

Properties and Applications

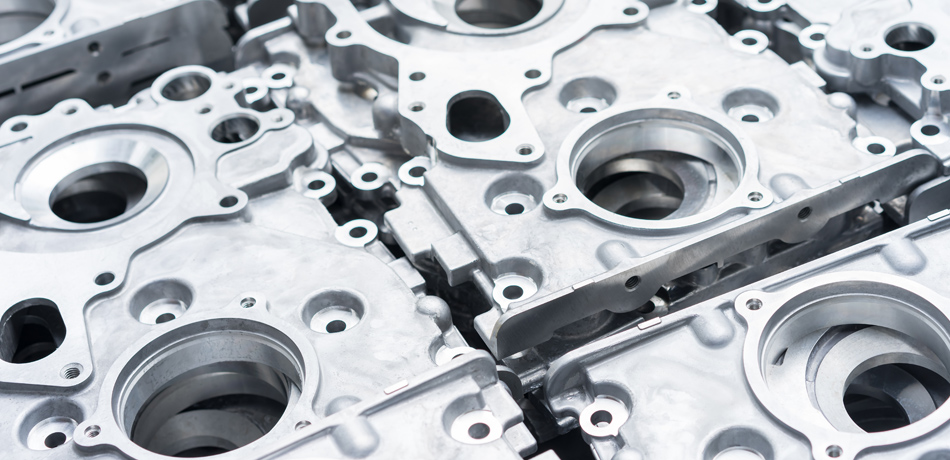

12% Silicon containing aluminium alloy welding wire, for GMA (MIG) welding of aluminium-silicon (Al-Si) and aluminium-silicon-magnesium (Al-Si-Mg) alloy castings, having a Si content of up to 7% alloying elements.

Typical Applications

Typical Chemical Features of the Welding Wire

Type of Analysis	Si	Al
Welding Wire	12.00	88.00

Type of Analysis

Welding Wire

12.00

88.00

Typical Mechanical Values of Weld Metal(%)

Test Condition	Protection Gas	Tensile Strength (N/mm²)	% 0,2 Yield Strength (N/mm²)	Elongation A5 (%)
As welded	I1	190	90	6

Test Condition

Protection Gas

Tensile Strength (N/mm²)

% 0,2 Yield Strength (N/mm²)

Elongation A5 (%)

As welded

190

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - I1 (%100 Ar) .

Application Information

Welding Positions :

Polarity:

Protection Gas:

I3 I1 I2

Welding Parameters & Efficiency :

Diameter (mm)
1.20
1.60

Diameter (mm)

1.20

1.60

Packaging Information

Product Code	Diameter (mm)	Quantity per Box	Box Gross Weight (kg)	Boxes per Outer Box	Outer Box Gross Weight (kg)	Packaging Type
24002EHAM2	1.20	6 kg	6.80	1	6.80	Plastic Spool (D300)
24002EJAM5	1.20	7 kg	7.60	1	7.60	Wire Basket Spool (K300MS)
24002GHAM2	1.60	6 kg	6.80	1	6.80	Plastic Spool (D300)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
