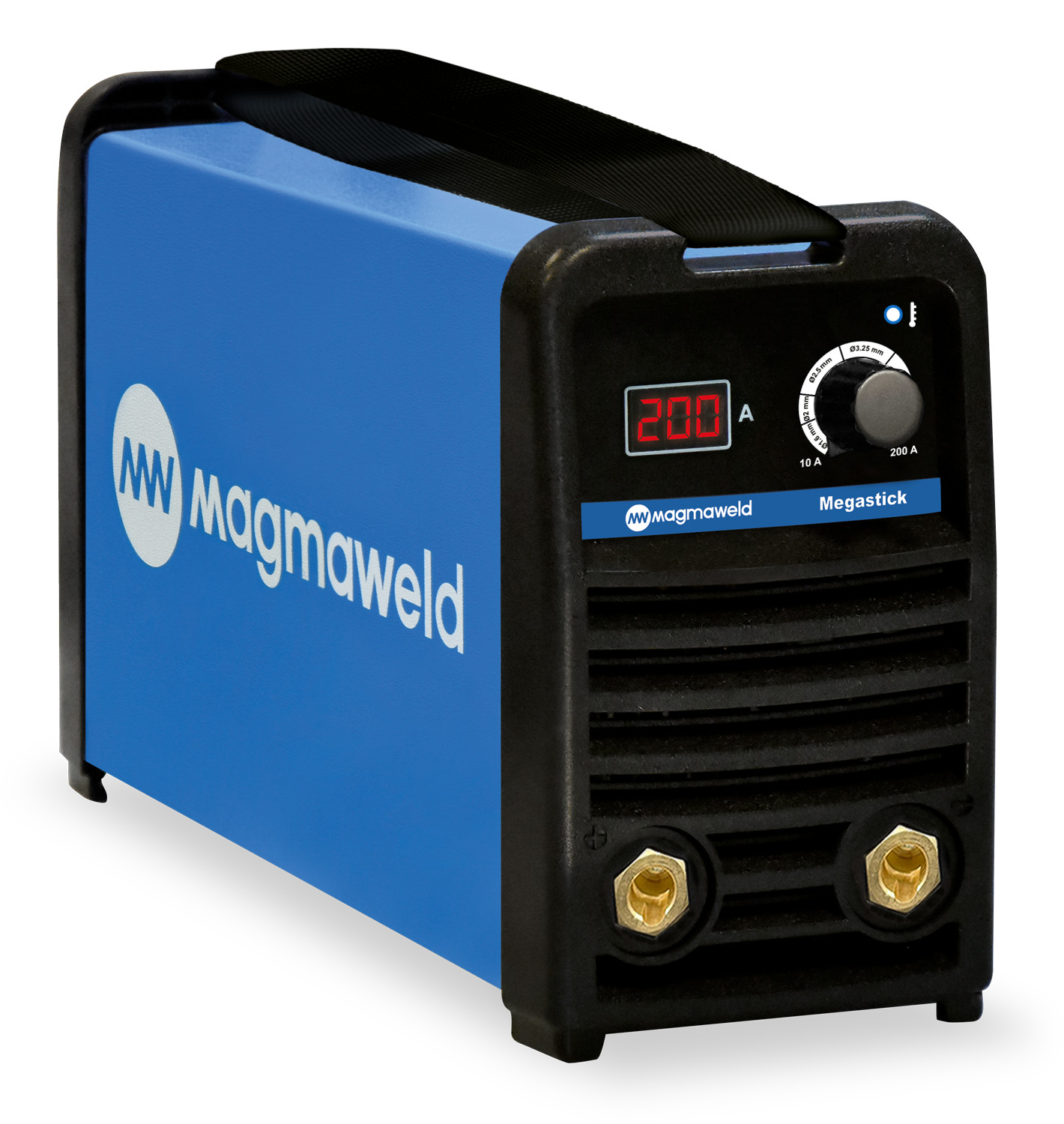

MEGASTICK

Products :

GENERAL FEATURES

TECHNICAL SPECIFICATIONS

Accessories

DOCUMENTS

Operates with 1 Phase 230V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
Due to inverter technology, energy efficiency is higher than the conventional machines.
Excellent welding characteristics for rutile and basic electrodes up to 3.25 mm in diameter.
Current adjustment scale by electrode diameters for easy parameter selection.
Scratch TIG welding on even thin metals due to its stable low currents.
The smallest model of the family with a weight of 5 kg and the compact design, it can easily be carried or hanged by the shoulder strap.
Stable welding current without loss of performance due to electric line fluctuations or with longer welding and electrical cables.
Designed also for outdoor use, protection class is IP 23.
Fan cooling and thermal protection against overheating.
Standard accessories come with the machine.

Technical Specifications	Data	Unit
Mains Voltage (1Ph)	230	V
Power Source Efficiency	85,56
Input Power	9,68	kVA
IDLE State Power Consumption	N/A (EN IEC 60974-1,Annex M)
Welding Current Range	10 - 200	A
Duty Cycle (@25°C)	130
Duty Cycle (@25°C)	200
EN 60974 -1 (I/X%)	200/14
Open Circuit Voltage	75 VDC	V
Electrode Diameter	1.60 - 4.00	mm
Dimensions (l x w x h)	360 x 120 x 200	mm
Weight (Net)	4,9	kg
Protection Class	IP23
