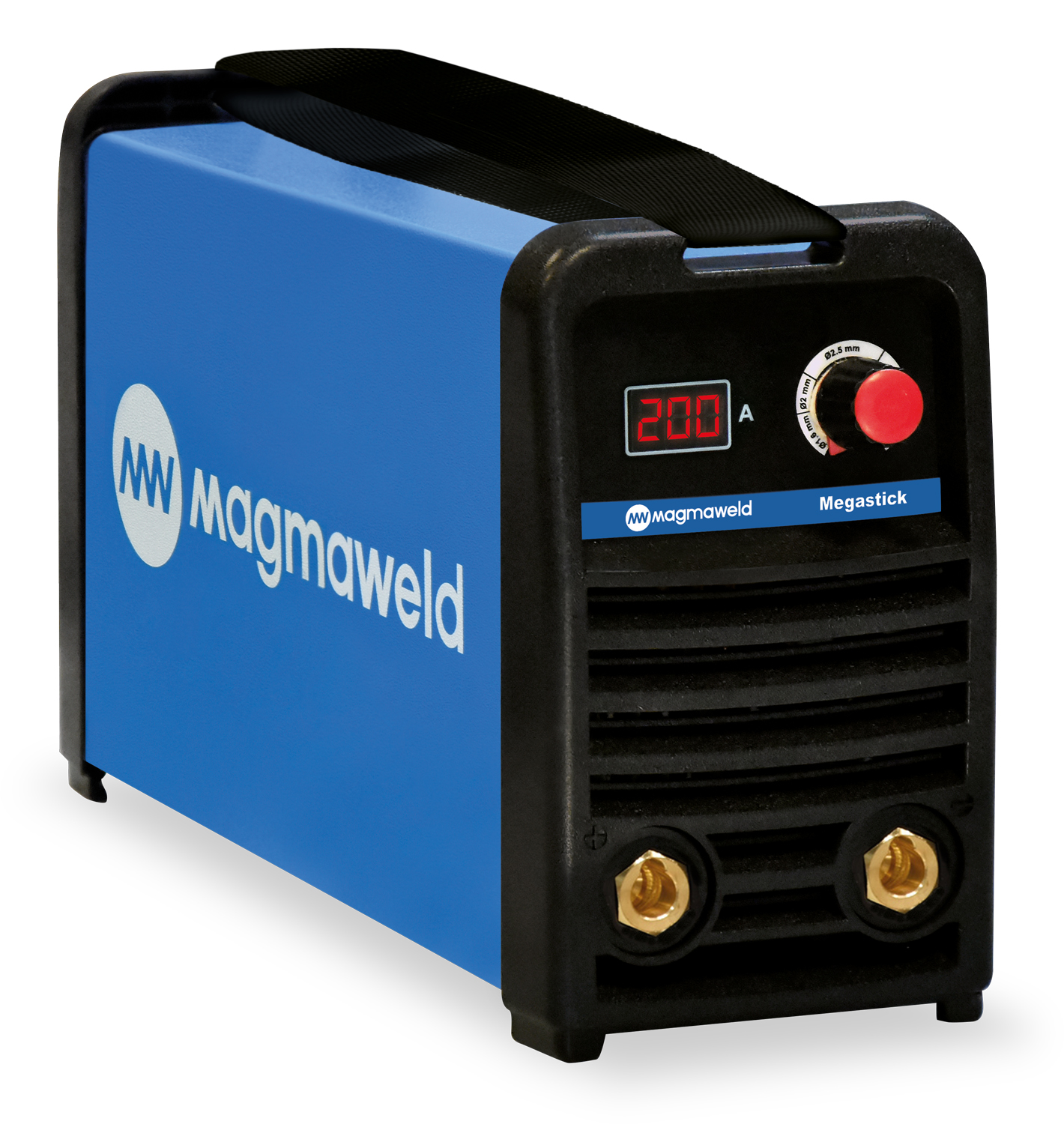

MEGASTICK

GENERAL
TECHNICAL SPECIFICATIONS
Accessories
DOCUMENTS
  • Operates with 1 Phase 230V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
  • Due to inverter technology, energy efficiency is higher than the conventional machines.
  • Excellent welding characteristics for rutile and basic electrodes up to 3.25 mm in diameter.
  • Current adjustment scale by electrode diameters for easy parameter selection.
  • Scratch TIG welding on even thin metals due to its stable low currents.
  • The smallest model of the family with a weight of 5 kg and the compact design, it can easily be carried or hanged by the shoulder strap.
  • Stable welding current without loss of performance due to electric line fluctuations or with longer welding and electrical cables.
  • Designed also for outdoor use, protection class is IP 23.
  • Fan cooling and thermal protection against overheating.
  • Standard accessories come with the machine.
Power Source
Mains Voltage (1Ph) 230 V
Input Power 9,68 kVa
Power Source Efficiency 85,56 %
IDLE State Power Consumption N/A (EN IEC 60974-1,Annex M) W
Welding Current Range 10 - 200 A
Duty Cycle (@25°C) 130 A (%100)
Duty Cycle (@25°C) 200 A (%30)
EN 60974 -1 (I/X%) 200/14
Open Circuit Voltage 75 VDC V
Electrode Diameter 1.60 - 4.00 mm
Dimensions (l x w x h) 360 x 120 x 200 mm
Weight (Net) 4,9 kg
Protection Class IP23
Code Name Dimension Standard/Optional
7906202502 ELECTRODE CLAMP AND CABLE 25mm2/2mt (35 soket) Standard
7905202502 EARTH CLAMP and CABLE 25mm2/2mt (35 soket) Standard
7111014104 LAVA TIG MINI 17V-4 MUSLUKLU 140A (%35 DC) 25 Soket Optional
Product Brochure
PDF
Operating Manual
PDF Search
Additional Documents
Quick Start

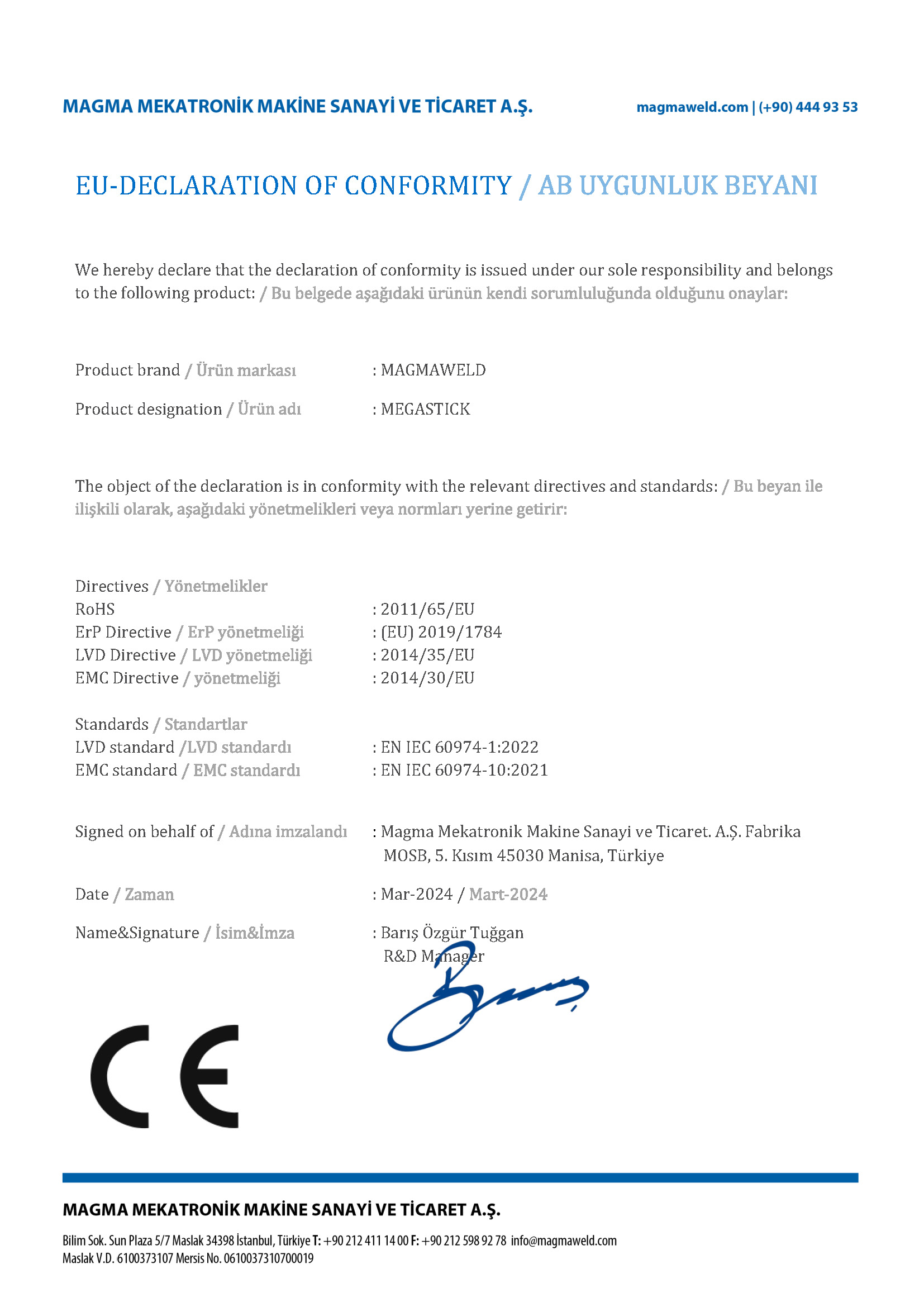

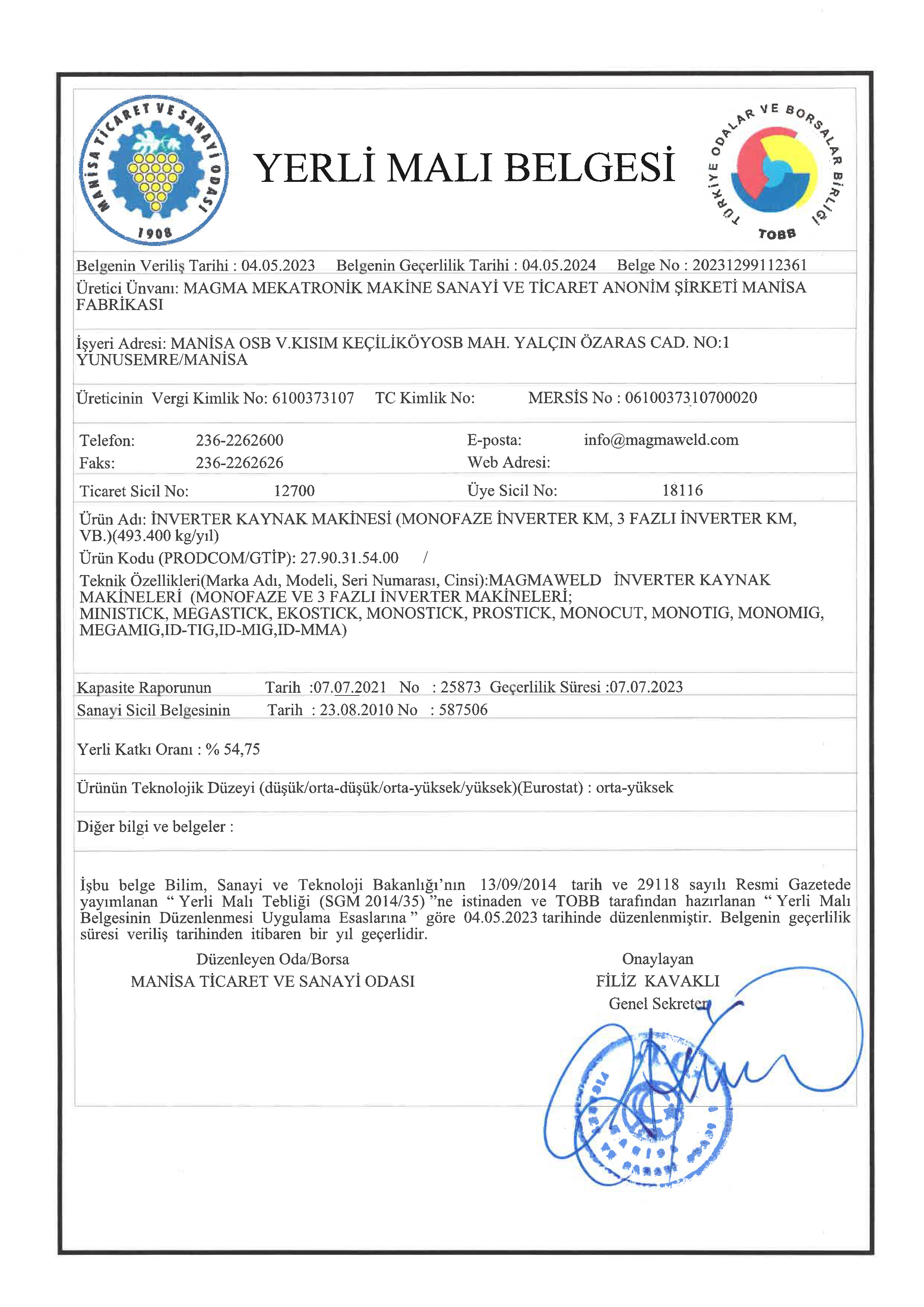

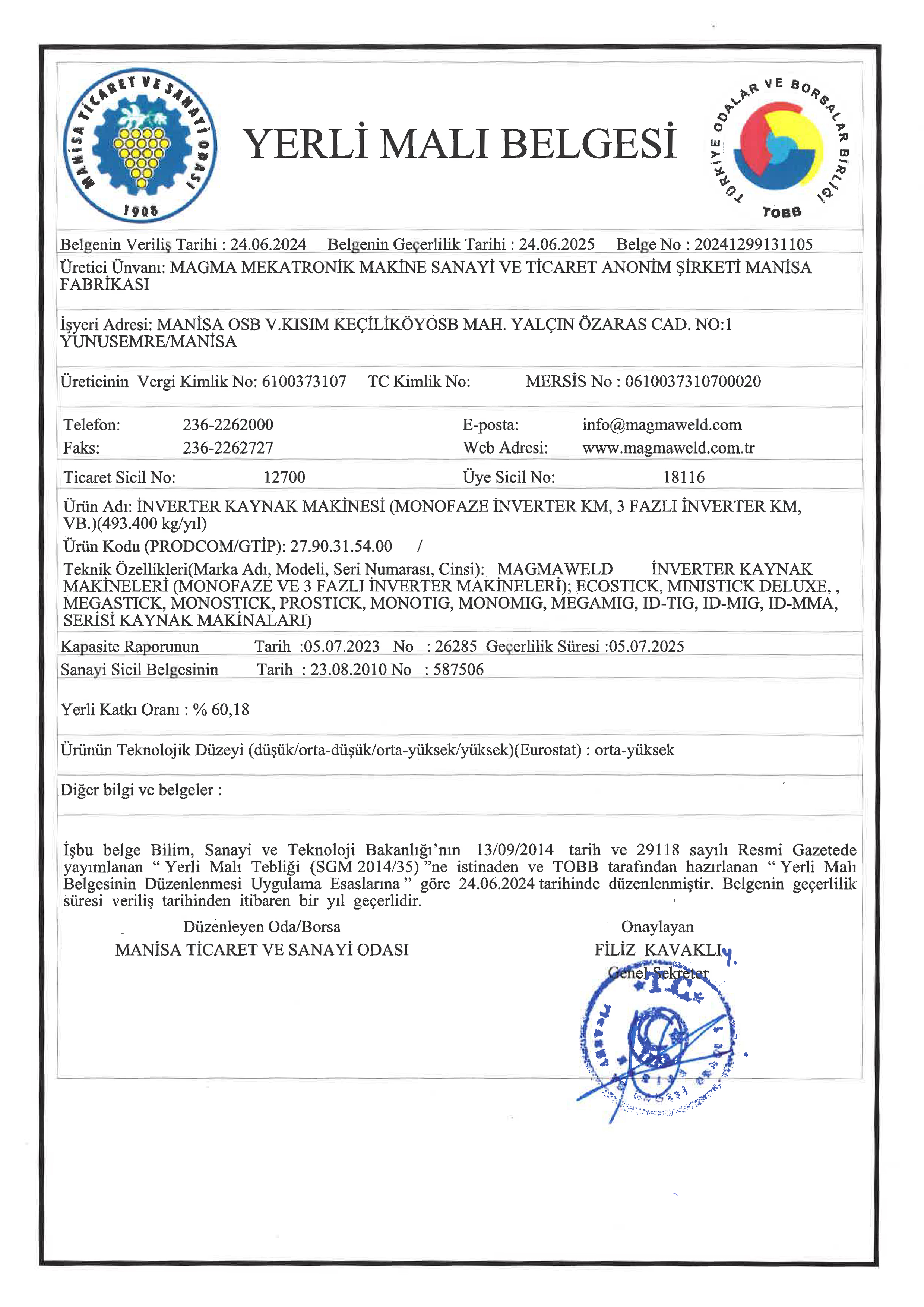

Approvals & Certificates
CE EAC Turkish Product
