MG 20

Standards

AWS/ASME SFA - 5.18 ER70S-6
EN ISO 14341 - A G 42 4 C1 3Si1
EN ISO 14341 - A G 42 4 M21 3Si1
TS EN ISO 14341 - A G 42 4 M21 3Si1
TS EN ISO 14341 - A G 42 4 C1 3Si1
DIN M. No. 1.5125

Properties And Applications

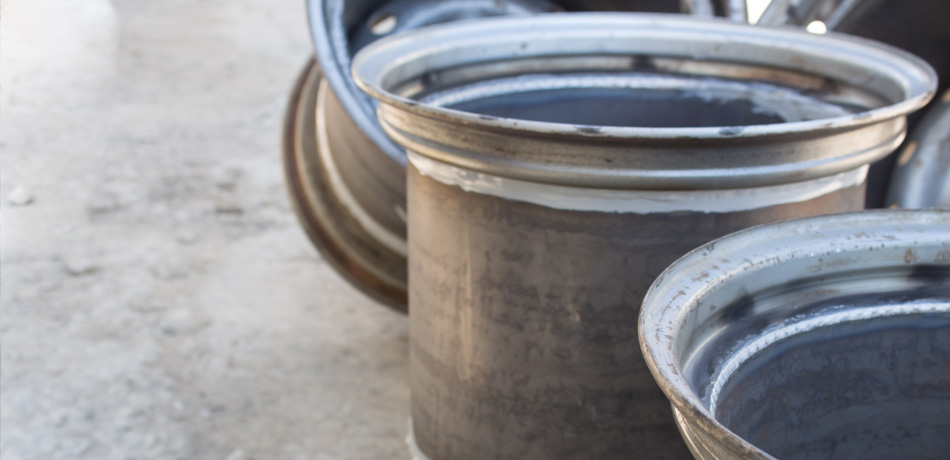

Non-copper coated and unalloyed GMA (MIG/MAG) wire electrode, especially produced for welding without spatter or very low level of spatter. Suitable for welding of general structural steels, boiler steels, pipe steels and cast steels. Due to it's special coating provides stable arc and no spatter especially with mixed shielding gases which can be used depending on the thickness. Generally preferred in robotic applications, due to it's high welding performance without spatter and cleaning needs. Also provides cost advantages in cleaning after welding, torch spare part consumptions like, contact tip, spiral, driving wheel, anti-spatter sprey. Due to these advantages preferably used in automotive, machine and steel furniture production.

Approvals & Certificates

Materials

Width DIN
S185 - P355T1 St 33 -St 52.0
S235JR - S355J0 St 37.2 - St 52.3
P235TR2 - P355T2 St 37.4 - St 52.4
P235G1TH - P265G1TH St 35.8 - St 45.8
P235GH, P265GH H I, H II
P295GH, P355GH 17Mn4, 19Mn5
E295 St 50.2
L210 - L360NB StE 210.7 - StE 360.7
S255N -S380N StE 255 - StE 380
GE 200 - GE 240 GS-38, GS-45
- A, B, D, E

Typical Chemical Features of the Welding Wire

Type of AnalysisCSiMn
Welding Wire0.070.901.45

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As weldedC143054029-20°C → 90-30°C → 70
As weldedM2146056027-30°C → 95-40°C → 75-50°C → 60

* Chemical compositon and mechanical properties are valid when using shielding gas .

Application Information

Welding Positions :
Mg 20 Kaynak Pozisyonu Mg 20 Kaynak Pozisyonu Mg 20 Kaynak Pozisyonu Mg 20 Kaynak Pozisyonu Mg 20 Kaynak Pozisyonu Mg 20 Kaynak Pozisyonu Mg 20 Kaynak Pozisyonu

Polarity:

Mg 20 Kutuplama

Protection Gas:

M20 M24 M26 M21 C1

Welding Parameters & Efficiency :

Diameter (mm)Current (A)
0.8050-180
1.00
1.20
1.40
1.60200-400

Packaging Information

Product CodeDiameter (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
21020B1GM20.80250 kg257.501257.50Fiber Drum
21020BBAM20.805 kg5.3015.30Plastic Spool (D200)
21020BJAM20.8015 kg15.70115.70Wire Basket Spool (K300MS)
21020D0GM21.0060 kg64.00164.00Fiber Drum
21020D1GM21.00250 kg257.501257.50Fiber Drum
21020DJAM21.0015 kg15.70115.70Wire Basket Spool (K300MS)
21020E0GM21.2060 kg64.00164.00Fiber Drum
21020E1GM21.20250 kg257.501257.50Fiber Drum
21020EBAM21.205 kg5.3015.30Plastic Spool (D200)
21020EHAM21.2015 kg15.80115.80Plastic Spool (D300)
21020EJAM21.2015 kg15.70115.70Wire Basket Spool (K300MS)
21020F1GM21.40250 kg257.501257.50Fiber Drum
21020G1GM21.60250 kg257.501257.50Fiber Drum
21020GJAM21.6015 kg15.70115.70Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
