MG 201A

Standards

AWS/ASME SFA - 5.28 ER80S-D2
EN ISO 21952 - A G Z MnMo
TS EN ISO 21952 - A G Z MnMo

Properties And Applications

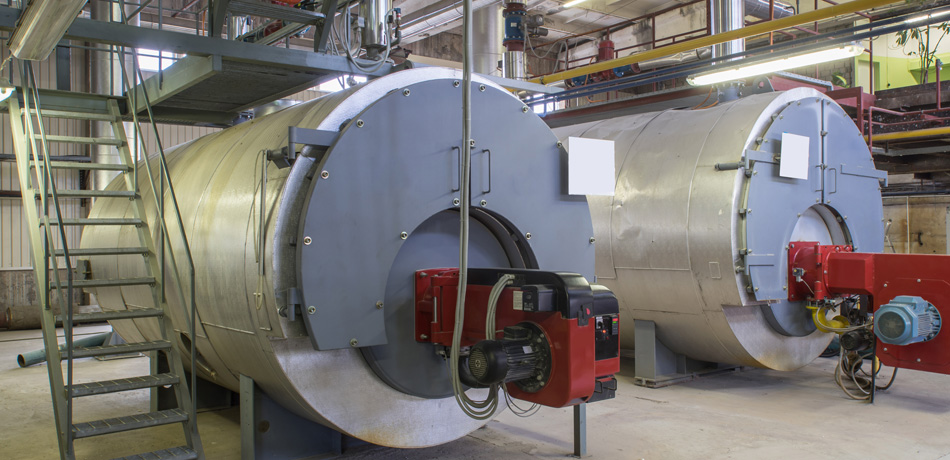

Low alloyed wire electrode for GMA (MIG/MAG) welding of creep resistant boiler and pipe steels subjected to operating temperatures up to 530°C. Contains high level of deoxidizing (Mn and Si) elements to control porosity during welding. Welds are of X-ray quality. Also suitable for joining C-Mn steels to be postweld heat treated. Observe directions as to pre and post weld heat treatment of base material. CO2 or mixed shielding gases can be used depending on the thickness of the base metal. A thin and homogeneous copper coating increases electrical conductivity and protects the wire from rusting.

Materials

Width DIN
S255N - S460N StE 255 - StE 460
P235G1TH - P255G1TH St 35.8 - St 45.8
P235GH, P265GH H I, H II
P295GH , P355GH 17Mn4, 19Mn5
16Mo3 15Mo3
L360NB - L415NB StE 360.7 - StE 415.7
L450MB, L485MB StE 445.7 TM, StE 480.7 TM
X52 - X70

Typical Chemical Features of the Welding Wire

Type of AnalysisCSiMnMo
Welding Wire0.090.751.900.45

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As weldedM21520600220°C → 60-20°C → 50

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - M21 (%82 Ar + %18 CO2) .

Application Information

Welding Positions :
Mg 201A Kaynak Pozisyonu Mg 201A Kaynak Pozisyonu Mg 201A Kaynak Pozisyonu Mg 201A Kaynak Pozisyonu Mg 201A Kaynak Pozisyonu Mg 201A Kaynak Pozisyonu Mg 201A Kaynak Pozisyonu

Polarity:

Mg 201A Kutuplama

Protection Gas:

M20 M21 C1

Welding Parameters & Efficiency :

Diameter (mm)
0.80
1.00
1.20
1.60

Packaging Information

Product CodeDiameter (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
22001BJAM20.8015 kg15.70115.70Wire Basket Spool (K300MS)
22001D1GM21.00250 kg261.001261.00Fiber Drum
22001DJAM21.0015 kg15.70115.70Wire Basket Spool (K300MS)
22001E1GM21.20250 kg261.001261.00Fiber Drum
22001EJAM21.2015 kg15.70115.70Wire Basket Spool (K300MS)
22001GJAM21.6015 kg15.70115.70Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
