MG 211A

Standards

AWS/ASME SFA - 5.28 ER80S-B2
EN ISO 21952 - B G 55C 1CM
EN ISO 21952 - B G 55M 1CM
EN ISO 21952 - A G Z CrMo1Si
TS EN ISO 21952 - B G 55C 1CM
TS EN ISO 21952 - B G 55M 1CM
TS EN ISO 21952 - A G Z CrMo1Si

Properties And Applications

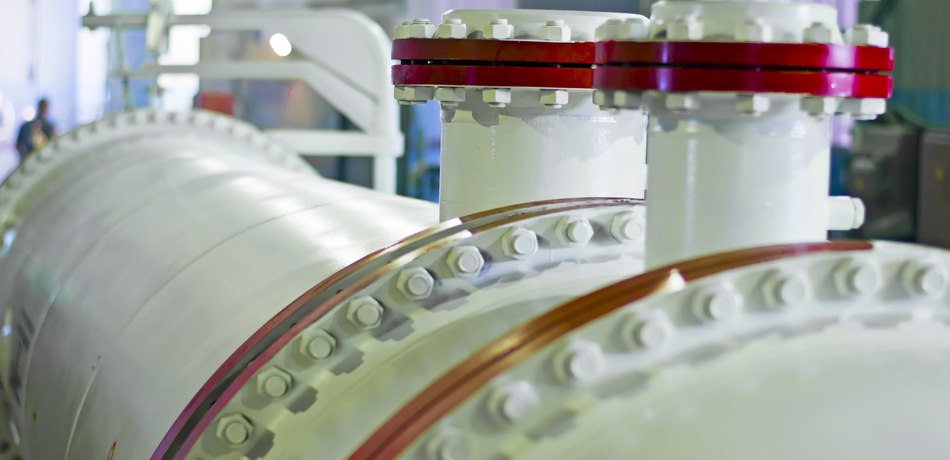

Low-alloy wire electrode for GMA (MIG/MAG) welding of Cr-Mo alloyed creep resistant boiler and pipe steels subjected to operating temperatures up to 570°C. Contains high level of deoxidizing (Mn and Si) elements to control porosity during welding. Welds are of X-ray quality. Also suitable for joining C-Mn steels to be postweld heat treated. Observe directions as to pre and post weld heat treatment of base material. CO2 or mixed shielding gases can be used depending on the thickness of the base metal. A thin and homogeneous copper coating increases electrical conductivity and protects the wire from rusting.

Typical Chemical Features of the Welding Wire

Type of AnalysisCSiMnCrMo
Welding Wire0.090.550.551.350,50

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As weldedM216007202120°C → 90
Isıl İşlem Sonrası (620°C 1 Saat)M215706702320°C → 100

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - M21 (%82 Ar + %18 CO2) .

Application Information

Welding Positions :
Mg 211A Kaynak Pozisyonu Mg 211A Kaynak Pozisyonu Mg 211A Kaynak Pozisyonu Mg 211A Kaynak Pozisyonu Mg 211A Kaynak Pozisyonu Mg 211A Kaynak Pozisyonu Mg 211A Kaynak Pozisyonu

Polarity:

Mg 211A Kutuplama

Protection Gas:

M20 M21 C1

Welding Parameters & Efficiency :

Diameter (mm)
0.80
1.00
1.20

Packaging Information

Product CodeDiameter (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
22003BJAM20.8015 kg15.70115.70Wire Basket Spool (K300MS)
22003DJAM21.0015 kg15.70115.70Wire Basket Spool (K300MS)
22003EJAM21.2015 kg15.70115.70Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
