MINICUT

Products :

GENERAL FEATURES

TECHNICAL SPECIFICATIONS

Accessories

DOCUMENTS

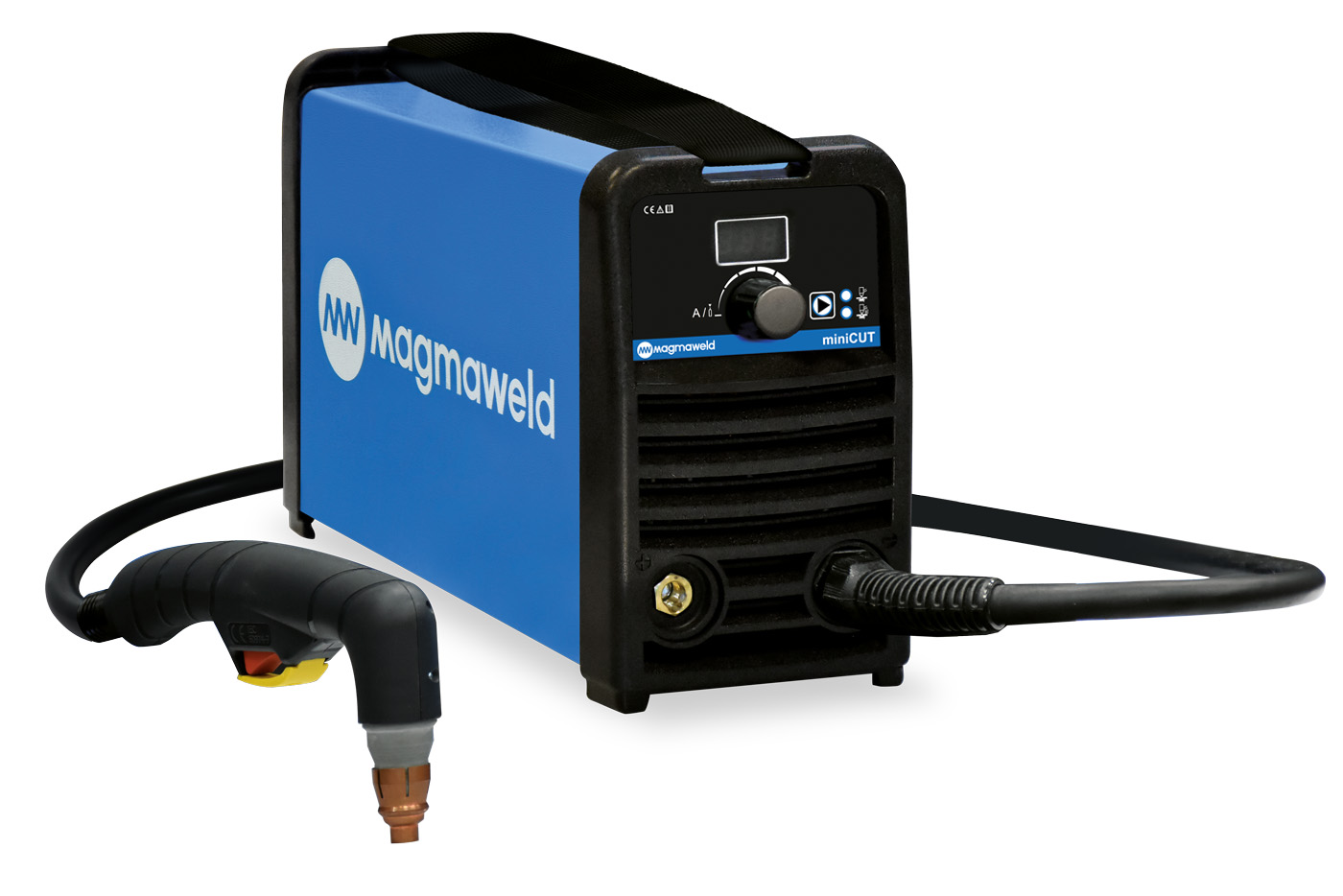

Plasma cutting machine with inverter technology
Excellent cutting performance with all types of metal with its advanced design
Maximum cutting capacity of 10 mm in high precise without loss of performance in all metal types, including aluminum and stainless
Different trigger modes that provide convenience to the user
Faster and cleaner cutting performance compared to oxyfuel
Manual adjustment for optimum gas pressure
The smallest & the lightest of its product family,it can easily be carried.
Easy setting and monitoring with user friendly interface
More uptime and maximum performance with strong torches and consumables
Save time with more precise and smoother cutting
Impact resistant, robust, reinforced steel body
Easy mobility with its ergonomic structure
No performance loss due to mains voltage fluctuations and ambient temperature changes

Technical Specifications	Data	Unit
Mains Voltage (1Ph)	230	V
Input Power	5,18	kVA
Power Source Efficiency	83,13
Output Current	15 - 30	A
IDLE State Power Consumption	18,25
Open Circuit Voltage	280 (Max)	V
Recommended Cutting Thickness	8	mm
Dimensions (l x w x h)	402 x 121 x 200	mm
Weight (Net)	7,5	kg
Plasma Gas	Temiz, kuru, yağsız hava veya N2
Required Work Pressure	5 bar - 130 lt/min
Protection Class	IP23S
